GEF3250MA.R980

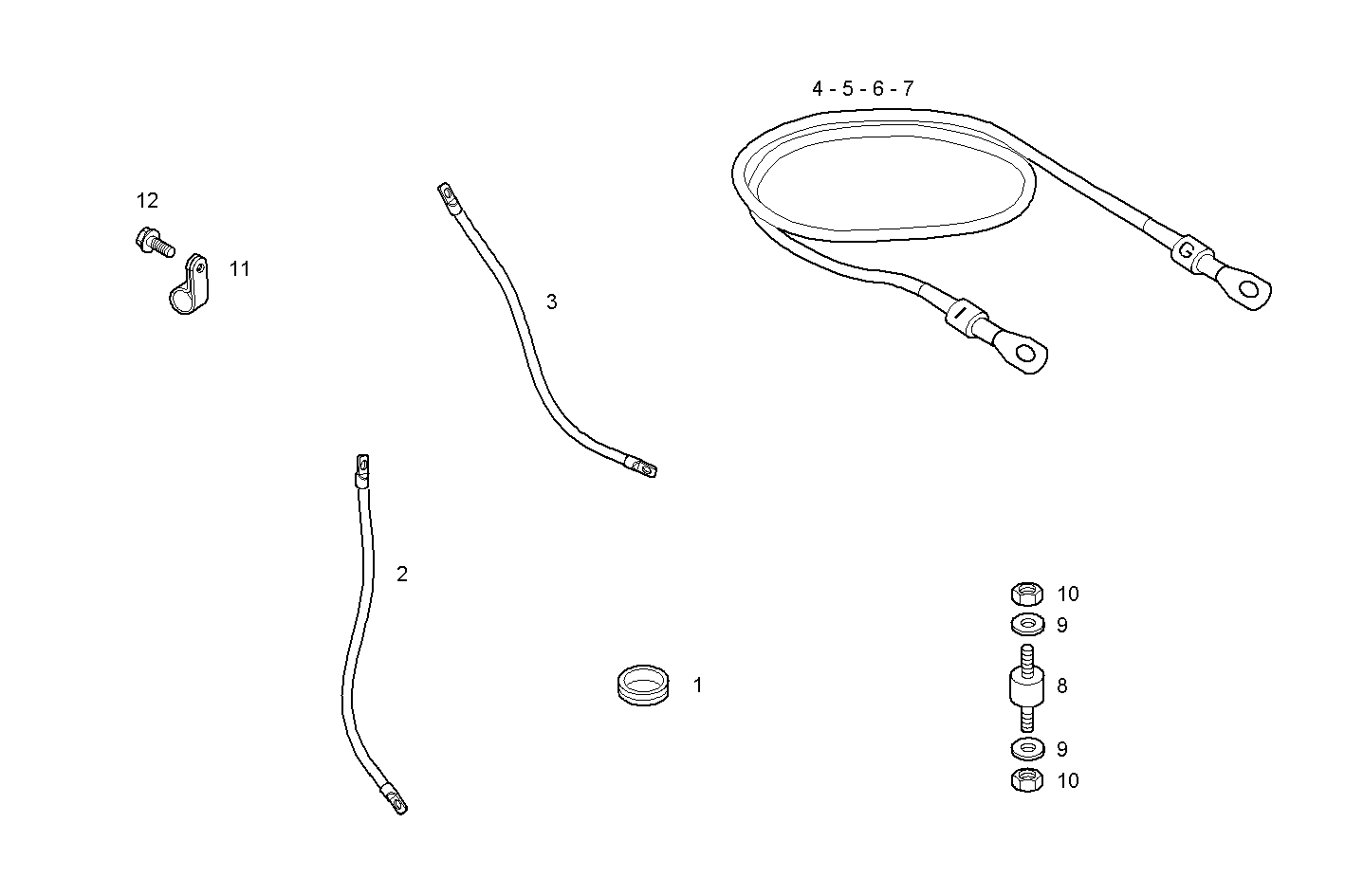

A62705022 POWER CABLES - for Stamford
| Item | Part number | Description |
|---|---|---|
| 1 | 8113214 | INSULATING RING |
| 2 | 8110852 | EARTH WIRE |
| 3 | 503115140 | WIRE/CABLE L=650 mm.-yellow/green-Ø 16mm.-6 |
| 4 | 503115246 | WIRE/CABLE L=650 mm.-black-Ø 35mm.-N-6 |
| 5 | 503115247 | WIRE/CABLE L=650 mm.-black-Ø 35mm.-W-6 |
| 6 | 503115248 | WIRE/CABLE L=650 mm.-black-Ø 35mm.-V-6 |
| 7 | 503115249 | WIRE/CABLE L=650 mm.-black-Ø 35mm.-U-6 |
| 8 | 4910949 | RUBBER LUG |
| 9 | 17088474 | WASHER Ø6X12 MM |
| 10 | 17037821 | HEXAGON NUT M6X1 |
| 11 | 17314990 | FASTENING BRACKET |
| 12 | 16603725 | HEXAGON BOLT M6X20 MM |
