GEF3250MA.R980

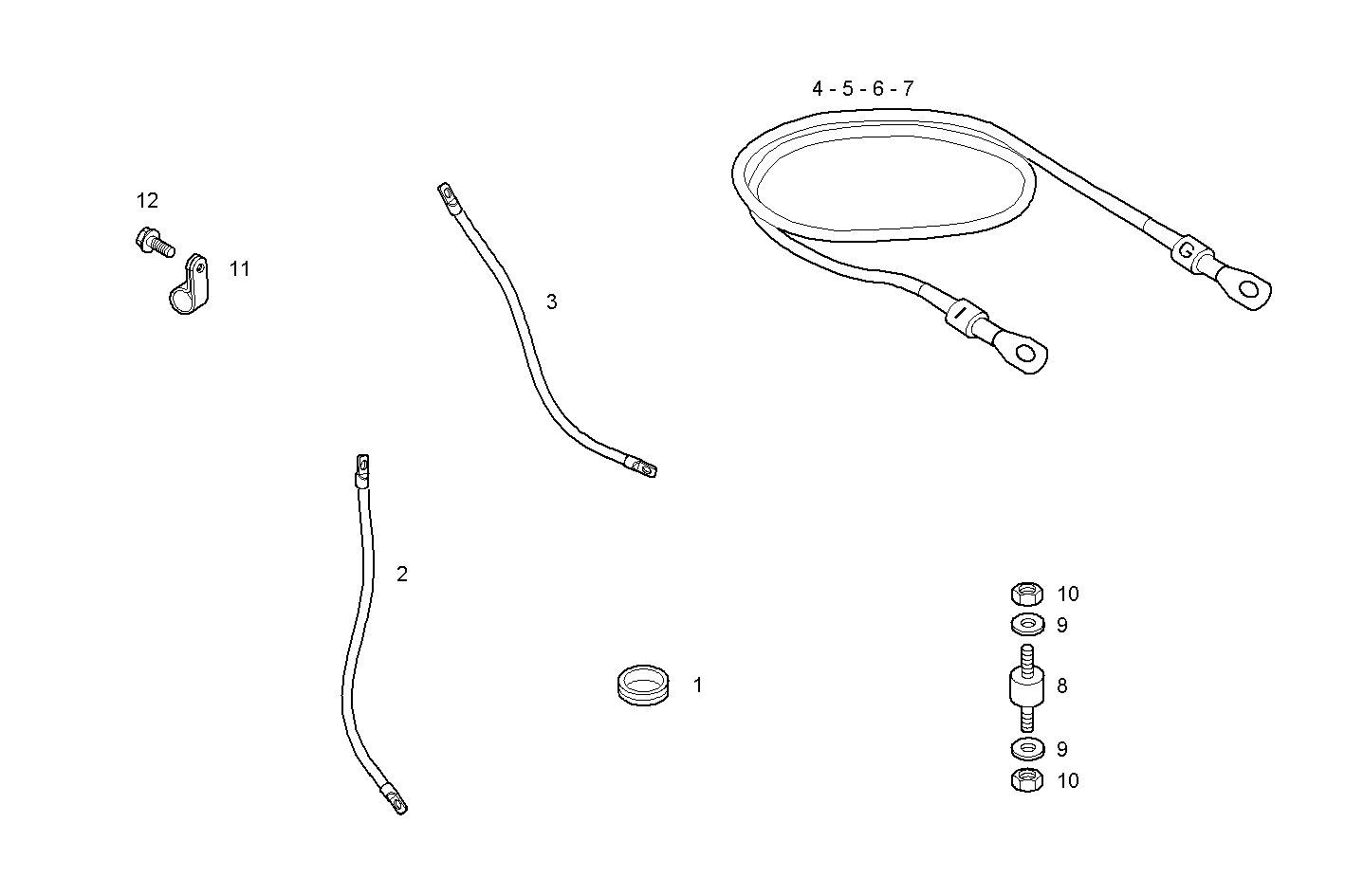

A62725031 POWER CABLES - for Marelli
Item | Part number | Description |
---|---|---|
1 | 8113214 | INSULATING RING |
2 | 8110852 | EARTH WIRE |
3 | 503114484 | WIRE/CABLE L=650 mm.-yellow/green-Ø 10mm.-8 |
4 | 503112775 | WIRE/CABLE |
5 | 503112776 | WIRE/CABLE |
6 | 503112777 | WIRE/CABLE |
7 | 503112778 | WIRE/CABLE |
8 | 4910949 | RUBBER LUG |
9 | 17088474 | WASHER Ø6X12 MM |
10 | 17037821 | HEXAGON NUT M6X1 |
11 | 17314990 | FASTENING BRACKET |
12 | 16603725 | HEXAGON BOLT M6X20 MM |
