GENEF100M.R980

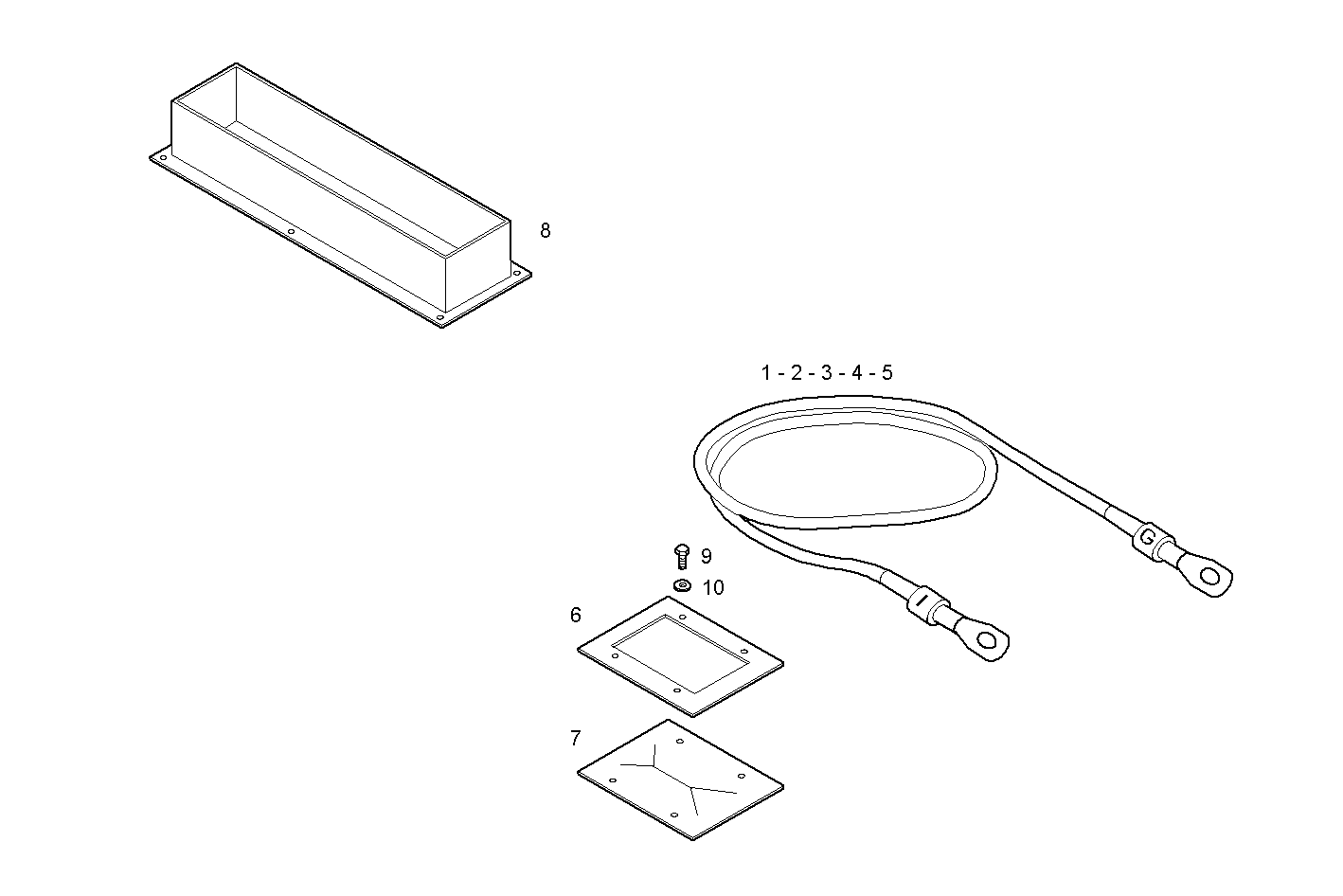

A62735013 POWER CABLES - for Mecc-Alte
| Item | Part number | Description |
|---|---|---|
| 1 | 503113233 | WIRE/CABLE L=1000 mm. - black - Ø 50mm. - U |
| 2 | 503113234 | WIRE/CABLE L=1000 mm. - black - Ø 50mm. - V |
| 3 | 503113235 | WIRE/CABLE L=1000 mm. - black - Ø 50mm. - W |
| 4 | 503113236 | WIRE/CABLE L=1000 mm. - black - Ø 50mm. - N |
| 5 | 503113242 | WIRE/CABLE L=1000 mm. - yellow/green - Ø 25mm. |
| 6 | 503111035 | COVER |
| 7 | 503111036 | GROMMET |
| 8 | 503112192 | PROTECTION |
| 9 | 16609724 | HEXAGON BOLT |
| 10 | 17088474 | WASHER Ø6X12 MM |
