GENEF100MA.R980

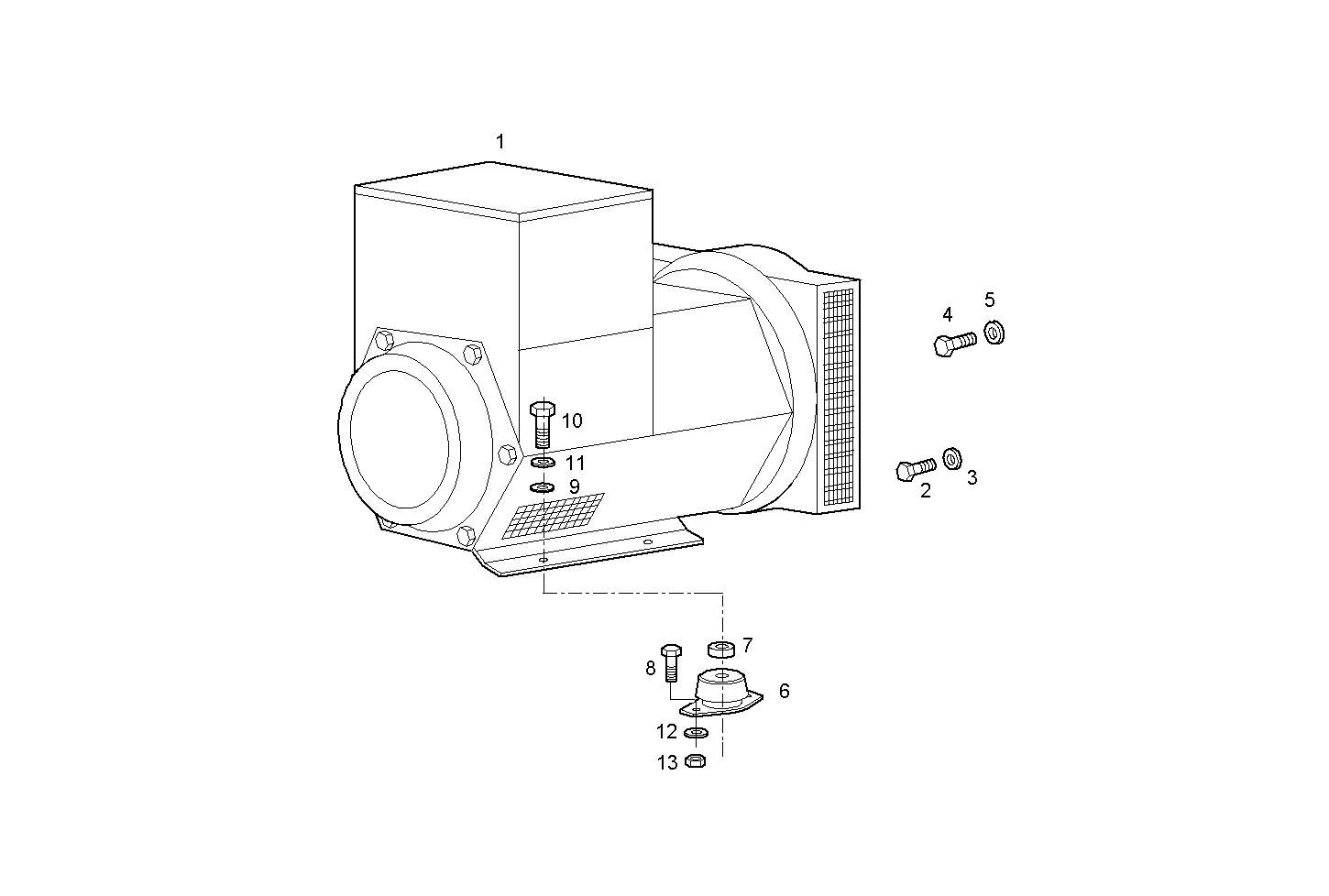

A37015004 ELECTRIC MACHINE - STAMFORD
| Item | Part number | Description |
|---|---|---|
| 1 | 503113049 | ELECTRIC MACHINE Stamford |
| 2 | 16607924 | HEXAGON BOLT M10X1,5X40 MM |
| 3 | 17090174 | SPRING WASHER Ø10X20 MM |
| 4 | 16619124 | SCREW M10X22 MM |
| 5 | 17798374 | SPRING WASHER Ø10,2X18,1 MM |
| 6 | 503111672 | RUBBER LUG |
| 7 | 503112944 | SPACING BAR |
| 8 | 16607734 | HEXAGON BOLT M10X30 MM |
| 9 | 17095724 | WASHER Ø16 MM |
| 10 | 16614824 | SCREW M16X50 |
| 11 | 17092174 | SPRING WASHER Ø16X32X3,4 |
| 12 | 17090474 | SPRING WASHER Ø10X27 MM SP=2,5 |
| 13 | 17038125 | NUT M10 |
