GENEF125M.A012

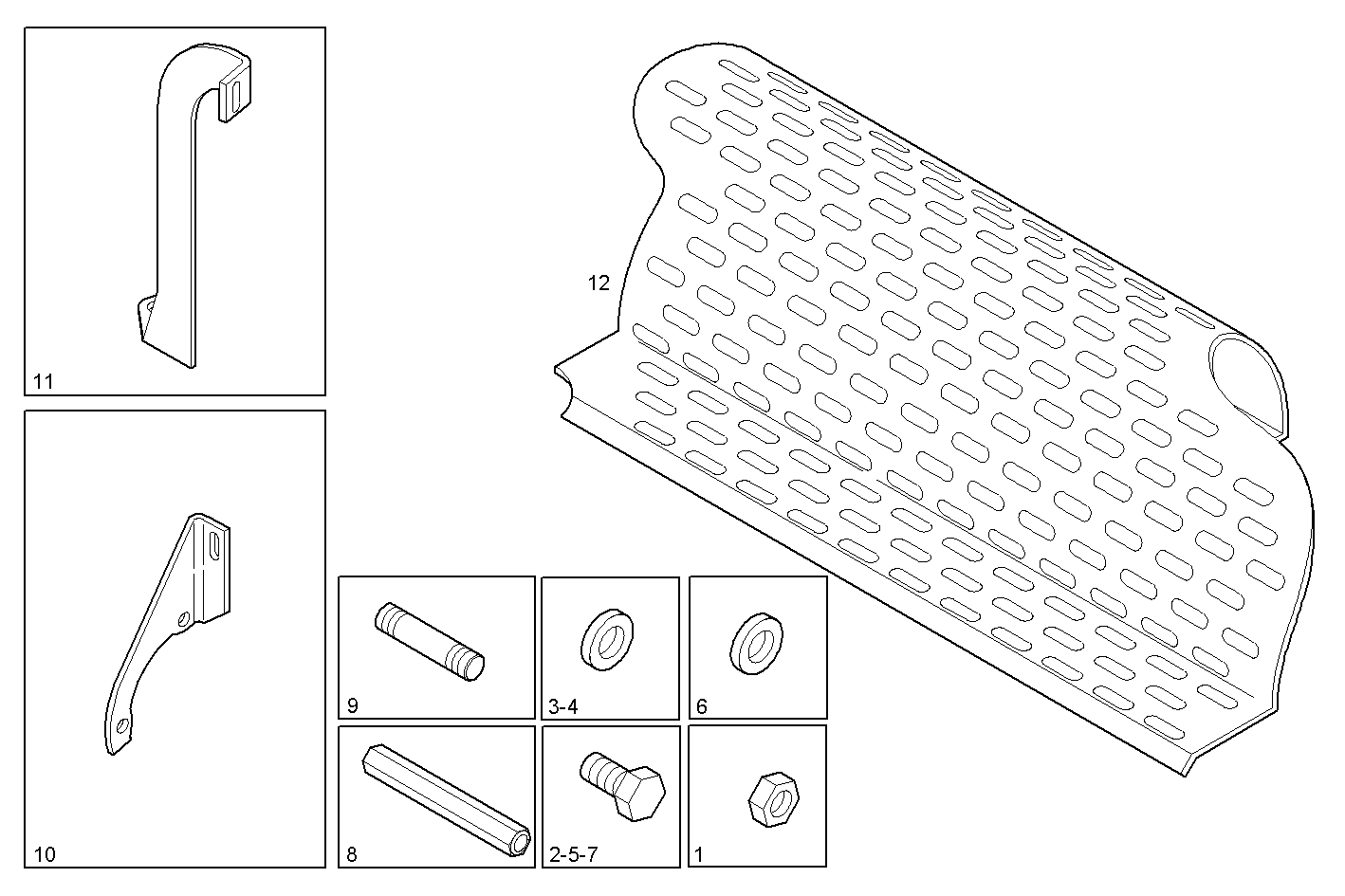

A48505006 GROUP SHIELDS
| Item | Part number | Description |
|---|---|---|
| 1 | 17037821 | HEXAGON NUT M6X1 |
| 2 | 16603624 | HEXAGON BOLT M6X16 MM (8.8) |
| 3 | 17088474 | WASHER Ø6X12 MM |
| 4 | 17094704 | WASHER Ø6X12X1,6 MM |
| 5 | 16607524 | HEXAGON BOLT M10X1,5X20 MM (8.8) |
| 6 | 17090174 | SPRING WASHER Ø10X20 MM |
| 7 | 98490833 | HEXAGON BOLT M8X1,25X30 MM |
| 8 | 503113276 | SPACING BAR |
| 9 | 4895219 | STUD |
| 10 | 503113275 | RETAINER |
| 11 | 503113274 | RETAINER |
| 12 | 503113279 | PROTECTION |
