GENEF125M.A71M

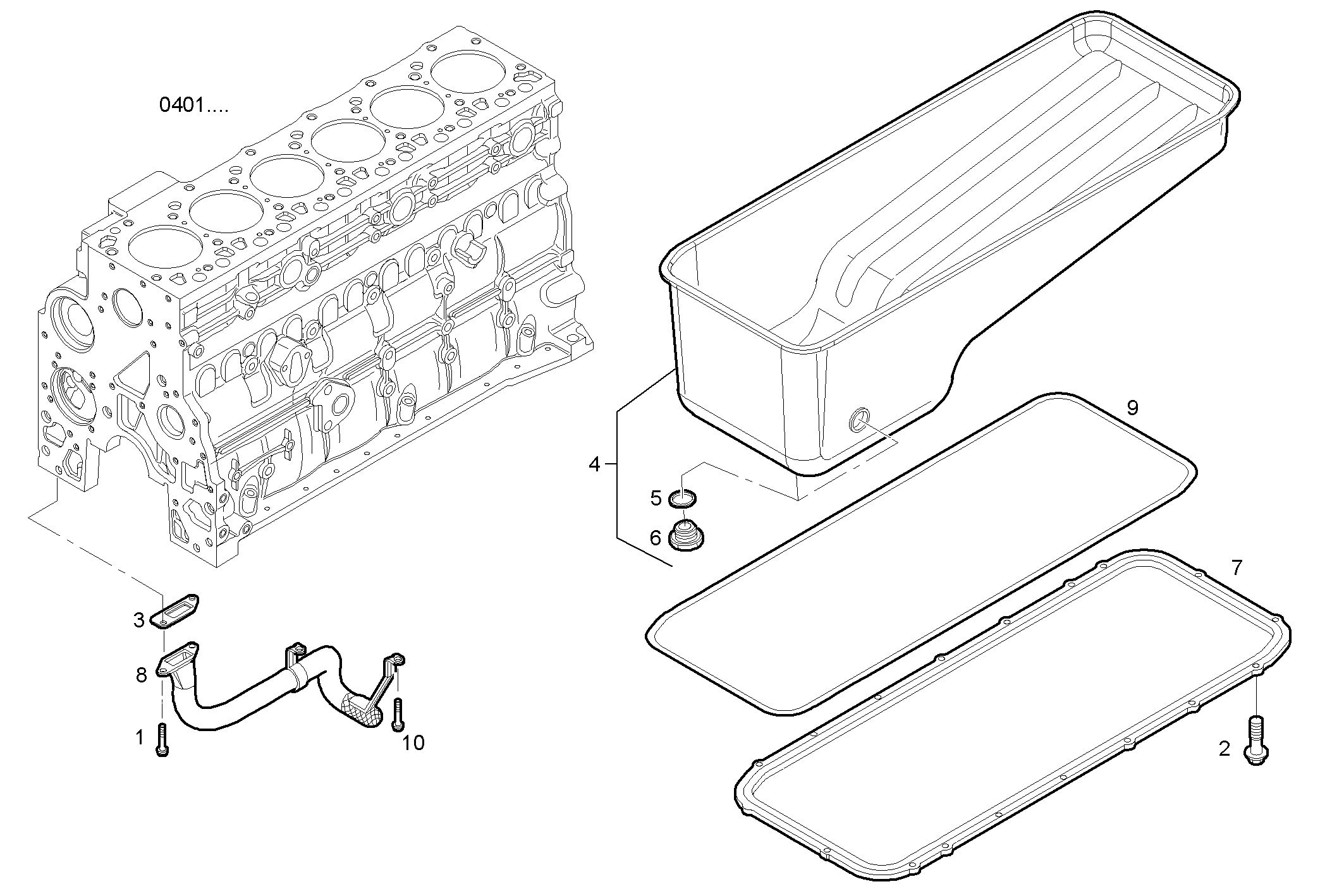

0420.176 OIL SUMP
Item | Part number | Description |
---|---|---|
1 | 16673635 | HEXAGON BOLT M8X1.25X20 |
2 | 4899091 | HEXAGON BOLT |
3 | 4898301 | FLAT ENGINE GASKET |
4 | 4897875 | OIL SUMP ASSY |
5 | 17282280 | O-RING Ø2,62X23,47 MM |
6 | 4894139 | THREADED PLUG M22X1,5 |
7 | 4897858 | SPACING BAR |
8 | 504082288 | SUCTION STRAINER |
9 | 4897861 | OIL SUMP GASKET |
10 | 18139424 | HEXAGON BOLT M10X20 MM |
