GENEF130M.1R980

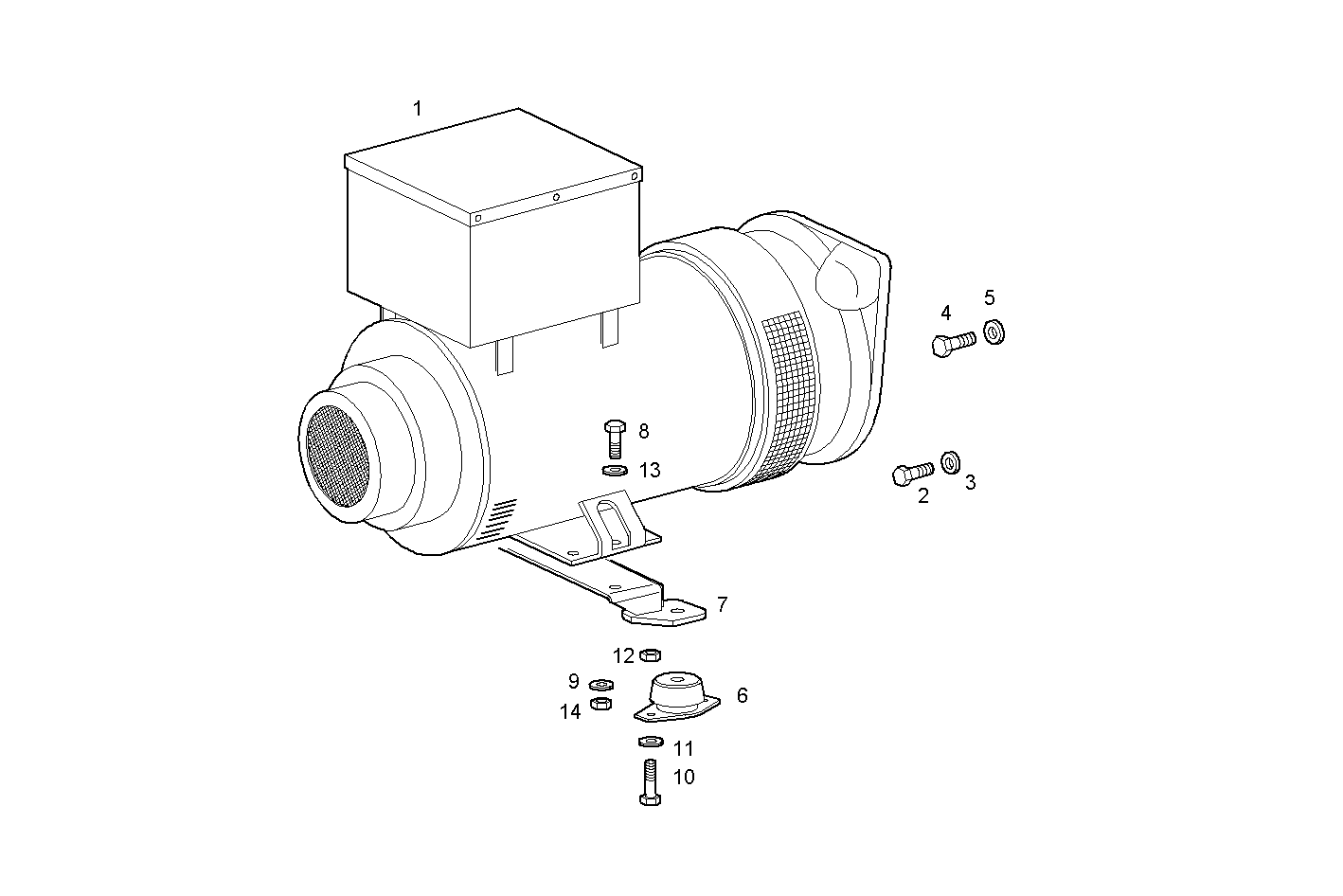

A37215006 ELECTRIC MACHINE - MARELLI
Item | Part number | Description |
---|---|---|
1 | 503112622 | ELECTRIC MACHINE MJB225LA4 |
2 | 16607924 | HEXAGON BOLT M10X1,5X40 MM |
3 | 17090174 | SPRING WASHER Ø10X20 MM |
4 | 16619124 | SCREW M10X22 MM |
5 | 17798374 | SPRING WASHER Ø10,2X18,1 MM |
6 | 4911960 | RUBBER PAD |
7 | 503112623 | TIE |
8 | 16614624 | HEXAGON BOLT M16X40 MM |
9 | 17092174 | SPRING WASHER Ø16X32X3,4 |
10 | 16607734 | HEXAGON BOLT M10X30 MM |
11 | 17090474 | SPRING WASHER Ø10X27 MM SP=2,5 |
12 | 17038125 | NUT M10 |
13 | 17095724 | WASHER Ø16 MM |
14 | 17038925 | NUT M16 |
