GENEF180E.R980

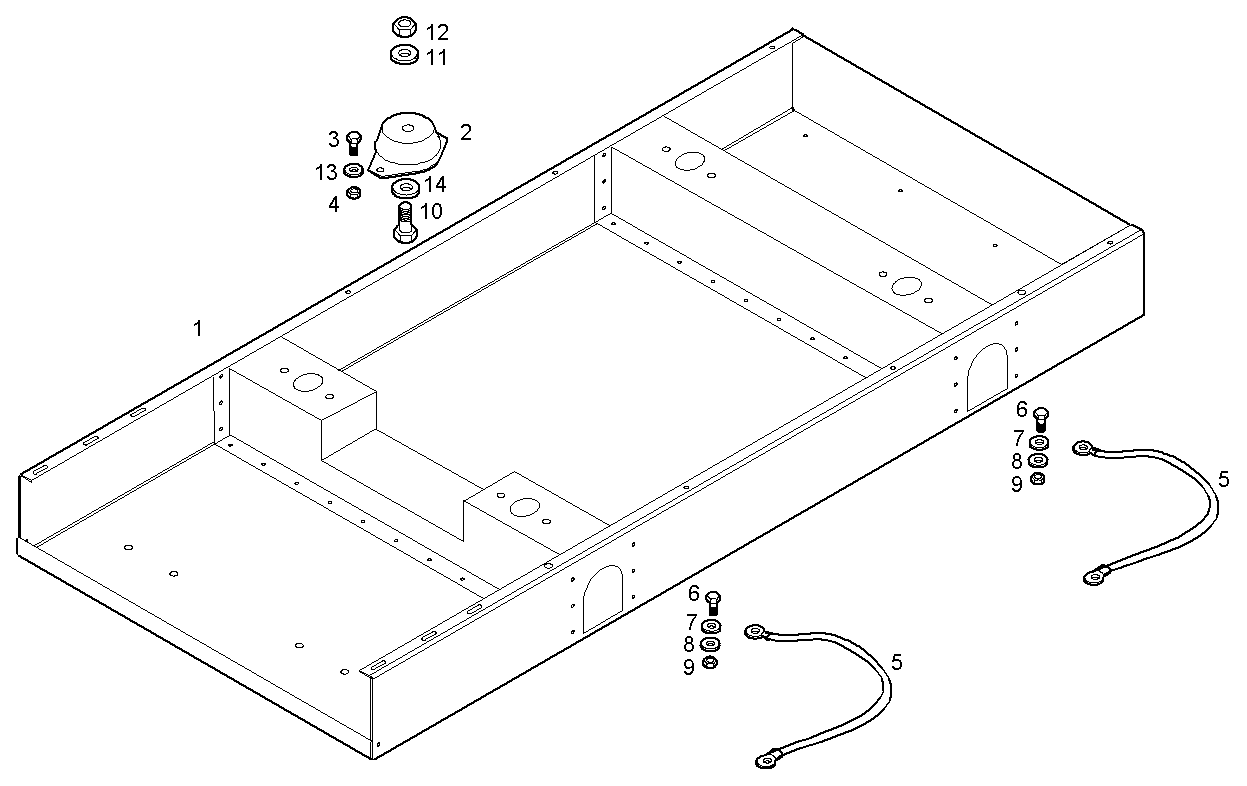

A36105001 SUBBASE FOR GENERATOR UNIT

Iveco/FPT SUBBASE FOR GENERATOR UNIT

Item Part number Description
1 504084411 SUBBSAE-SUPPORT FRAME
2 8016784 RUBBER PAD
3 16607625 SCREW M10X25
4 17038125 NUT M10
5 8031723 EARTH WIRE L=250 MM - FOR SEA WATER ADAPT.
6 16609725 HEXAGON BOLT M6X14 MM
7 17094724 WASHER Ø6X12 MM
8 17710074 WASHER Ø6X11 MM
9 17037821 HEXAGON NUT M6X1
10 16614624 HEXAGON BOLT M16X40 MM
11 17092174 SPRING WASHER Ø16X32X3,4
12 17038925 NUT M16
13 17090474 SPRING WASHER Ø10X27 MM SP=2,5
14 17095724 WASHER Ø16 MM
