GENEF180E.R980

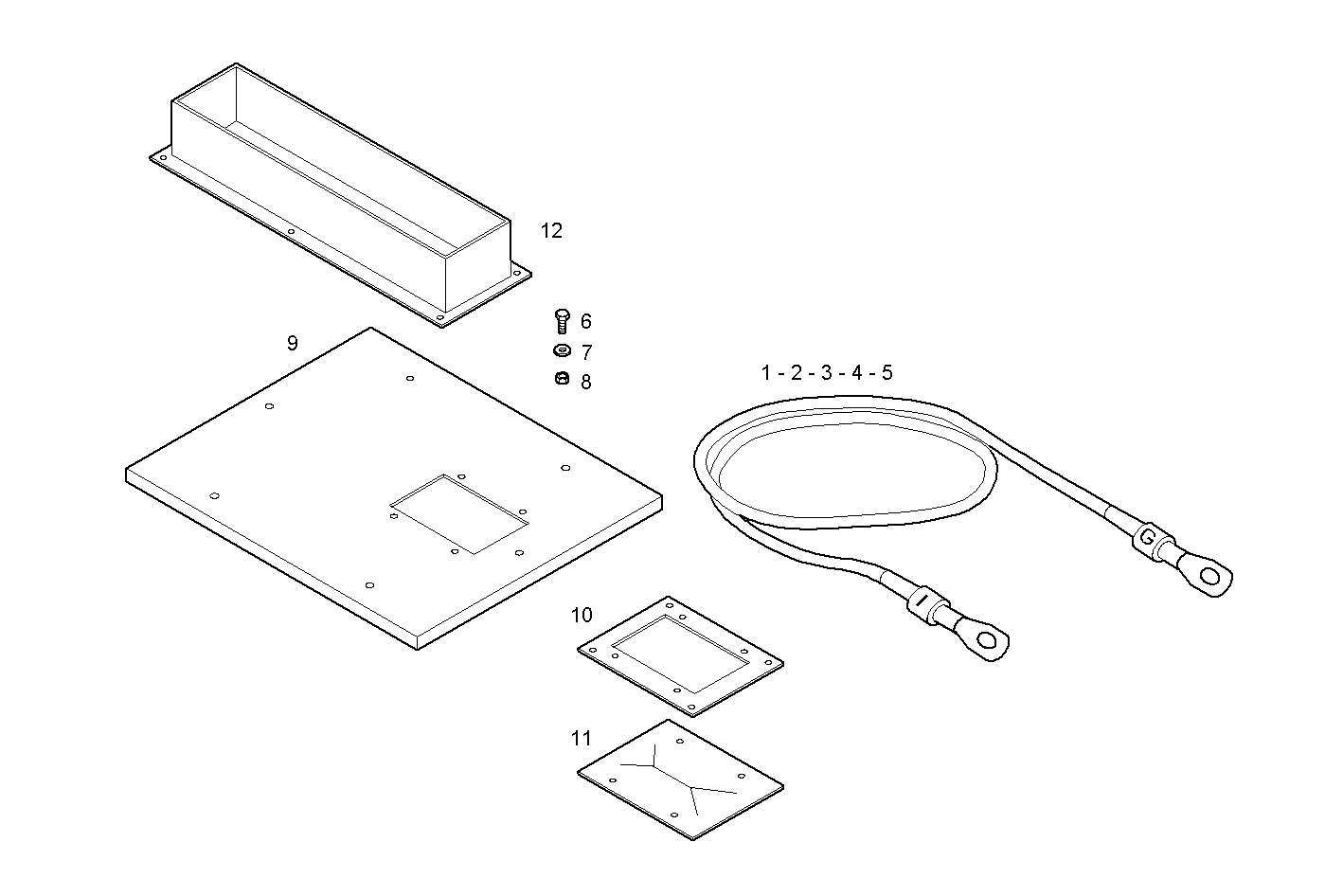

A62705006 POWER CABLES - for Stamford [From # 15/12/04] [From # 15/12/04]
Item | Part number | Description |
---|---|---|
1 | 503112377 | WIRE/CABLE |
2 | 503112376 | WIRE/CABLE |
3 | 503112378 | WIRE/CABLE |
4 | 503112375 | WIRE/CABLE |
5 | 503111455 | WIRE/CABLE L=900 MM |
6 | 16609724 | HEXAGON BOLT |
7 | 17088474 | WASHER Ø6X12 MM |
8 | 17037821 | HEXAGON NUT M6X1 |
9 | 503111035 | COVER |
10 | 503112196 | EL.MACHINE COVER |
11 | 503111036 | GROMMET |
12 | 503112194 | PROTECTION |
