GENEF180E.R980

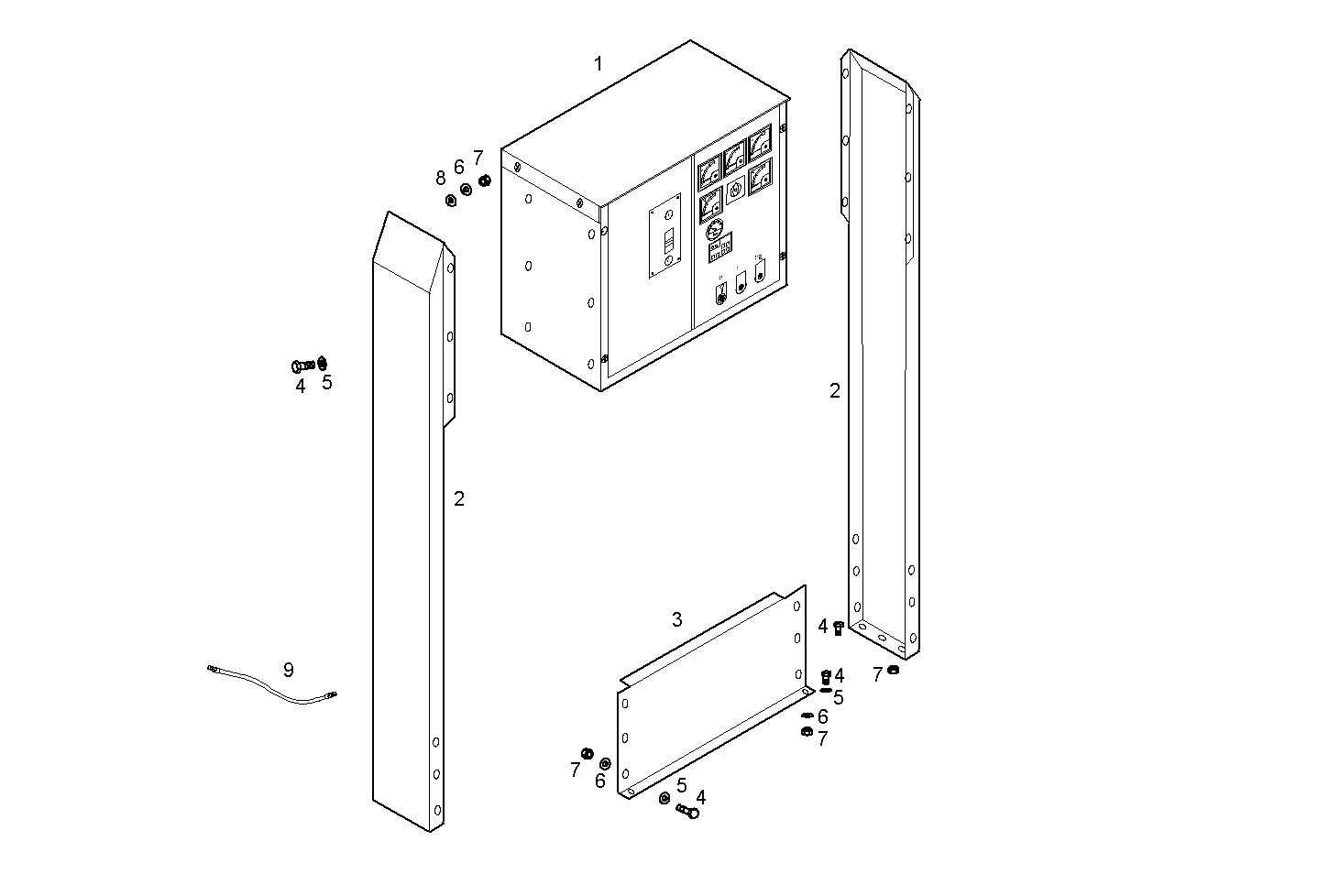

A64005002 MANUAL CONTROL BOARD - 630A - 230V - 60Hz - 3P
Item | Part number | Description |
---|---|---|
1 | 503111438 | CONTROL BOARD ASSY MANUAL |
2 | 504080733 | SUPPORT |
3 | 503110830 | SUPPORT |
4 | 16605524 | HEXAGON BOLT M8X20 MM |
5 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
6 | 17094914 | WASHER 8x16 |
7 | 17037925 | HEXAGON NUT M8X1,25 |
8 | 17710174 | WASHER Ø6X11 MM |
9 | 8006993 | EARTH WIRE |
