GENEF200E.A551

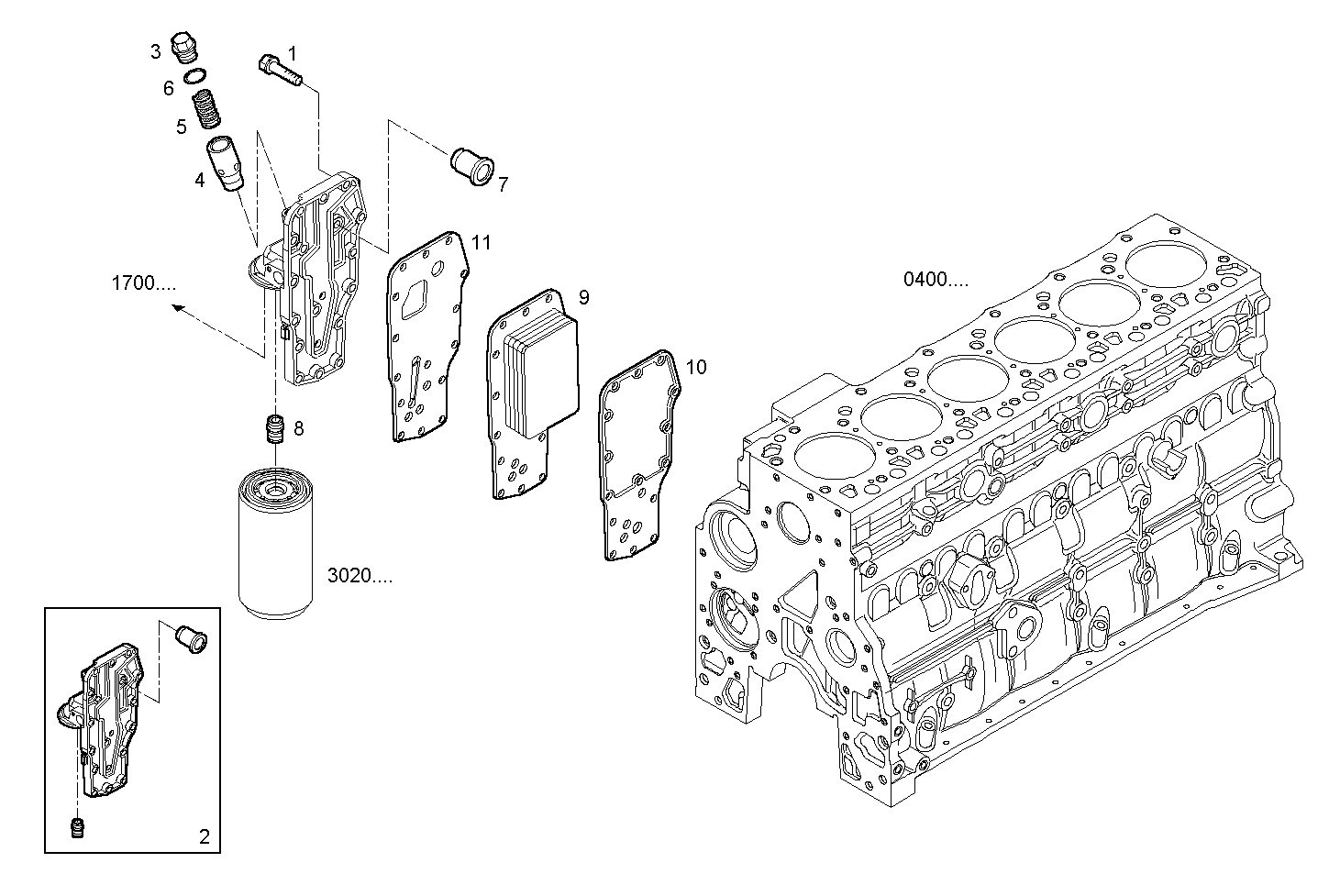

3100.098 OIL - WATER HEAT EXCHANGER
Item | Part number | Description |
---|---|---|
1 | 4899019 | HEXAGON BOLT M8X35 MM |
2 | 4899566 | HEAT EXCHANGER ASSY |
3 | 4895043 | THREADED PLUG |
4 | 4896404 | VALVE HOUSING |
5 | 4895045 | VALVE SPRING |
6 | 4899035 | O-RING |
7 | 4896410 | VALVE |
8 | 4893391 | THREADED UNION |
9 | 4896407 | OIL COOLER |
10 | 4895742 | FLAT ENGINE GASKET |
11 | 4896409 | FLAT ENGINE GASKET |
