GENEF200E.A71M

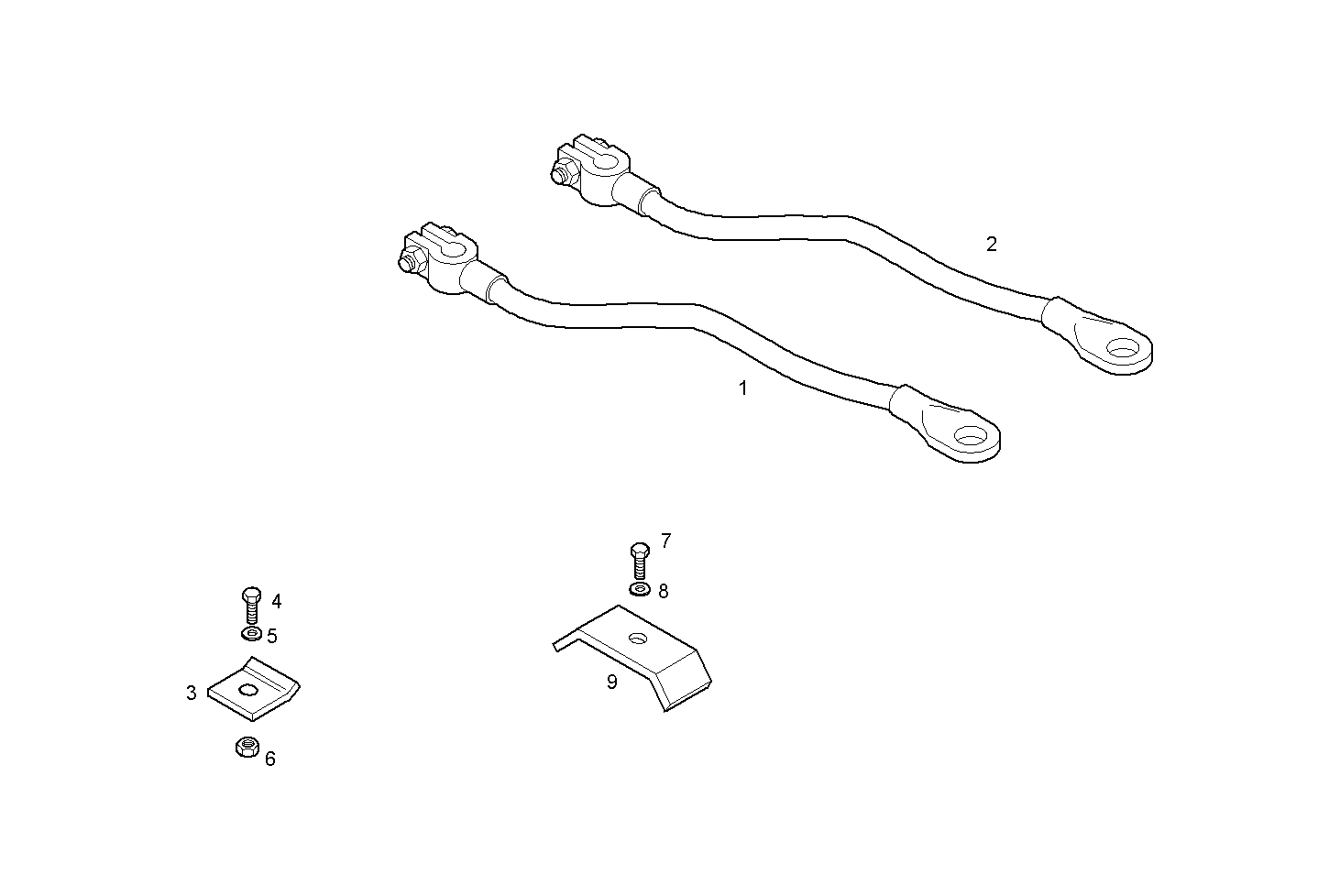

A30705000 STARTER BATTERY

Iveco/FPT STARTER BATTERY

Item Part number Description
1 503110871 WIRE/CABLE (-)
2 4930995 WIRE/CABLE (+)
3 503110903 FASTENING BRACKET
4 16605424 SCREW M8X16 MM (8.8)
5 17089574 WASHER Ø8X16 MM
6 17037925 HEXAGON NUT M8X1,25
7 16607624 SCREW M10X25
8 17090474 SPRING WASHER Ø10X27 MM SP=2,5
9 503111906 FASTENING BRACKET
