GENEF200E.A71M

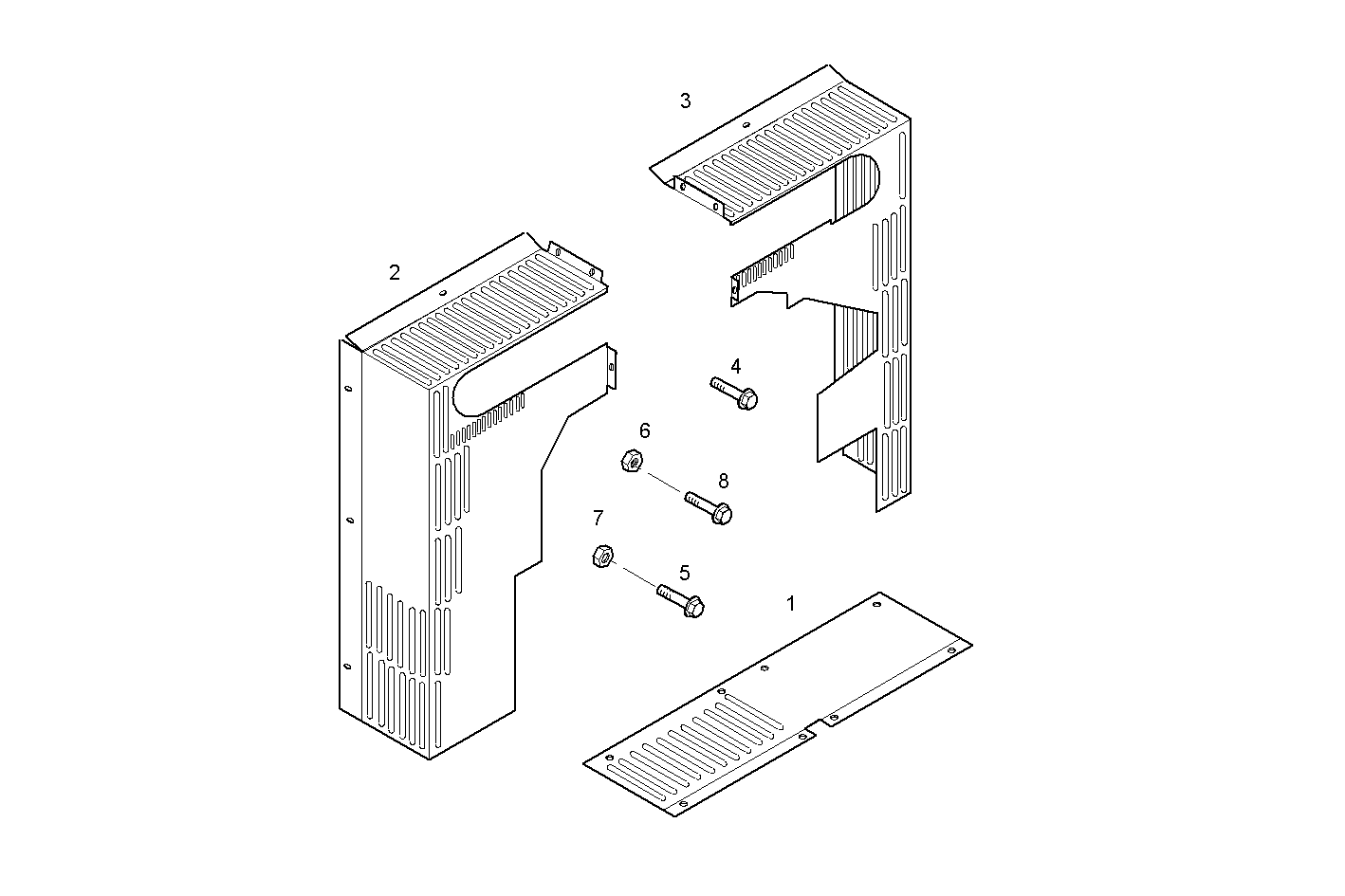

A48010509 GUARD - for fan and belts [FROM # 02-09-04] [FROM # 02-09-04]
Item | Part number | Description |
---|---|---|
1 | 8039610 | PROTECTION |
2 | 8039609 | PROTECTION |
3 | 8039608 | PROTECTION |
4 | 16586225 | HEXAGON BOLT M8X1,25X16 MM |
5 | 18137825 | HEXAGON BOLT M6X16 |
6 | 17044725 | HEXAGON NUT M8 |
7 | 17044625 | HEXAGON NUT M6 |
8 | 16586224 | HEXAGON BOLT M8X1,25X16 MM |
