GENEF200E.A72M

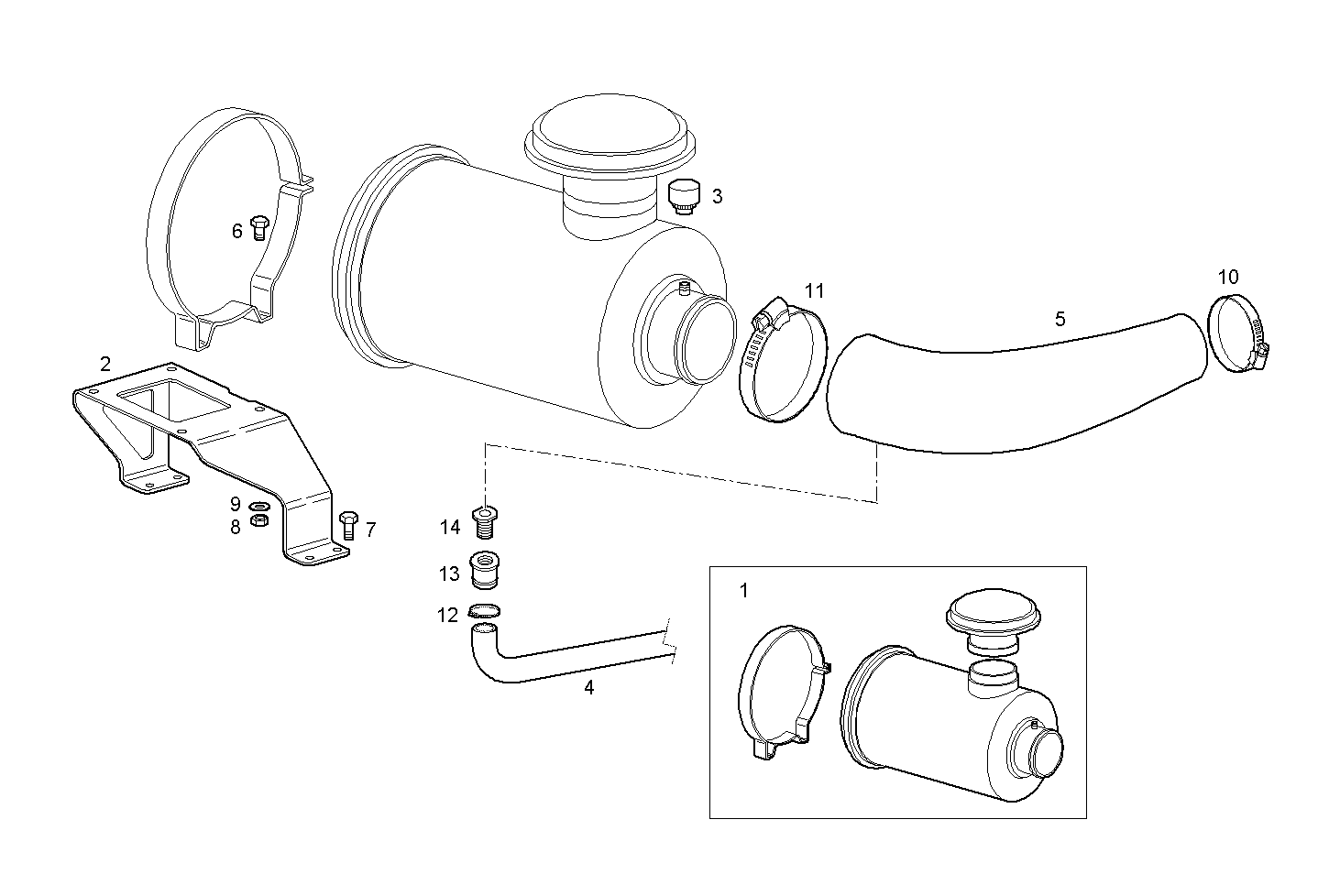

A21210503 AIR CLEANER

Iveco/FPT AIR CLEANER

Item Part number Description
1 8034193 AIR CLEANER VIRGIS-FL 12
2 8033841 FILTER SUPPORT
3 8027294 CHOCKED FILTER INDIC. MECHANICAL
4 8034455 RUBBER SLEEVE
5 8034043 FILTER HOSE
6 16607524 HEXAGON BOLT M10X1,5X20 MM (8.8)
7 16677735 HEXAGON BOLT M12X25 MM
8 17038131 HEXAGON NUT M10
9 17090174 SPRING WASHER Ø10X20 MM
10 17765491 CLIP Ø70/90 MM
11 17765791 CLIP DIA 130/150 [up to 10-93]
12 18088392 CLIP Ø16/25 MM
13 8015133 PIPE SOCKET
14 8015315 PIPE SOCKET
