GENEF200E.A72M

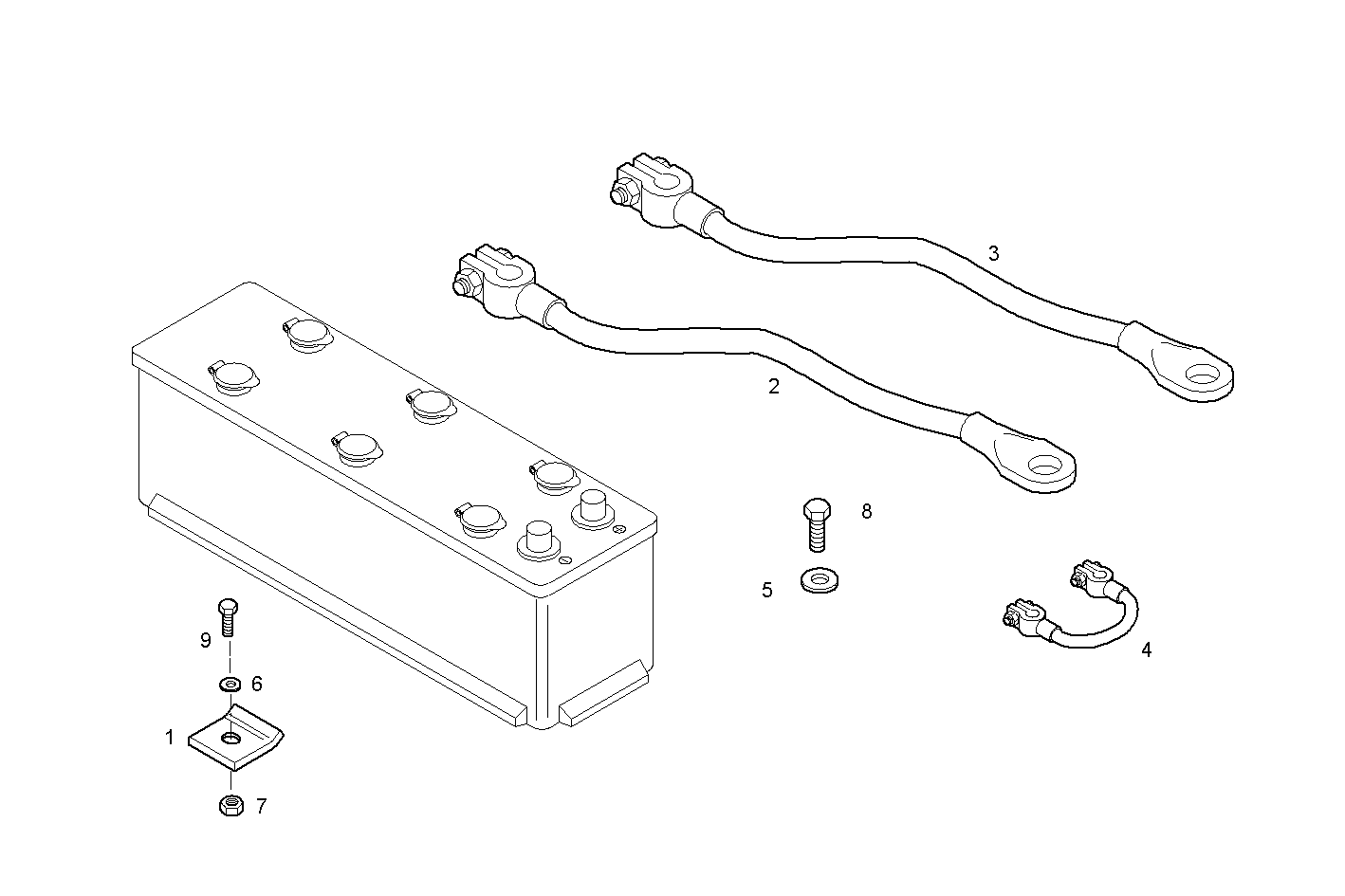

A30715000 STARTER BATTERY
| Item | Part number | Description |
|---|---|---|
| 1 | 503110903 | FASTENING BRACKET |
| 2 | 503110871 | WIRE/CABLE (-) |
| 3 | 4930995 | WIRE/CABLE (+) |
| 4 | 4930994 | WIRE/CABLE |
| 5 | 17090474 | SPRING WASHER Ø10X27 MM SP=2,5 |
| 6 | 17089574 | WASHER Ø8X16 MM |
| 7 | 17037925 | HEXAGON NUT M8X1,25 |
| 8 | 16607625 | SCREW M10X25 |
| 9 | 16605424 | SCREW M8X16 MM (8.8) |
