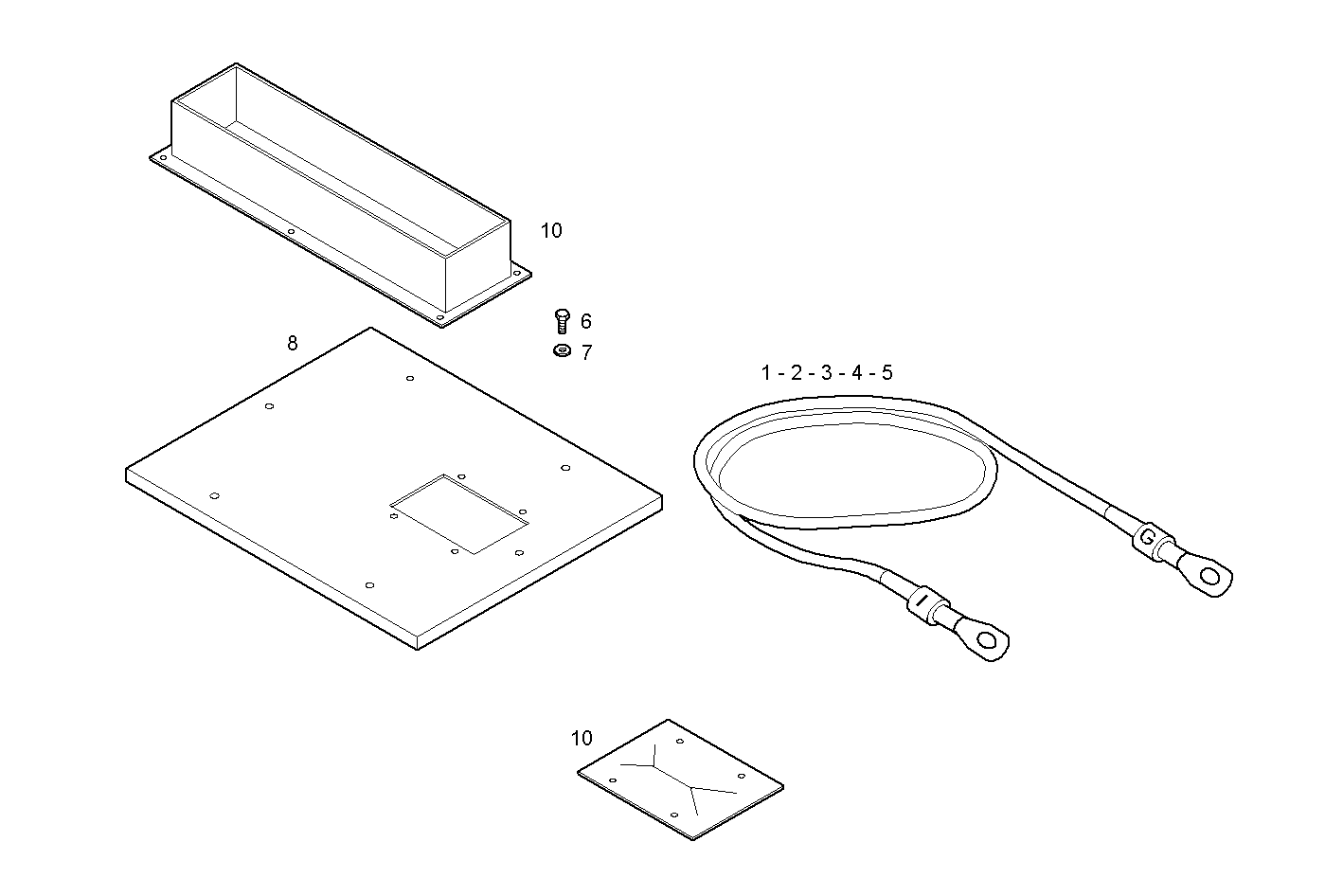

A62725004 POWER CABLES - for Marelli [From #17/11/04] [From #17/11/04]

Iveco/FPT POWER CABLES

Item Part number Description
1 503112405 WIRE/CABLE
2 503112404 WIRE/CABLE
3 503112403 WIRE/CABLE
4 503112402 WIRE/CABLE
5 503111629 WIRE/CABLE L=700 MM
6 16609724 HEXAGON BOLT
7 17088474 WASHER Ø6X12 MM
8 503111035 COVER
9 503111036 GROMMET
10 503112192 PROTECTION
