GENEF200E.R990

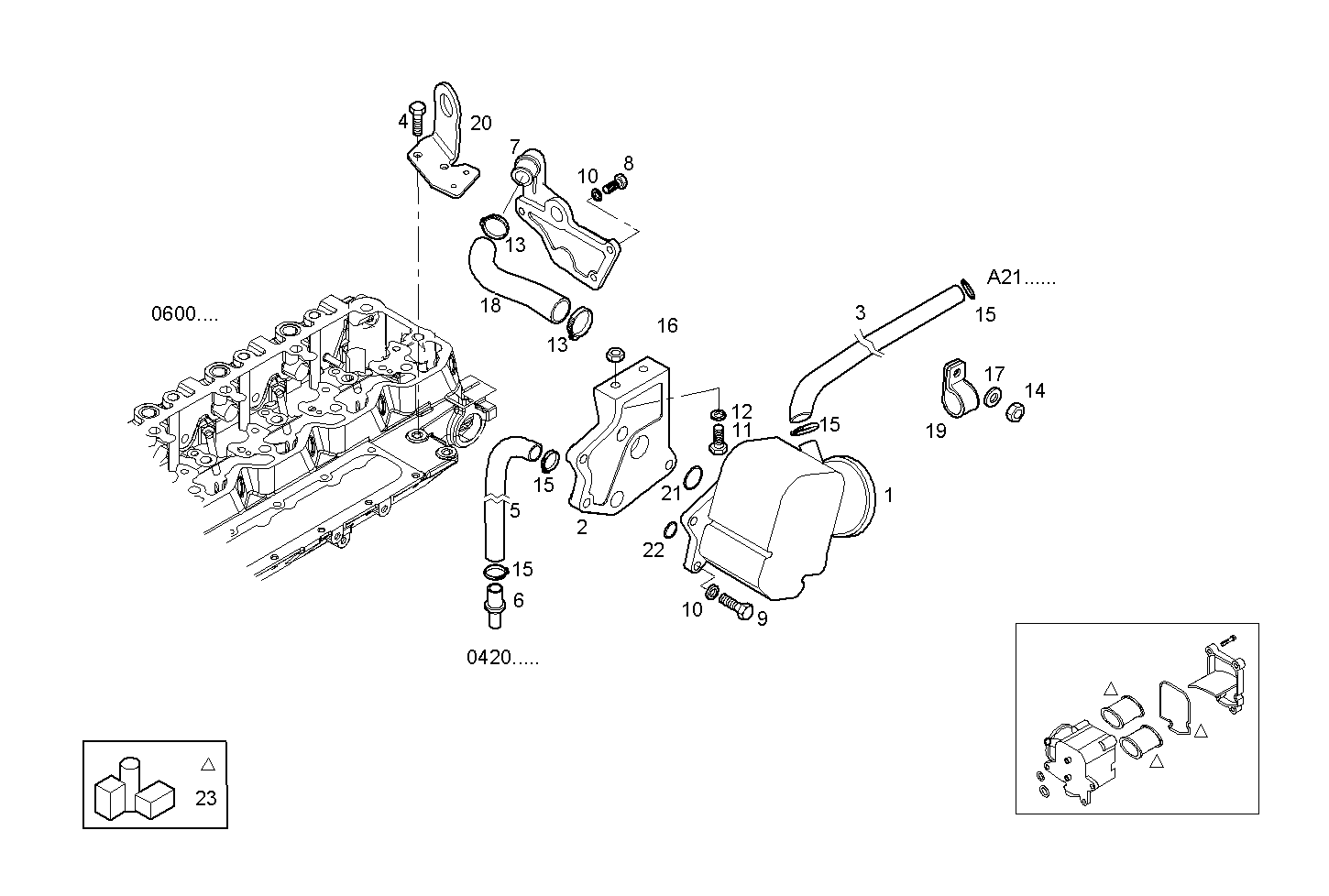

A02000501 ENGINE BREATHERS - remote [FROM 01-05-05] [FROM 01-05-05]

Iveco/FPT ENGINE BREATHERS

Item Part number Description
1 4892871 BREATHER ASSY
2 8032082 SUPPORT
3 8041474 RUBBER SLEEVE
4 16588025 HEXAGON BOLT M12X30 MM
5 8031995 WATER HOSE
6 8032079 PIPE SOCKET
7 8031993 COVER
8 16603734 HEXAGON BOLT M6X20 MM
9 10902633 HEXAGON BOLT M6X1X25 MM
10 17088474 WASHER Ø6X12 MM
11 16605734 HEXAGON BOLT M8X30 MM
12 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
13 18088593 CLIP 25x40
14 17037821 HEXAGON NUT M6X1
15 18088393 CLIP Ø16/25 MM
16 17037925 HEXAGON NUT M8X1,25
17 17089074 SPRING WASHER Ø6 MM
18 8041473 RUBBER SLEEVE
19 17311301 FASTENING BRACKET
20 8041472 HOOK
21 2830304 SEAL GASKET Ø18,68 MM SP=3,53 MM
22 4898372 O-RING Ø13,11 MM SP=2,62 MM
23 2992447 KIT for breather
