GENEF200EA.R990

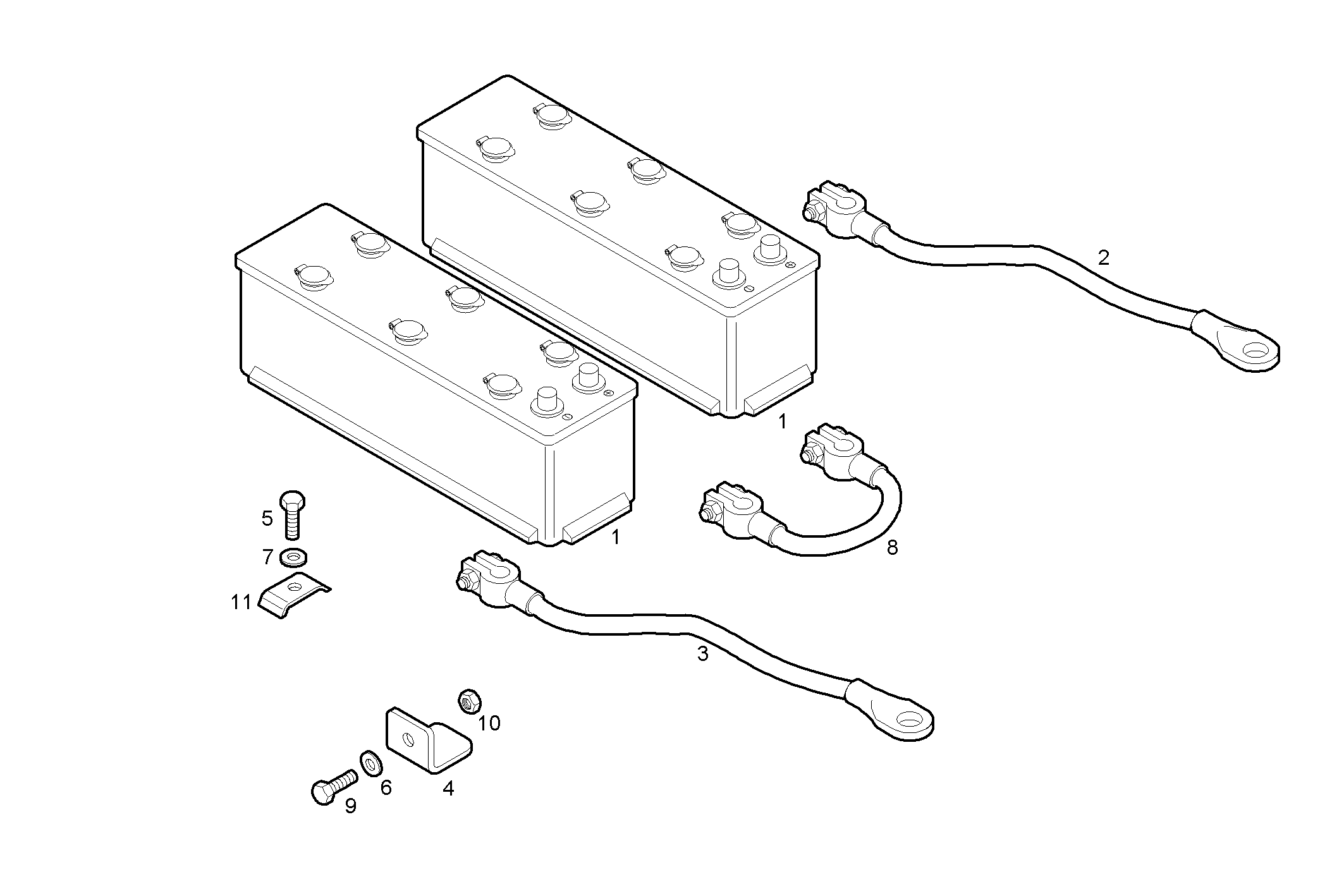

A30515001 STARTING BATTERY 24V
| Item | Part number | Description |
|---|---|---|
| 1 | 8022948 | BATTERY 12V |
| 2 | 4930995 | WIRE/CABLE (+) |
| 3 | 503110871 | WIRE/CABLE (-) |
| 4 | 503110903 | FASTENING BRACKET |
| 5 | 16607625 | SCREW M10X25 |
| 6 | 17089574 | WASHER Ø8X16 MM |
| 7 | 17090474 | SPRING WASHER Ø10X27 MM SP=2,5 |
| 8 | 4930994 | WIRE/CABLE |
| 9 | 16605424 | SCREW M8X16 MM (8.8) |
| 10 | 17037921 | HEXAGON NUT M8X1,25 |
| 11 | 503111906 | FASTENING BRACKET |
