GENEF200EA.R990

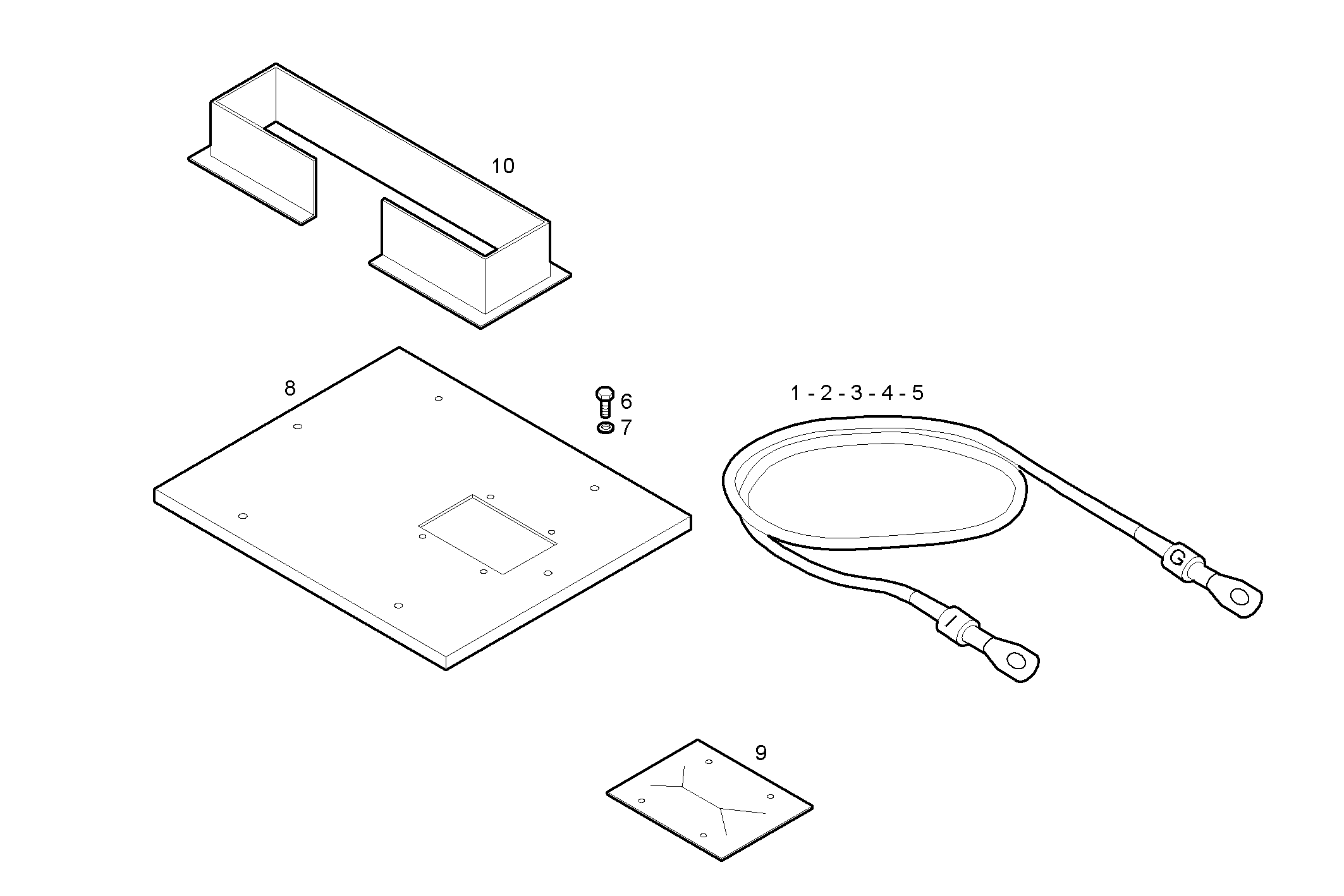

A62725028 POWER CABLES - for Marelli
| Item | Part number | Description |
|---|---|---|
| 1 | 503112405 | WIRE/CABLE |
| 2 | 503112404 | WIRE/CABLE |
| 3 | 503112403 | WIRE/CABLE |
| 4 | 503112402 | WIRE/CABLE |
| 5 | 503111629 | WIRE/CABLE L=700 MM |
| 6 | 16609725 | HEXAGON BOLT M6X14 MM |
| 7 | 17088474 | WASHER Ø6X12 MM |
| 8 | 503111035 | COVER |
| 9 | 503111036 | GROMMET |
| 10 | 503114012 | PROTECTION |
