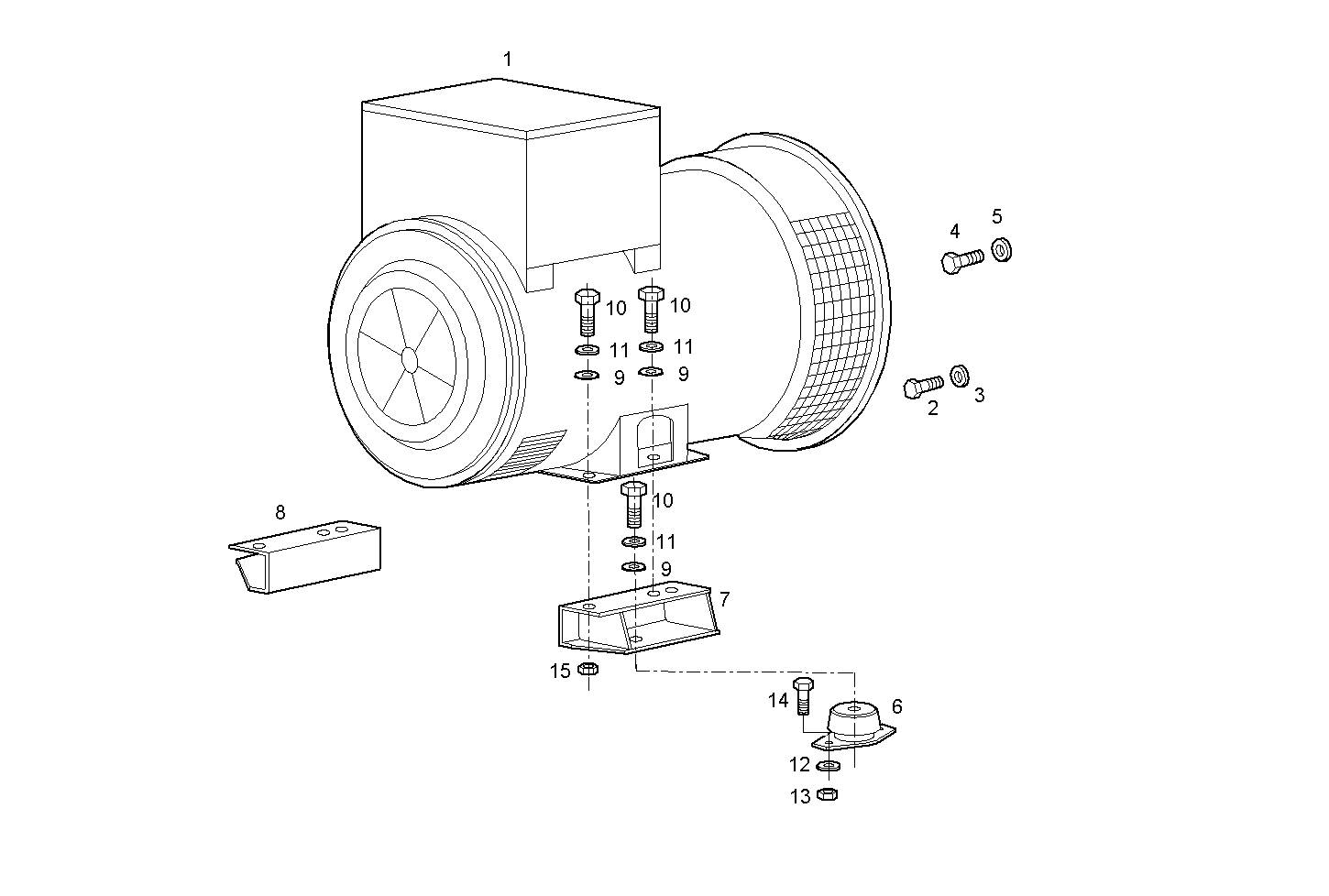

| Item |
Part number |
Description |
|
1 |
8020801 |
ELECTRIC MACHINE UCD 224 D 16 50-60HZ [from 05-95] |
|
2 |
16608024 |
HEXAGON BOLT M10X1,25X45 MM |
|
3 |
17090174 |
SPRING WASHER Ø10X20 MM |
|
4 |
16619124 |
SCREW M10X22 MM |
|
5 |
17494934 |
WASHER Ø10X18,1X2,2 MM |
|
6 |
503111672 |
RUBBER LUG |
|
7 |
503113055 |
SPACING BAR |
|
8 |
503113060 |
SPACING BAR |
|
9 |
17095724 |
WASHER Ø16 MM |
|
10 |
16614524 |
HEXAGON BOLT M16X35 MM |
|
11 |
17092174 |
SPRING WASHER Ø16X32X3,4 |
|
12 |
17090474 |
SPRING WASHER Ø10X27 MM SP=2,5 |
|
13 |
17038131 |
HEXAGON NUT M10 |
|
14 |
16607724 |
HEXAGON BOLT M10X1,5X30 MM (8.8) |
|
15 |
17038925 |
NUT M16 |
