GENEF45M-5.R980

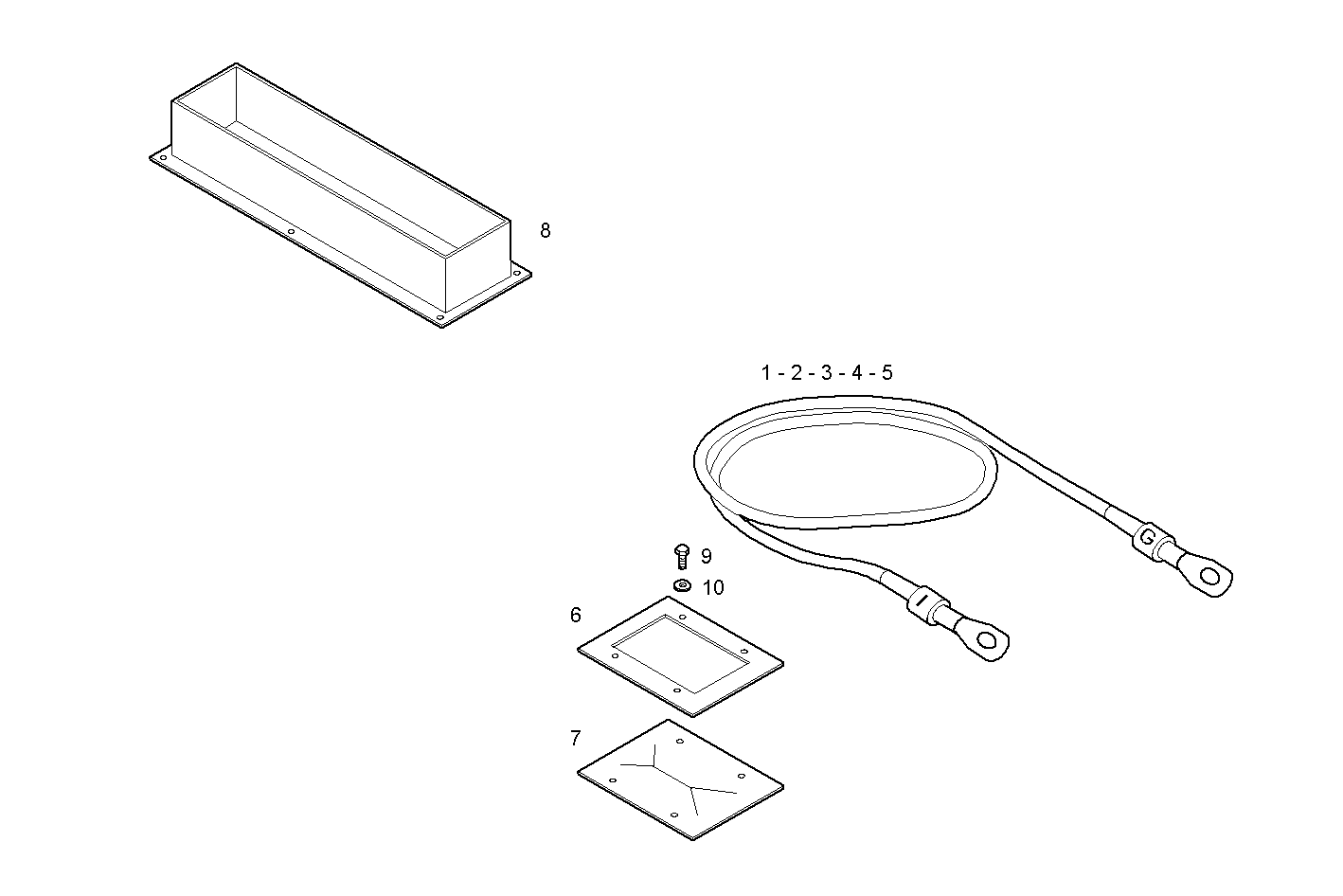

A62705012 POWER CABLES - for Stamford

Iveco/FPT POWER CABLES

Item Part number Description
1 503113233 WIRE/CABLE L=1000 mm. - black - Ø 50mm. - U
2 503113234 WIRE/CABLE L=1000 mm. - black - Ø 50mm. - V
3 503113235 WIRE/CABLE L=1000 mm. - black - Ø 50mm. - W
4 503113236 WIRE/CABLE L=1000 mm. - black - Ø 50mm. - N
5 503113242 WIRE/CABLE L=1000 mm. - yellow/green - Ø 25mm.
6 503111035 COVER
7 503111036 GROMMET
8 503112192 PROTECTION
9 16609724 HEXAGON BOLT
10 17088474 WASHER Ø6X12 MM
