GENEF45MA.R980

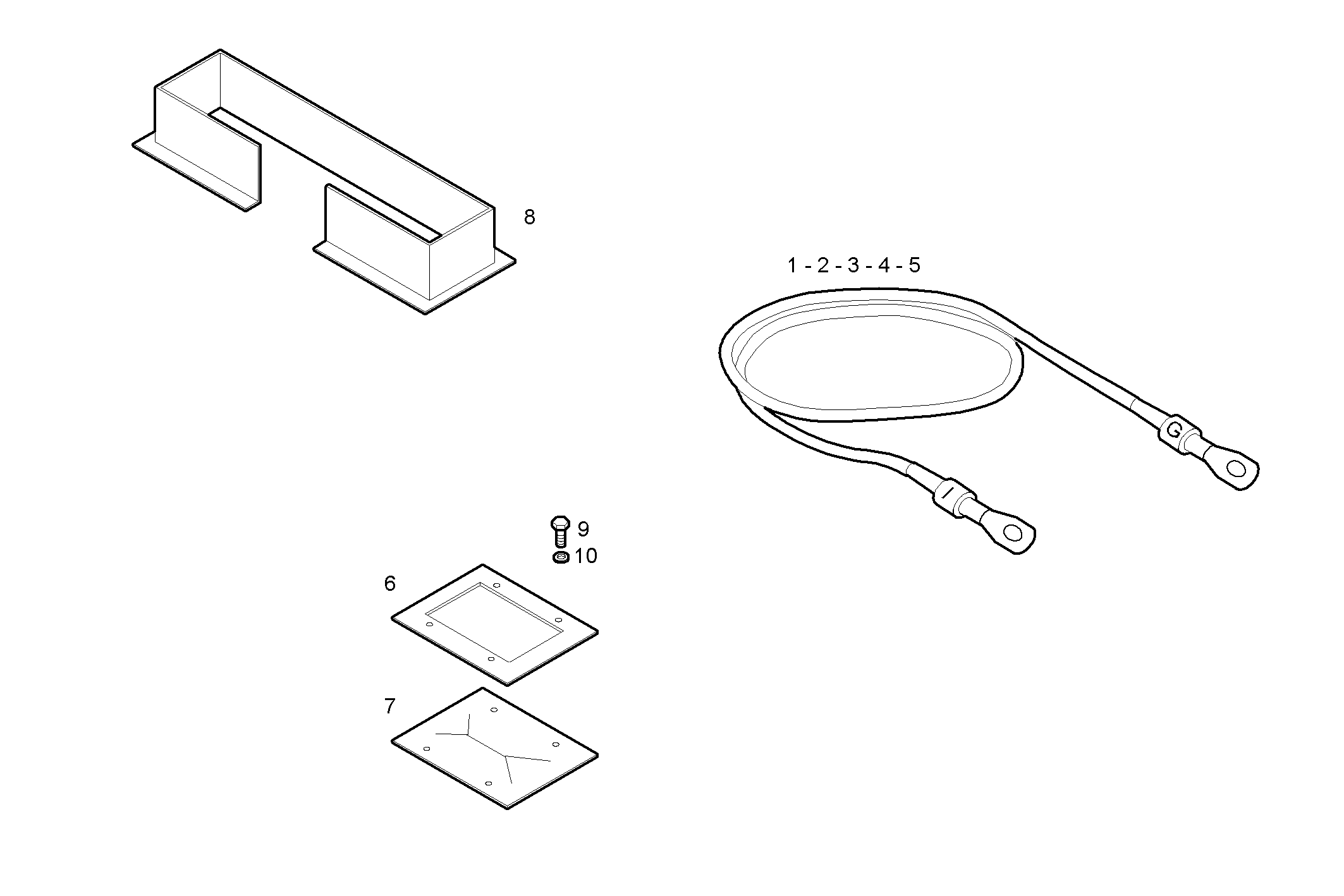

A62725021 POWER CABLES - for Marelli
Item | Part number | Description |
---|---|---|
1 | 503113233 | WIRE/CABLE L=1000 mm. - black - Ø 50mm. - U |
2 | 503113234 | WIRE/CABLE L=1000 mm. - black - Ø 50mm. - V |
3 | 503113235 | WIRE/CABLE L=1000 mm. - black - Ø 50mm. - W |
4 | 503113236 | WIRE/CABLE L=1000 mm. - black - Ø 50mm. - N |
5 | 503113242 | WIRE/CABLE L=1000 mm. - yellow/green - Ø 25mm. |
6 | 503111035 | COVER |
7 | 503111036 | GROMMET |
8 | 503114012 | PROTECTION |
9 | 16603677 | HEXAGON BOLT M6X16 MM |
10 | 17710074 | WASHER Ø6X11 MM |
