GENEF60M.1A001

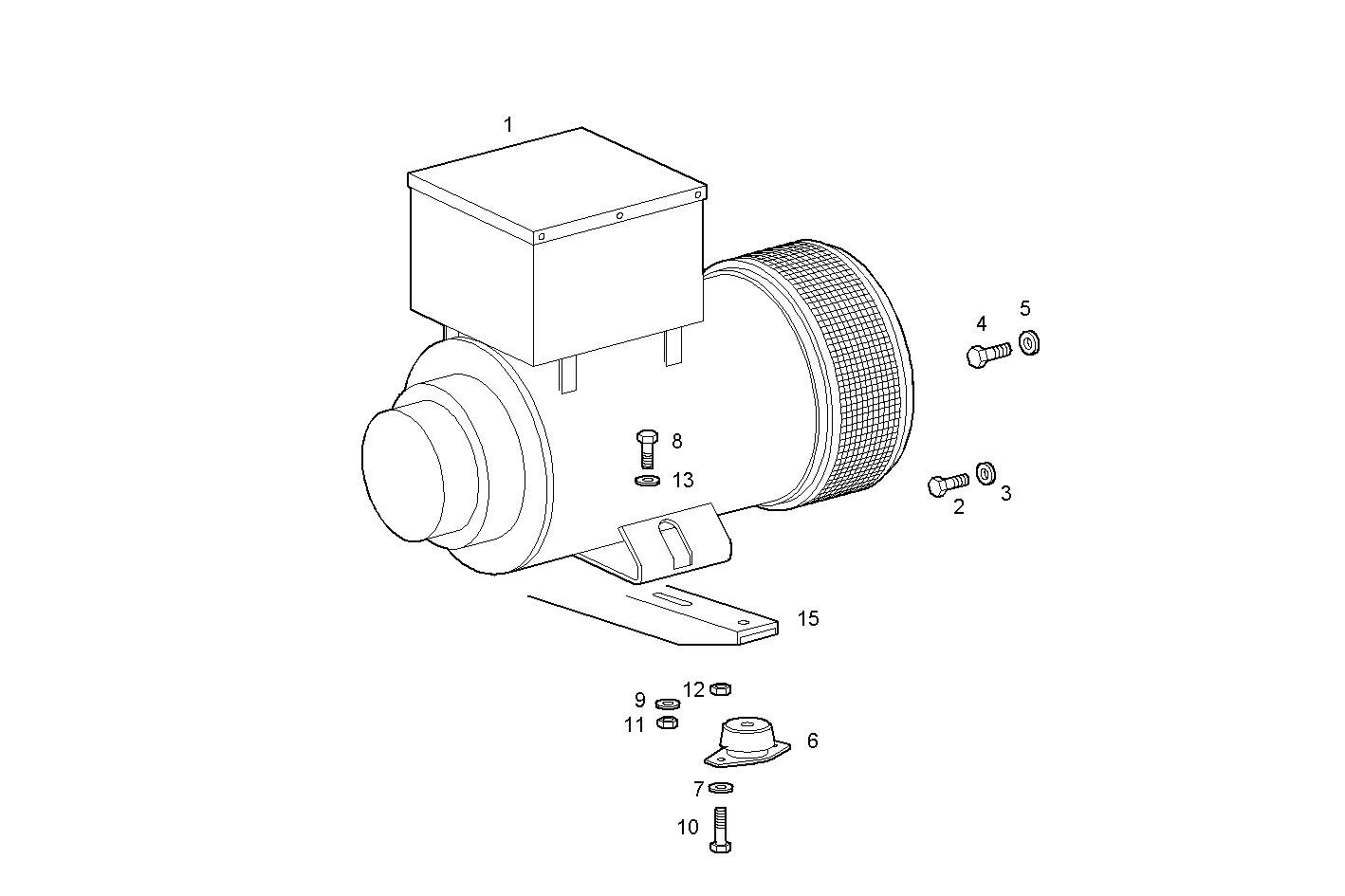

A37215013 ELECTRIC MACHINE - MARELLI
| Item | Part number | Description |
|---|---|---|
| 1 | 503111512 | ELECTRIC MACHINE MJB200 |
| 2 | 16619124 | SCREW M10X22 MM |
| 3 | 17798374 | SPRING WASHER Ø10,2X18,1 MM |
| 4 | 16607824 | HEXAGON BOLT M10X35 MM (8.8) |
| 5 | 17090174 | SPRING WASHER Ø10X20 MM |
| 6 | 503111672 | RUBBER LUG |
| 7 | 17090474 | SPRING WASHER Ø10X27 MM SP=2,5 |
| 8 | 16612324 | HEXAGON BOLT M14X35 MM |
| 9 | 17095724 | WASHER Ø16 MM |
| 10 | 16607734 | HEXAGON BOLT M10X30 MM |
| 11 | 17038925 | NUT M16 |
| 12 | 17038125 | NUT M10 |
| 13 | 17092174 | SPRING WASHER Ø16X32X3,4 |
| 15 | 503113382 | TIE |
