Catalogue Menu

GENEF60M.1R980
A62725019 POWER CABLES - for Marelli

Iveco/FPT POWER CABLES

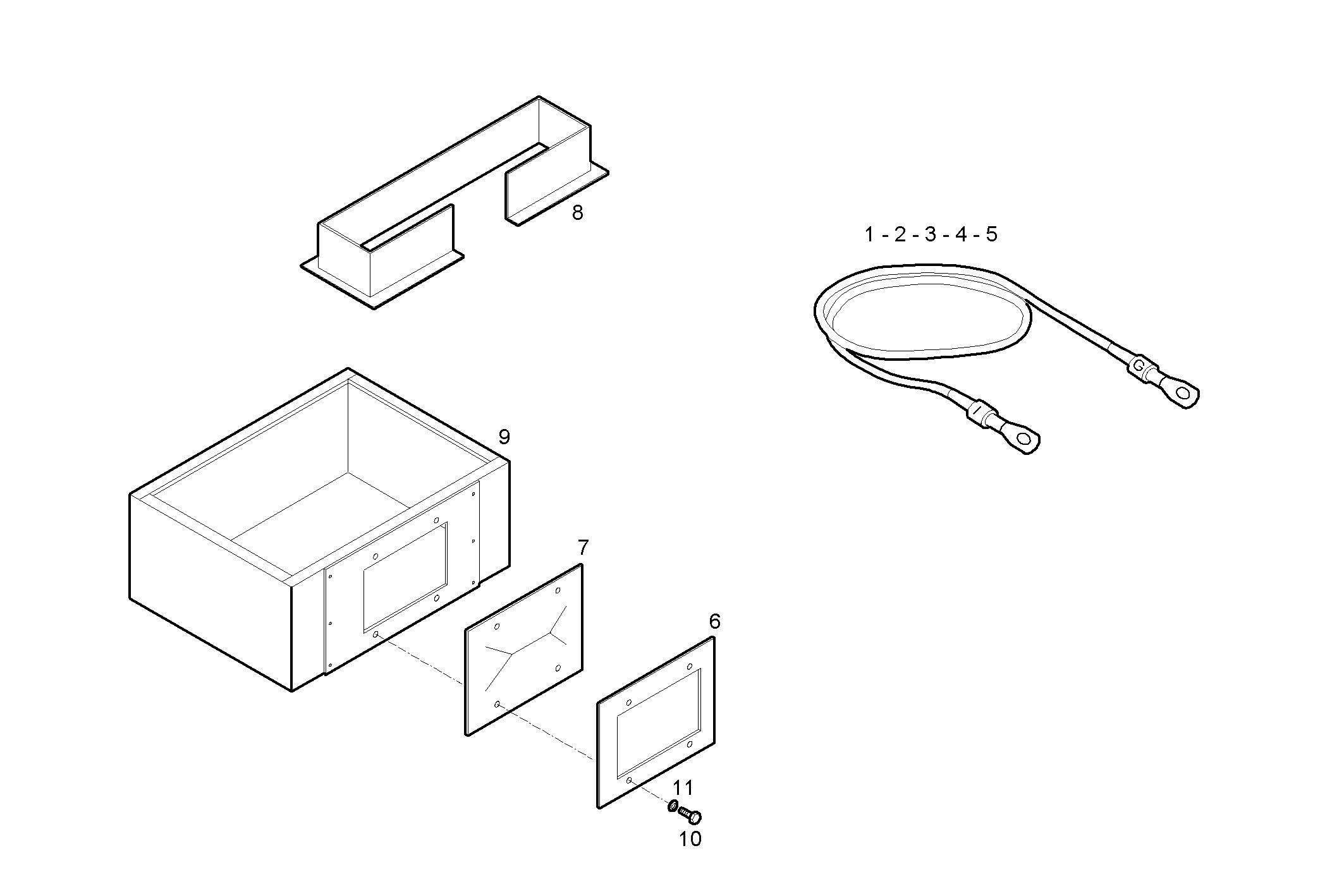

Item Part number Description
1 503113237 WIRE/CABLE L=1000 mm. - black - Ø 35mm. - U
2 503113238 WIRE/CABLE L=1000 mm. - black - Ø 35mm. - V
3 503113239 WIRE/CABLE L=1000 mm. - black - Ø 35mm. - W
4 503113240 WIRE/CABLE L=1000 mm. - black - Ø 35mm. - N
5 503113243 WIRE/CABLE L=1000 mm. - yellow/green - Ø 35mm.
6 503111035 COVER
7 503111036 GROMMET
8 503112192 PROTECTION
9 503113489 SUPPORT
10 16603624 HEXAGON BOLT M6X16 MM (8.8)
11 17710074 WASHER Ø6X11 MM
