GENEF75M-5.R980

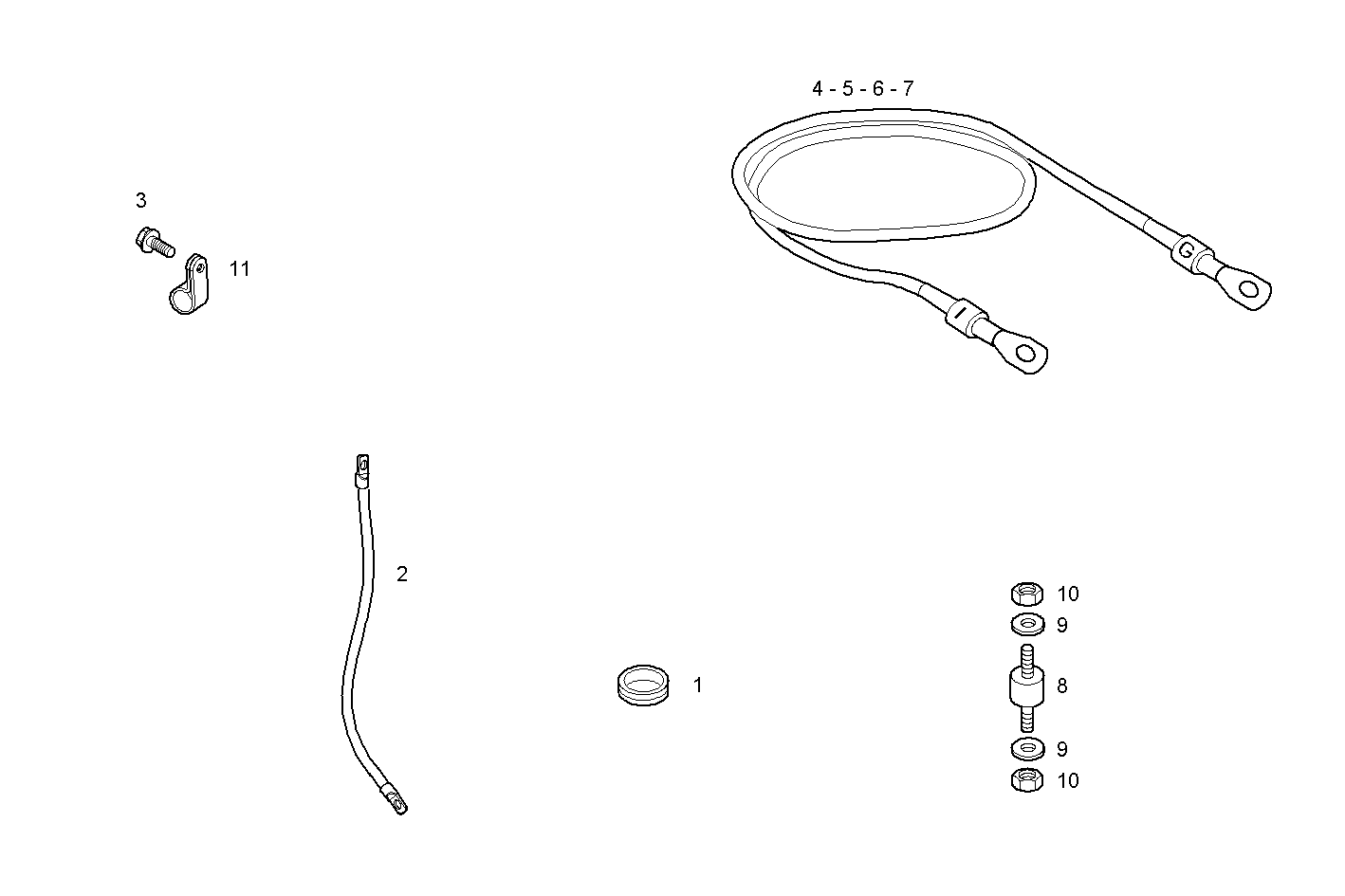

A62735010 POWER CABLES - for Mecc-Alte
Item | Part number | Description |
---|---|---|
1 | 8113214 | INSULATING RING |
2 | 8110852 | EARTH WIRE |
3 | 16603734 | HEXAGON BOLT M6X20 MM |
4 | 503112783 | WIRE/CABLE |
5 | 503112784 | WIRE/CABLE |
6 | 503112785 | WIRE/CABLE |
7 | 503112786 | WIRE/CABLE |
8 | 4910949 | RUBBER LUG |
9 | 17088474 | WASHER Ø6X12 MM |
10 | 17037821 | HEXAGON NUT M6X1 |
11 | 17314990 | FASTENING BRACKET |
