GENEF75M-5.R980

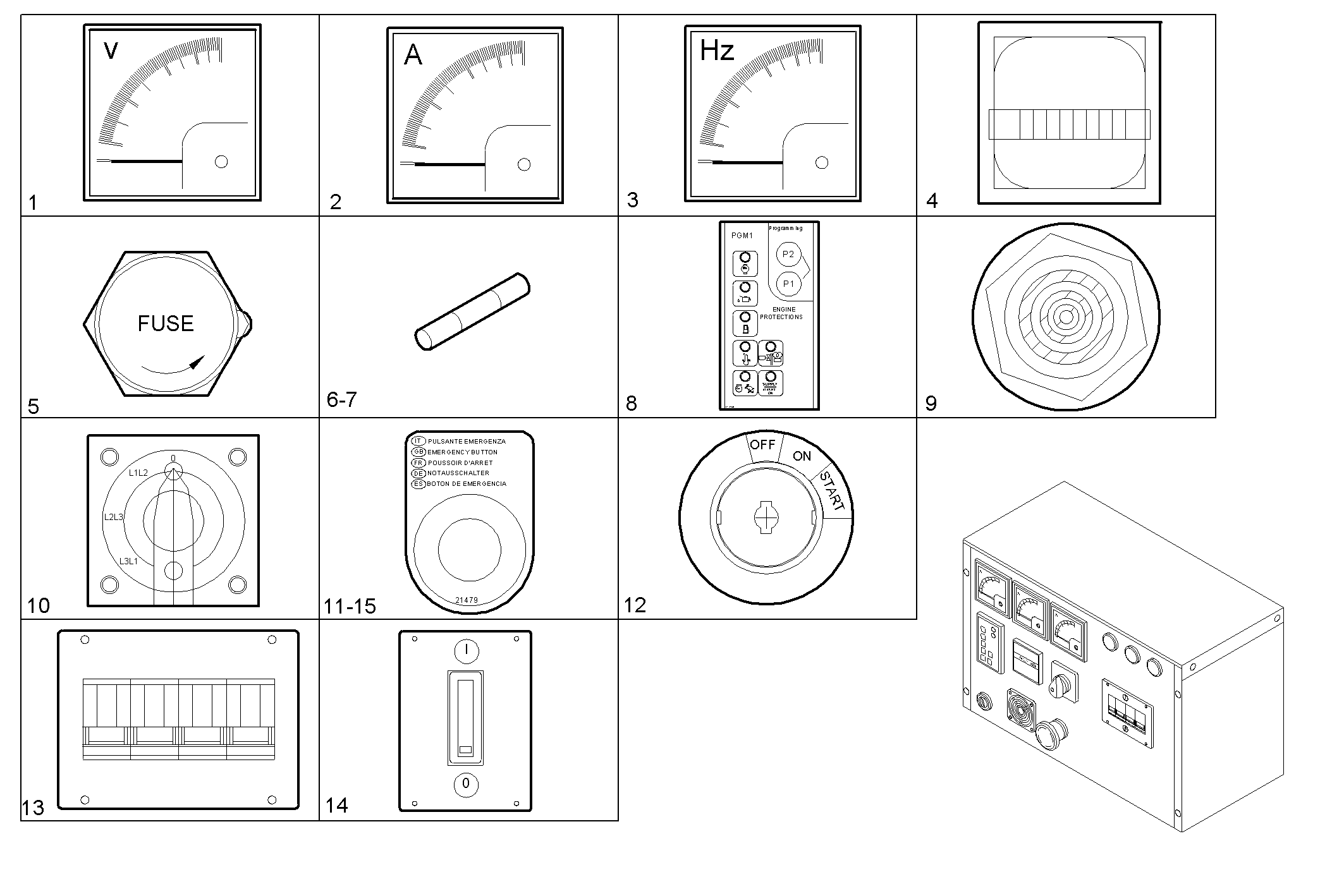

Q0000128 MANUAL CONTROL BOARD - components
| Item | Part number | Description |
|---|---|---|
| 1 | 8094535 | VOLTMETER |
| 2 | 8094517 | AMMETER |
| 3 | 8094515 | FREQUENCYMETER |
| 4 | 8094516 | HOURMETER |
| 5 | 8094512 | FUSE BOX |
| 6 | 8094511 | FUSE 20 A |
| 7 | 8094509 | FUSE 2 A |
| 8 | 8093976 | ELECTRONIC CARD |
| 9 | 8093990 | ACOUSTIC HORN |
| 10 | 8093989 | SWITCH |
| 11 | 8094506 | SWITCH |
| 12 | 8094505 | SWITCH |
| 13 | 8094500 | THERMOSWITCH |
| 14 | 8094501 | MINIMUN TENSION COIL |
| 15 | 8093991 | PUSH BUTTON |
