GENEF75MA.R980

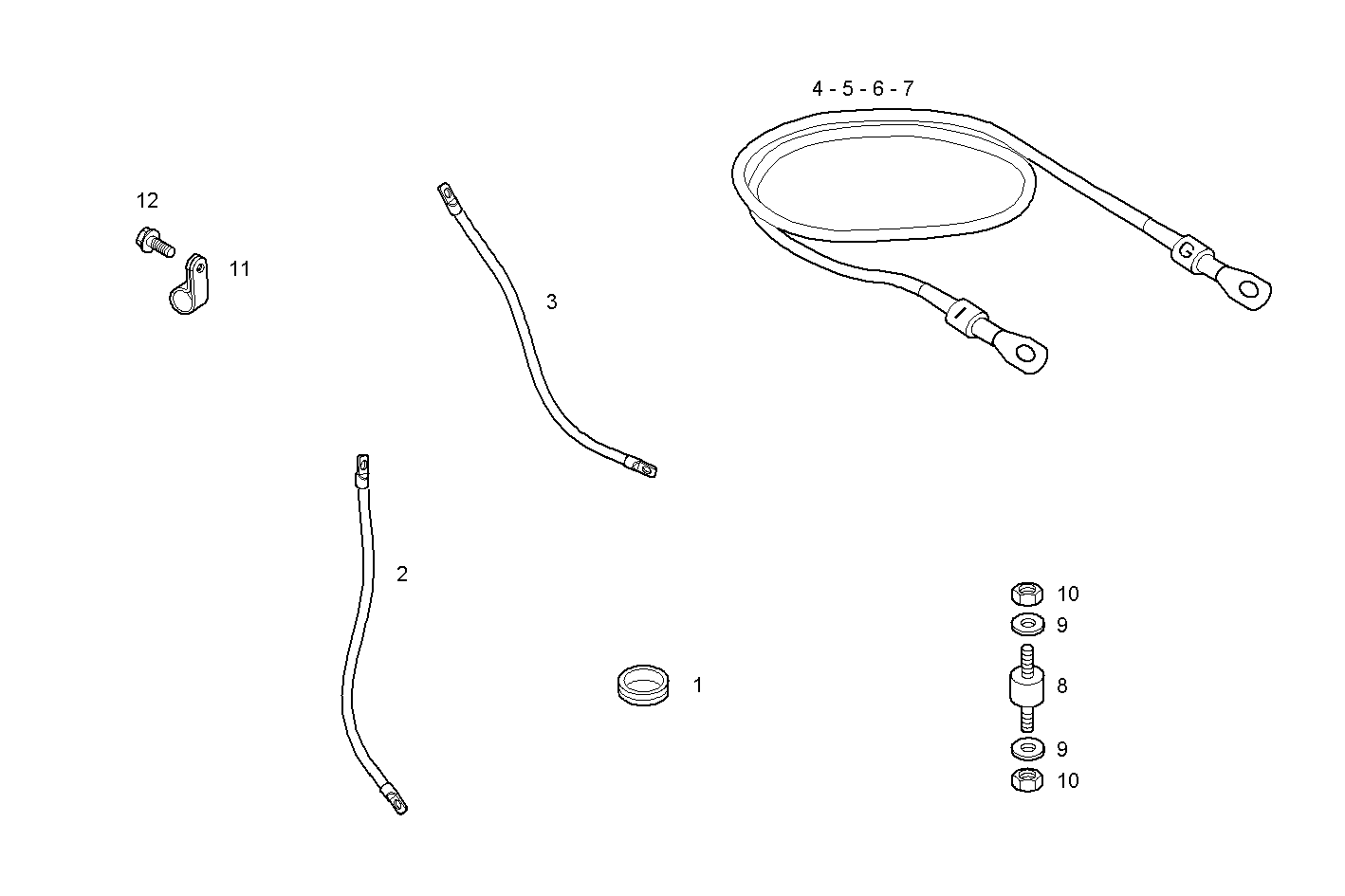

A62705011 POWER CABLES - for Stamford
Item | Part number | Description |
---|---|---|
1 | 8113214 | INSULATING RING |
2 | 8110852 | EARTH WIRE |
3 | 8104707 | WIRE/CABLE |
4 | 503112779 | WIRE/CABLE |
5 | 503112780 | WIRE/CABLE |
6 | 503112781 | WIRE/CABLE |
7 | 503112782 | WIRE/CABLE |
8 | 4910949 | RUBBER LUG |
9 | 17088474 | WASHER Ø6X12 MM |
10 | 17037821 | HEXAGON NUT M6X1 |
11 | 17314990 | FASTENING BRACKET |
12 | 16603734 | HEXAGON BOLT M6X20 MM |
