A62725013 POWER CABLES - for Marelli

Iveco/FPT POWER CABLES

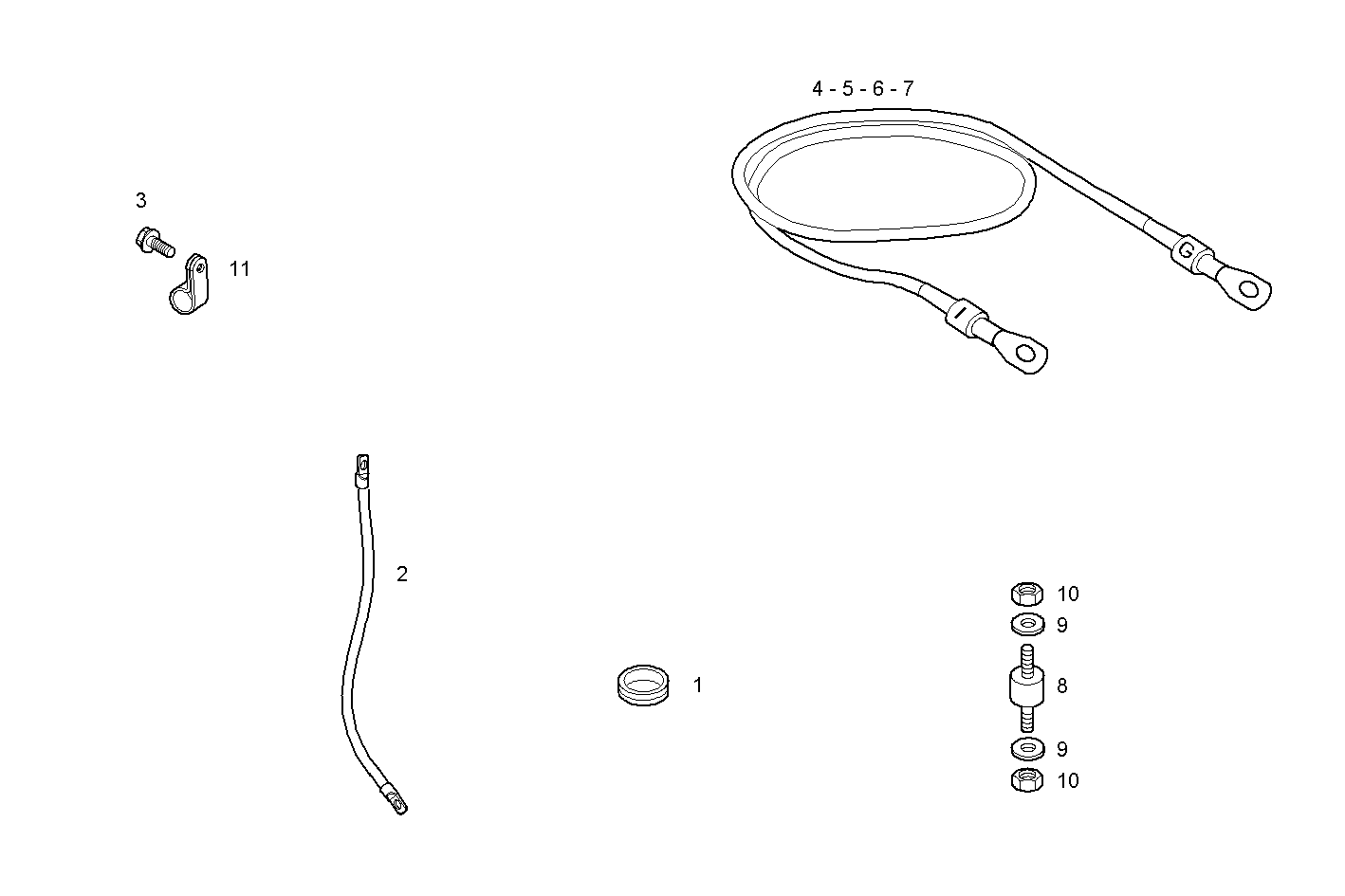

Item Part number Description
1 8113214 INSULATING RING
2 8110852 EARTH WIRE
3 16603734 HEXAGON BOLT M6X20 MM
4 503112775 WIRE/CABLE
5 503112776 WIRE/CABLE
6 503112777 WIRE/CABLE
7 503112778 WIRE/CABLE
8 4910949 RUBBER LUG
9 17088474 WASHER Ø6X12 MM
10 17037821 HEXAGON NUT M6X1
11 17314990 FASTENING BRACKET
