GENEF85M.1A71M

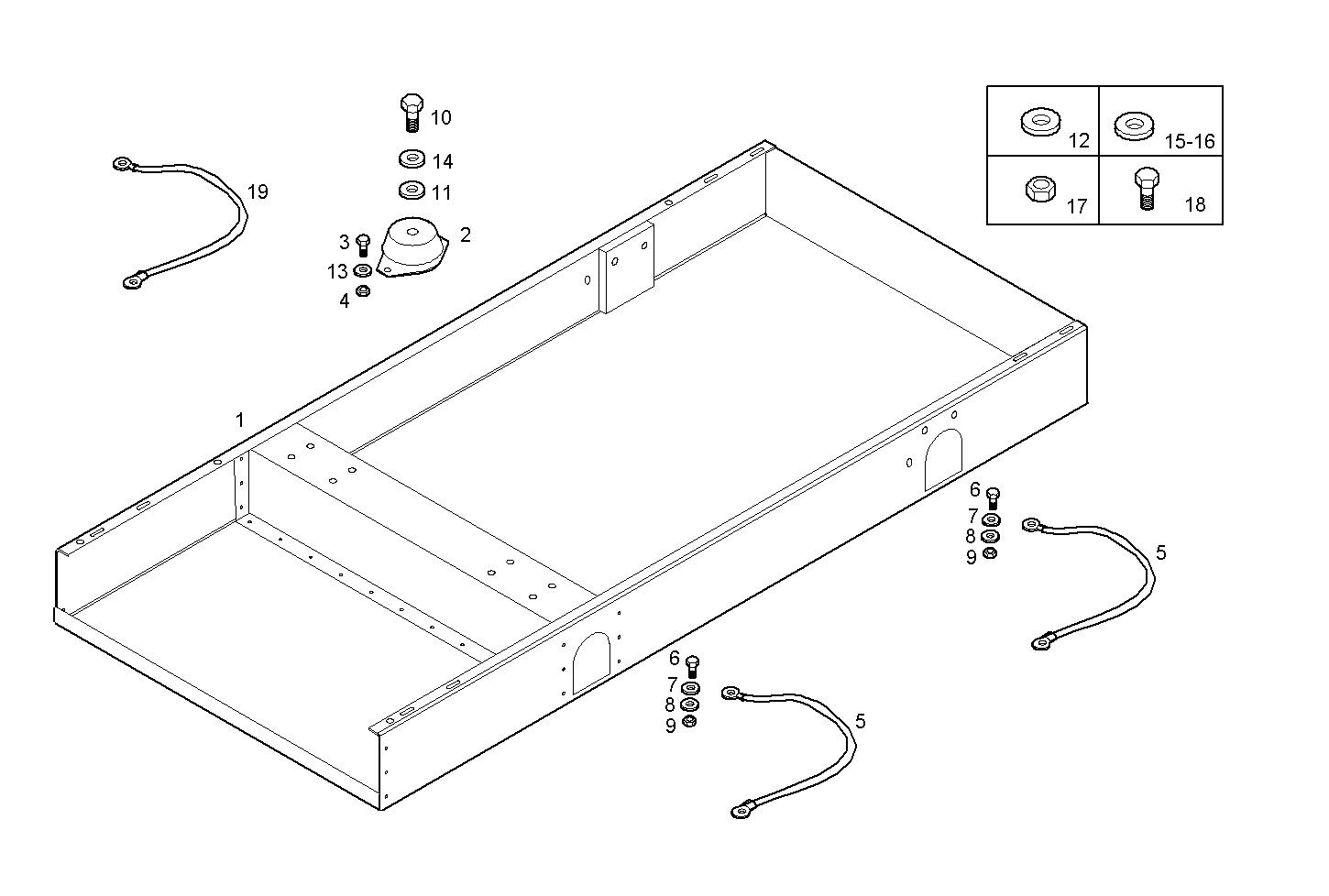

A36105005 SUBBASE FOR GENERATOR UNIT
Item | Part number | Description |
---|---|---|
1 | 503112925 | SUBBSAE-SUPPORT FRAME |
2 | 503111673 | RUBBER PAD |
3 | 16607625 | SCREW M10X25 |
4 | 17038125 | NUT M10 |
5 | 8031723 | EARTH WIRE L=250 MM - FOR SEA WATER ADAPT. |
6 | 16609724 | HEXAGON BOLT |
7 | 17094724 | WASHER Ø6X12 MM |
8 | 17710074 | WASHER Ø6X11 MM |
9 | 17037821 | HEXAGON NUT M6X1 |
10 | 16614934 | SCREW M16X55 MM |
11 | 17092174 | SPRING WASHER Ø16X32X3,4 |
12 | 17091074 | WASHER Ø12X24X2,8 MM |
13 | 17090474 | SPRING WASHER Ø10X27 MM SP=2,5 |
14 | 17095724 | WASHER Ø16 MM |
15 | 17095304 | WASHER Ø12X24 MM |
16 | 17710374 | WASHER Ø12 MM |
17 | 17038425 | HEXAGON NUT M12 (8) |
18 | 16609825 | HEXAGON BOLT M12X1,75X25 |
19 | 8104707 | WIRE/CABLE |
