GEVECTOR650E.A500

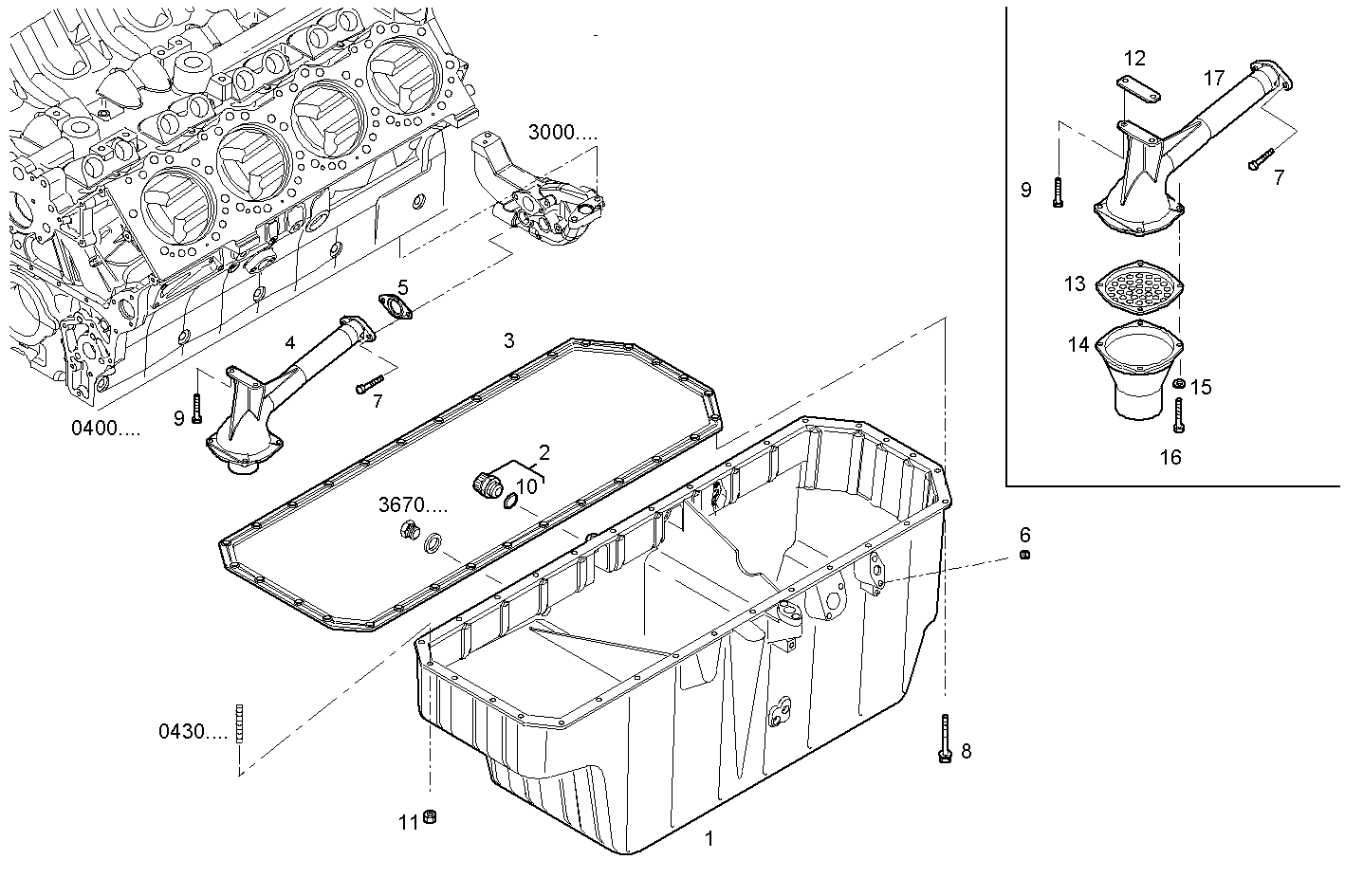

0420.222 OIL SUMP

Iveco/FPT OIL SUMP

Item Part number Description
1 504090106 OIL SUMP
2 504053131 PLUG
3 504041342 OIL SUMP GASKET
4 504090233 SUCTION STRAINER [UP TO 09-03-06]
5 504043473 FLAT ENGINE GASKET
6 17847870 THREADED INSERT M8
7 16605534 HEXAGON BOLT M8X20 MM (10.9)
8 504049517 SCREW M10X1,5X90 MM
9 16586925 HEXAGON BOLT M8X50 MM
10 18064760 GASKET Ø30X36 MM
11 17044825 HEXAGON NUT M10
12 504210757 SPACING BAR [FROM 10-03-06]
13 4673581 FILTER
14 8040601 COVER [FROM 10-03-06]
15 17798274 SPRING WASHER Ø8,2X14,9 MM
16 16605525 HEXAGON BOLT M8X20 MM [FROM 10-03-06]
17 504206080 SUCTION STRAINER [FROM 10-03-06]
