GEVECTOR650E.A500

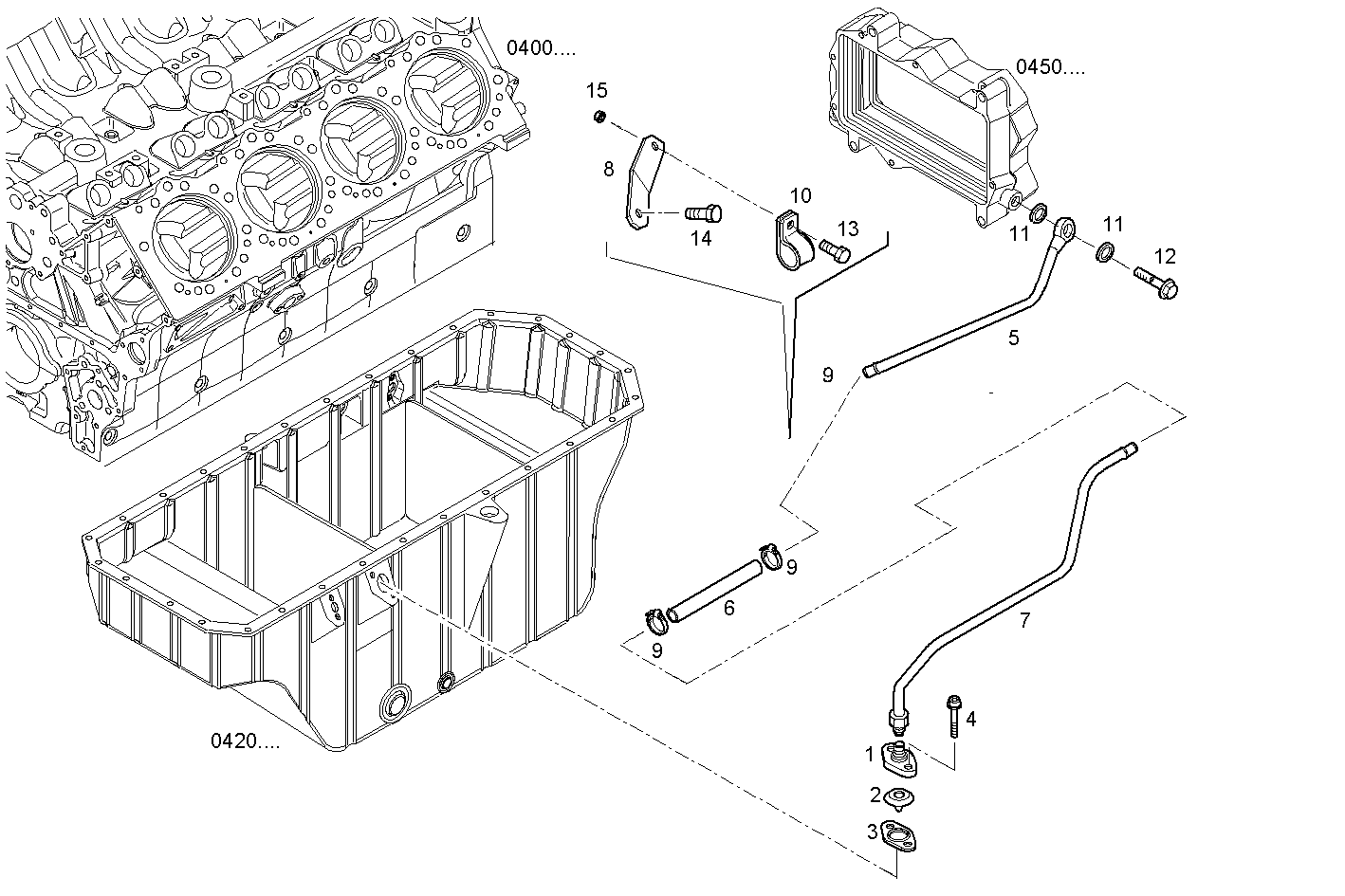

0450.211/03 ENGINE BREATHERS
Item | Part number | Description |
---|---|---|
1 | 504075263 | PIPE SOCKET |
2 | 504036532 | VALVE |
3 | 504075235 | FLAT ENGINE GASKET |
4 | 16586425 | HEXAGON BOLT M8X25 MM |
5 | 504130849 | PIPE |
6 | 504095075 | RUBBER SLEEVE |
7 | 504130850 | PIPE |
8 | 504130848 | RETAINER |
9 | 18088392 | CLIP Ø16/25 MM |
10 | 17314990 | FASTENING BRACKET |
11 | 98474309 | WASHER Ø16X24 MM SP=1,9 MM |
12 | 16511414 | SCREW CONNECTOR |
13 | 18138325 | HEXAGON BOLT M8X16 MM |
14 | 16750125 | HEXAGON NUT M6 |
15 | 16677734 | HEXAGON BOLT M12X25 MM |
