GEVECTOR650E.A500

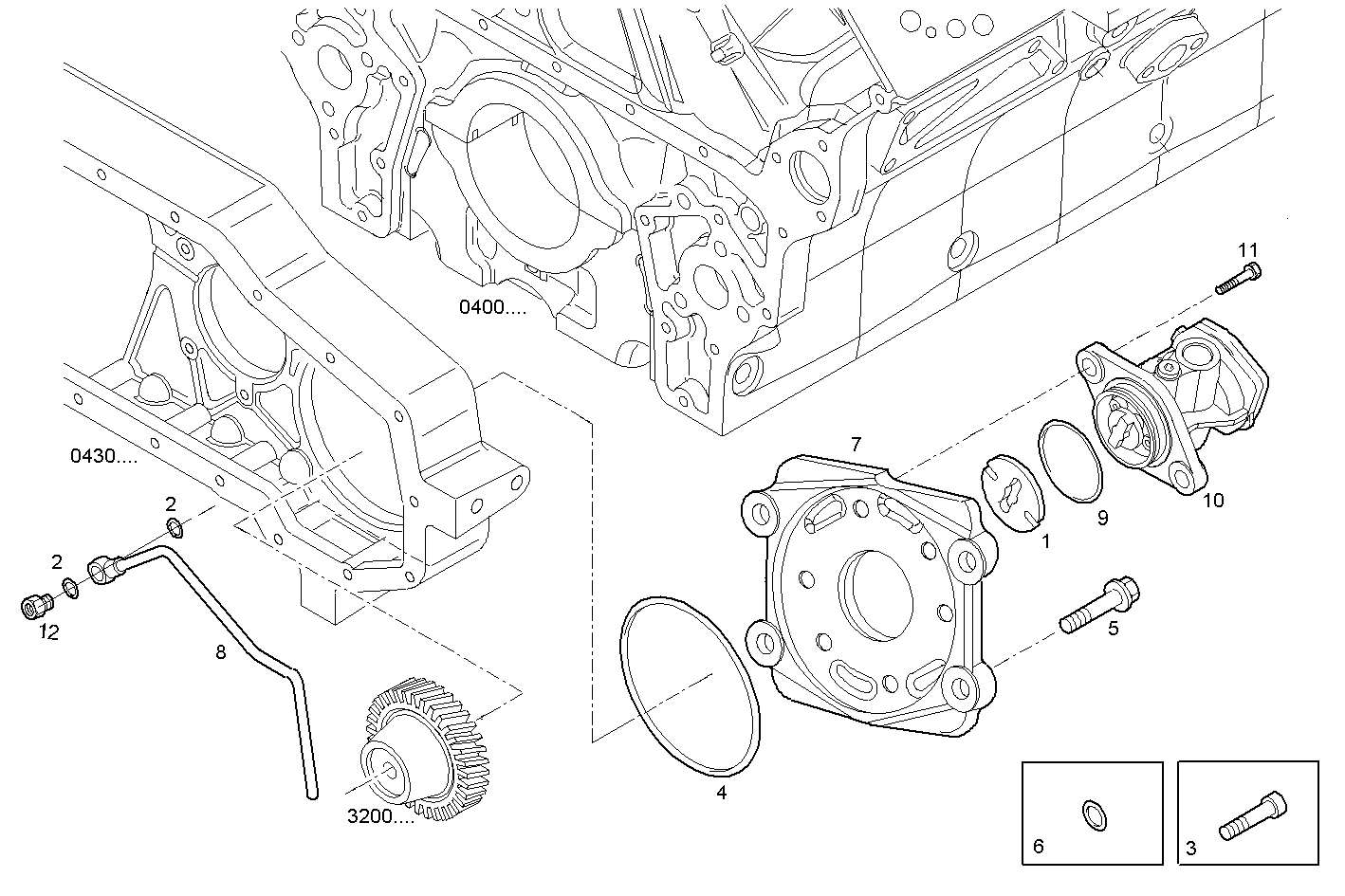

2010.056 FUEL PUMP - low pressure
| Item | Part number | Description |
|---|---|---|
| 1 | 504058399 | FLEXIBLE COUPLING |
| 2 | 98474305 | WASHER Ø10X17 MM SP=2,3 |
| 3 | 16596924 | HEXAGON BOLT M6X10 MM |
| 4 | 17292581 | O-RING Ø3,53X136,1 MM |
| 5 | 16588125 | HEXAGON BOLT M12X35 MM |
| 6 | 17094724 | WASHER Ø6X12 MM |
| 7 | 504088838 | SPACING BAR |
| 8 | 504101003 | OIL LINE |
| 9 | 504060288 | O-RING |
| 10 | 504129158 | FUEL PUMP |
| 11 | 16675735 | HEXAGON BOLT M10X25 MM |
| 12 | 504049545 | THREADED UNION M10X1,5 |
