GEVECTOR650E.A500

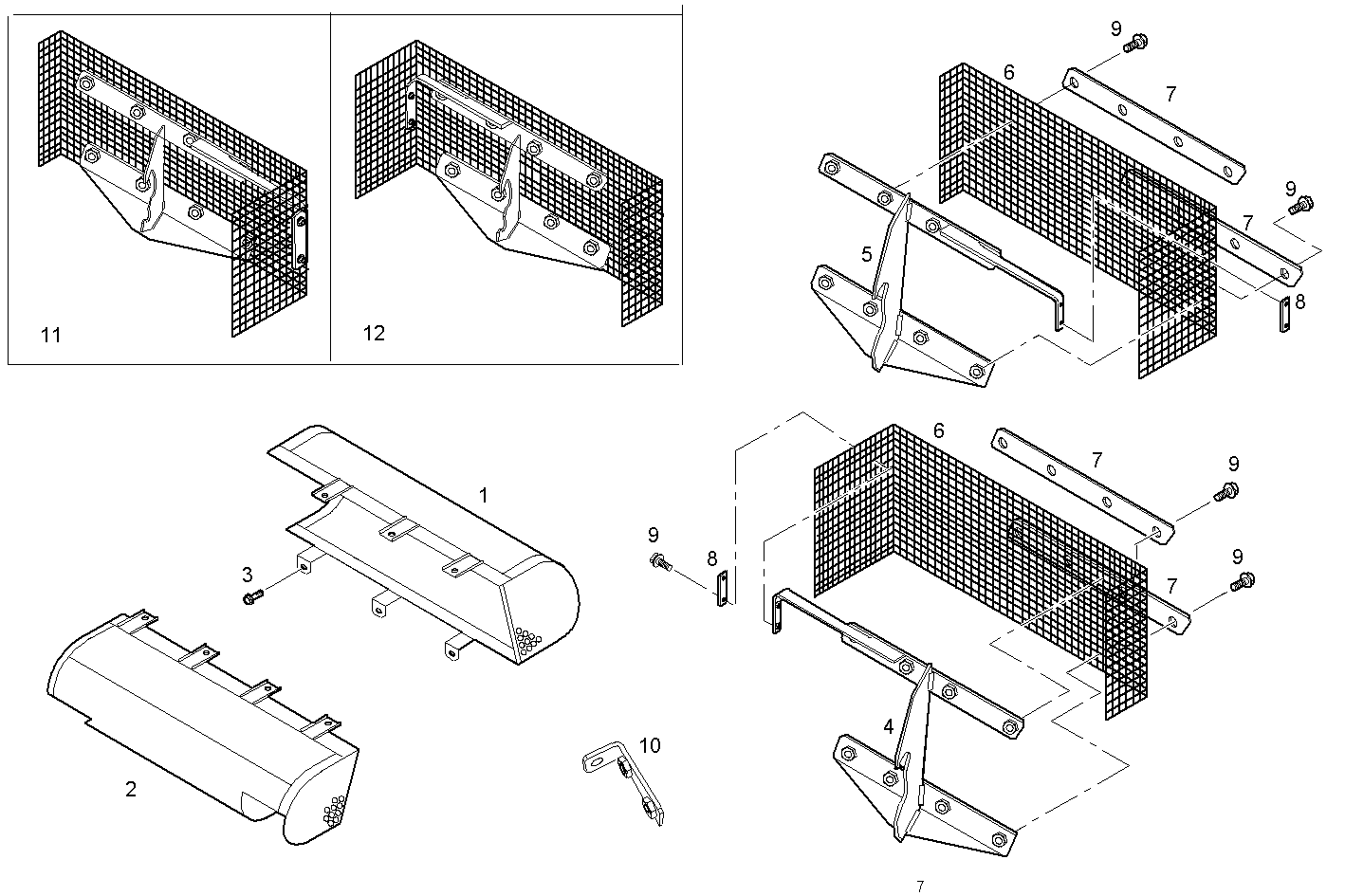

5770.050 SHIELDS
| Item | Part number | Description |
|---|---|---|
| 1 | 504120999 | PROTECTION |
| 2 | 504121001 | PROTECTION |
| 3 | 16597925 | HEXAGON BOLT M8X14 MM |
| 4 | 504149257 | SUPPORT RIGHT |
| 5 | 504149260 | SUPPORT LEFT |
| 6 | 504149255 | PROTECTION |
| 7 | 504150366 | FASTENING BRACKET |
| 8 | 504150301 | FASTENING BRACKET |
| 9 | 16600224 | HEXAGON BOLT M8X1,25X18 MM |
| 10 | 504150767 | FASTENING BRACKET |
| 11 | 504151281 | PROTECTION RIGHT ASSY |
| 12 | 504151282 | PROTECTION LEFT ASSY |
