GEVECTOR650E.A500

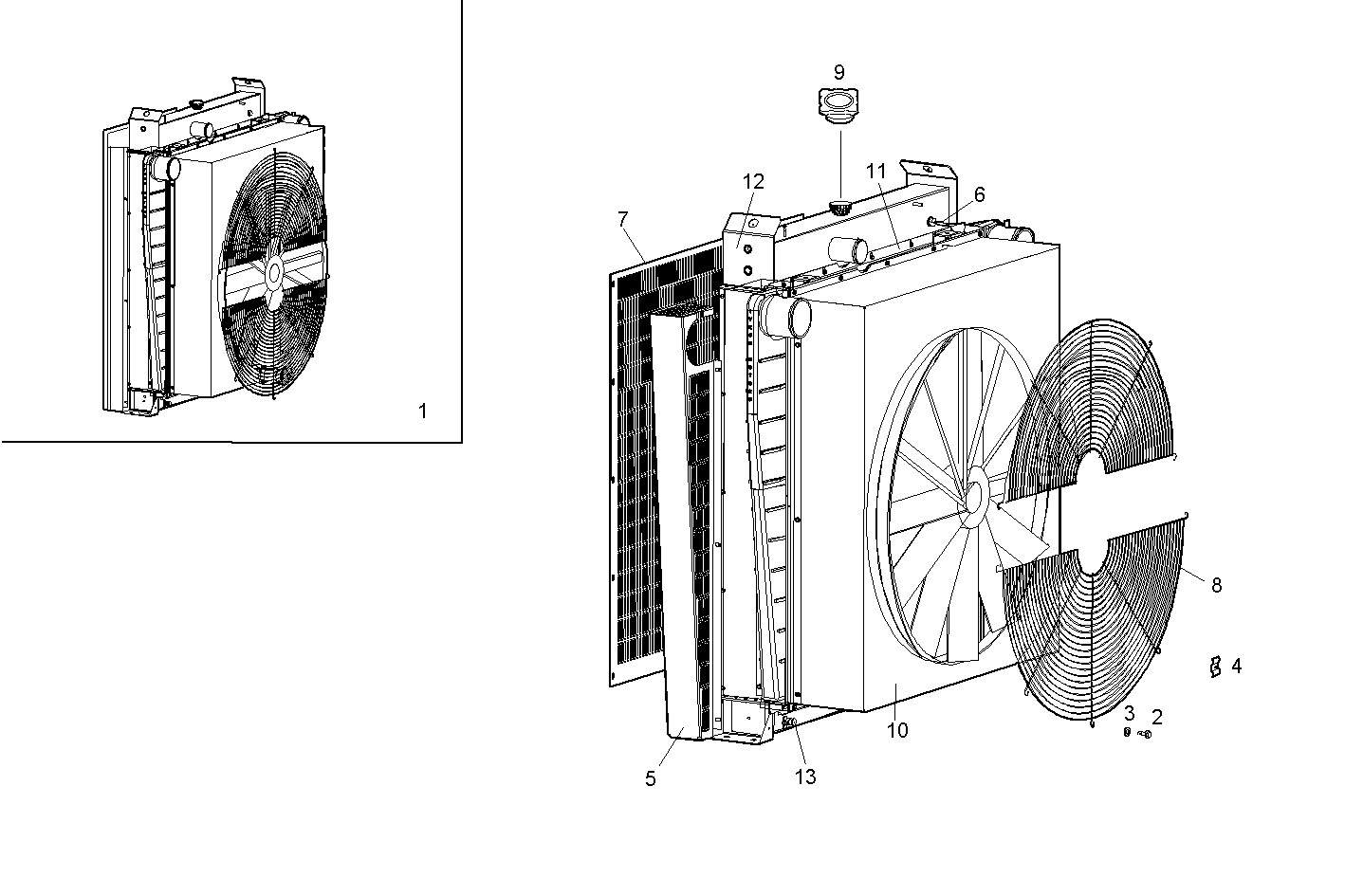

A22815000/01 RADIATOR 2 CIRCUITS AIR/WATER - for genset
| Item | Part number | Description |
|---|---|---|
| 1 | 504172483 | WATER RADIATOR ASSY |
| 2 | 18139424 | HEXAGON BOLT M10X20 MM |
| 3 | 17090174 | SPRING WASHER Ø10X20 MM |
| 4 | 8095047 | FASTENING BRACKET |
| 5 | 8095042 | PROTECTION |
| 6 | 8095038 | TRANSMITTER TBLA |
| 7 | 8095040 | PROTECTION |
| 8 | 8095039 | PROTECTION |
| 9 | 8095041 | RADIATOR PLUG |
| 10 | 8095045 | AIR HOOD |
| 11 | 8095044 | INTERCOOLER |
| 12 | 8095043 | WATER RADIATOR |
| 13 | 8094858 | PLUG |
