GEVECTOR650E.A500

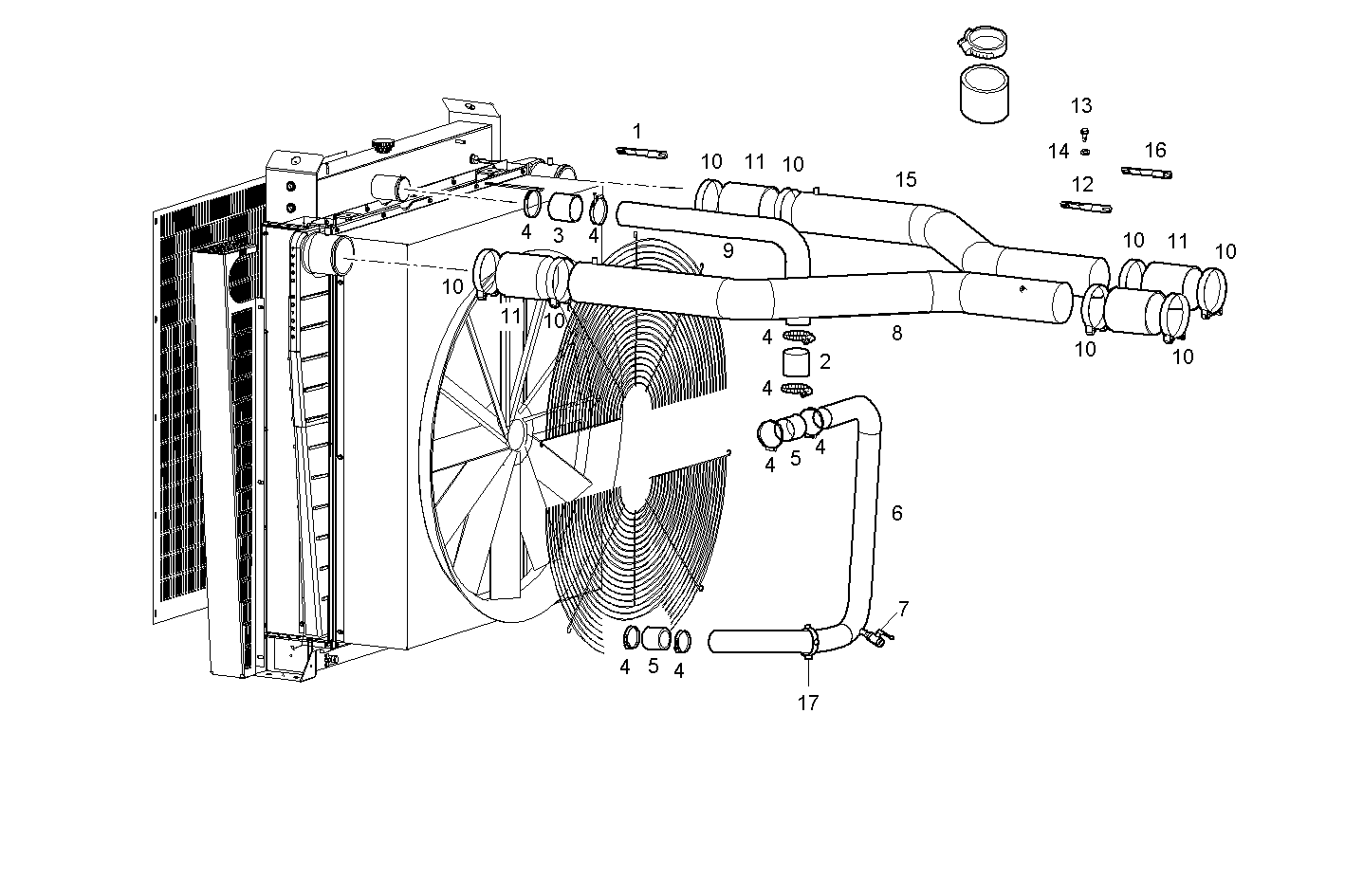

A22815000/02 RADIATOR 2 CIRCUITS AIR/WATER - for genset
| Item | Part number | Description |
|---|---|---|
| 1 | 8095031 | FASTENING BRACKET |
| 2 | 8095022 | WATER HOSE |
| 3 | 8095023 | WATER HOSE |
| 4 | 8095027 | CLIP |
| 5 | 8095024 | WATER HOSE |
| 6 | 8095028 | WATER PIPE |
| 7 | 8095037 | DRAIN COCK |
| 8 | 8095029 | AIR PIPE/DUCT |
| 9 | 8095026 | WATER PIPE |
| 10 | 8095030 | CLIP |
| 11 | 8095025 | RUBBER SLEEVE |
| 12 | 8095032 | FASTENING BRACKET |
| 13 | 16605424 | SCREW M8X16 MM (8.8) |
| 14 | 17089574 | WASHER Ø8X16 MM |
| 15 | 8095033 | AIR PIPE/DUCT |
| 16 | 8095034 | FASTENING BRACKET |
| 17 | 8095036 | CLIP |
