GEVECTOR650E.A500

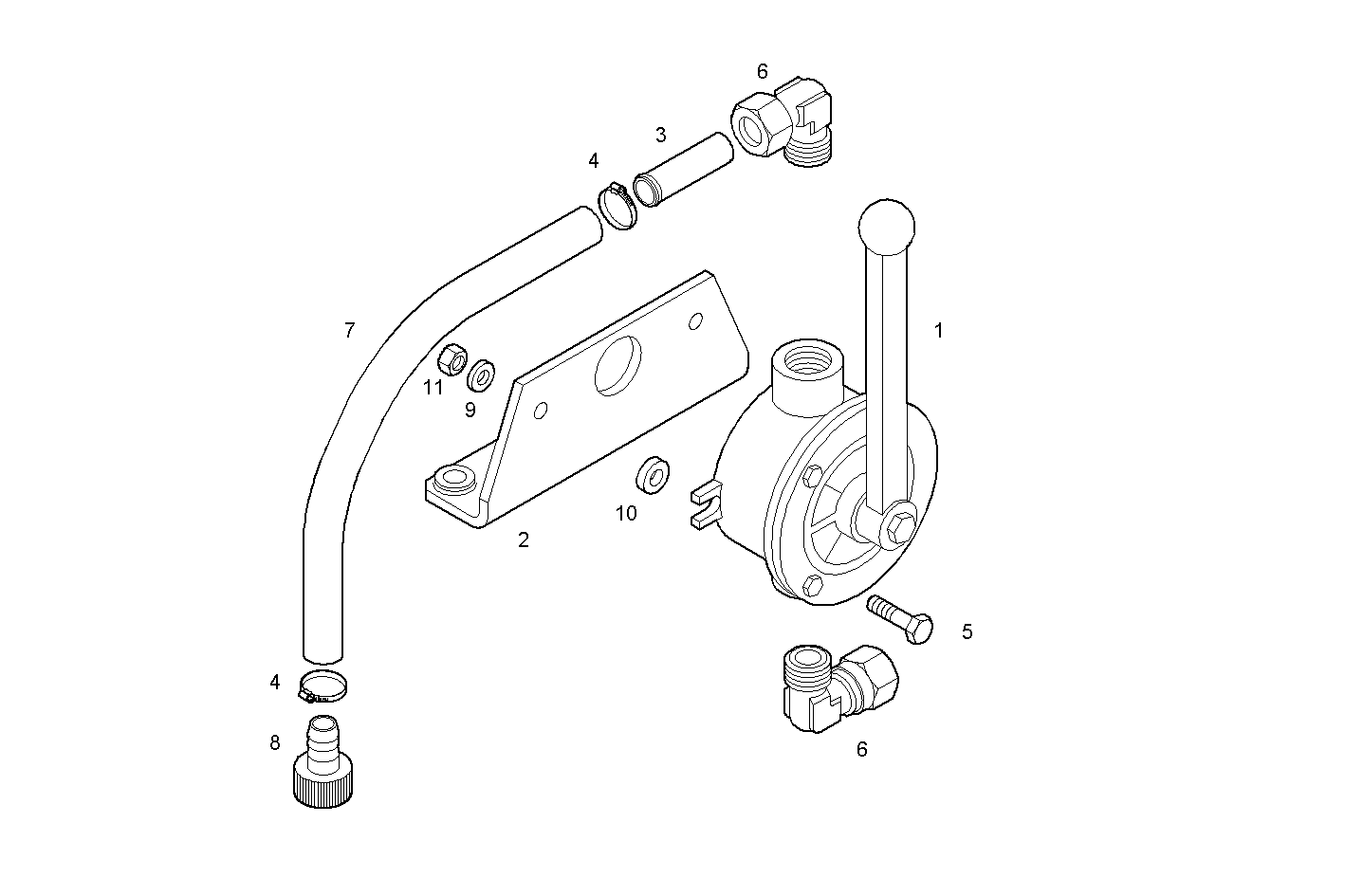

A49915000 OIL OUTLET PUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 8012424 | MAR. ENG. SUCTION PUMP |
| 2 | 8110727 | RETAINER |
| 3 | 8104754 | OIL LINE |
| 4 | 18088392 | CLIP Ø16/25 MM |
| 5 | 16605824 | HEXAGON BOLT M8X35 MM |
| 6 | 8111456 | PIPE SOCKET |
| 7 | 8024459 | OIL HOSE |
| 8 | 503113365 | PIPE SOCKET |
| 9 | 17089574 | WASHER Ø8X16 MM |
| 10 | 17816014 | SPACING BAR Ø8,5X18X5 MM |
| 11 | 17037925 | HEXAGON NUT M8X1,25 |
