GMNEF115M.A511

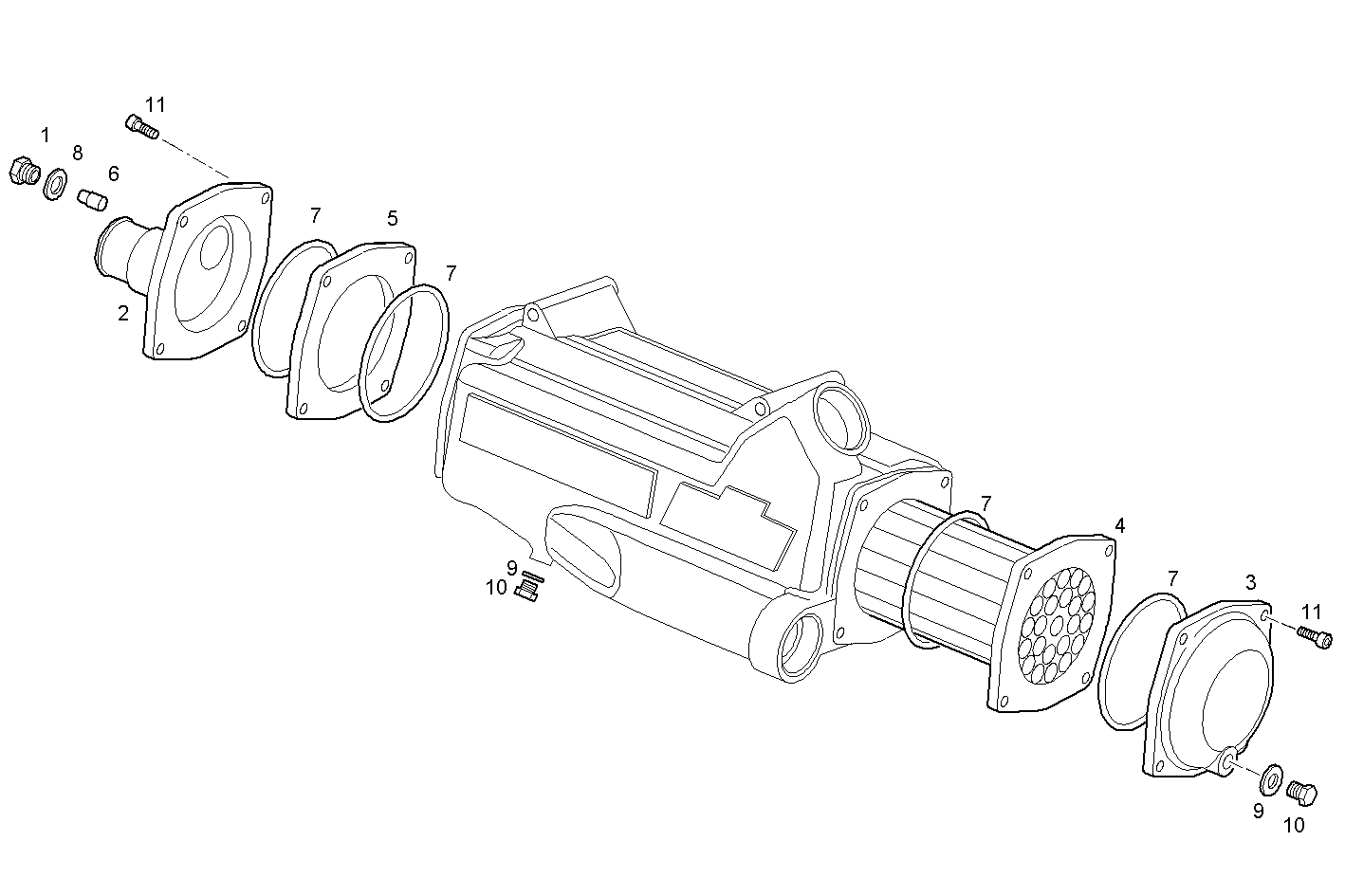

3371.000 FRESH WATER - SEA WATER HEAT EXCHANGER (COMPONENTS)
| Item | Part number | Description |
|---|---|---|
| 1 | 4917793 | PLUG M18 |
| 2 | 8032520 | COVER |
| 3 | 8032521 | COVER |
| 4 | 8032522 | TUBE STACK |
| 5 | 8104374 | GASKET |
| 6 | 8105277 | SACRIFICAL ANODE Ø14 MM |
| 7 | 8032524 | O-RING |
| 8 | 4858610 | WASHER Ø18X24 MM SP=1,5 MM |
| 9 | 10284460 | SEAL GASKET Ø10X16 MM |
| 10 | 93162012 | THREADED PLUG M10X1,25 |
| 11 | 16690924 | CYLIND-HEAD SCREW M8X40 MM |
