GMNEF60M.A510

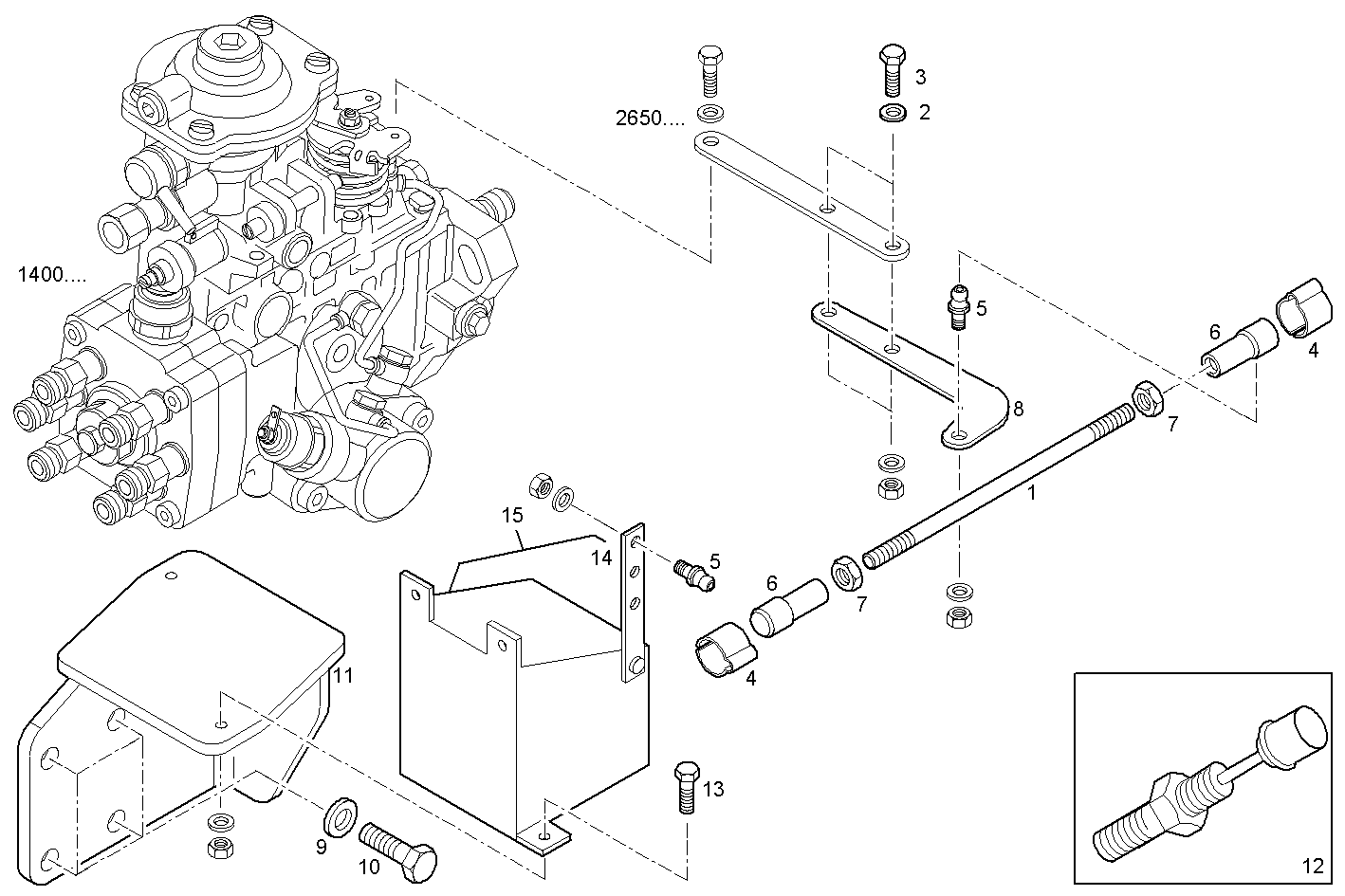

2600.016 ELECTRONIC SPEED GOVERNOR
Item | Part number | Description |
---|---|---|
1 | 503114904 | TIE ROD |
2 | 17088474 | WASHER Ø6X12 MM |
3 | 16603525 | SCREW M6X12 MM |
4 | 17722176 | CLIP |
5 | 18008411 | PIN M6 |
6 | 17721111 | BALL HEAD |
7 | 17037821 | HEXAGON NUT M6X1 |
8 | 8026302 | ACCELERATOR PEDAL |
9 | 17091074 | WASHER Ø12X24X2,8 MM |
10 | 16610124 | HEXAGON BOLT M12X40 MM |
11 | 503114900 | SUPPORT |
12 | 8018673 | PICK-UP |
13 | 16673635 | HEXAGON BOLT M8X1.25X20 |
14 | 8031536 | LEVER |
15 | 8021744 | ENGINE ACTUATOR ASSY |
