GMNEF60M.A510

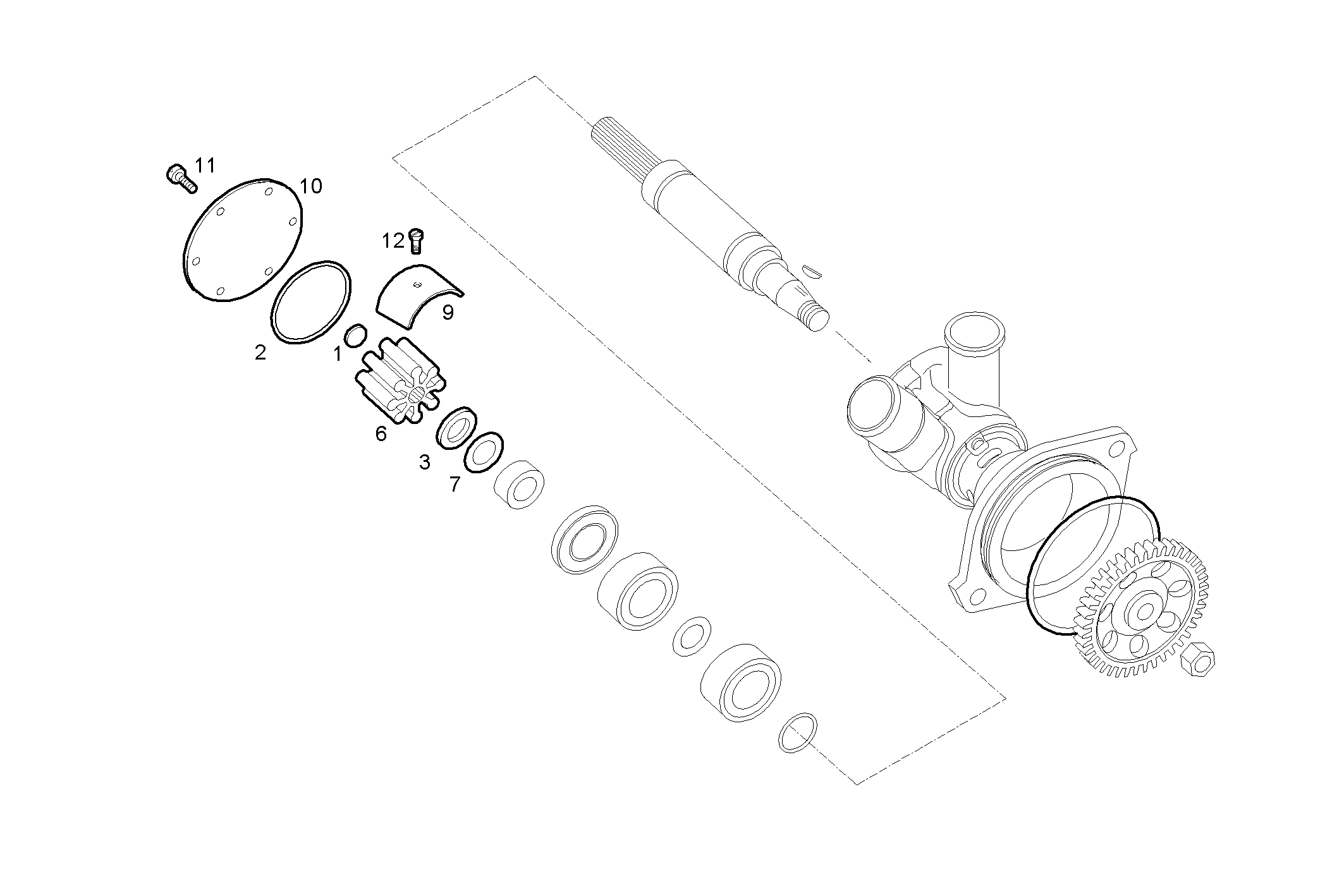

3381.006 SEA WATER PUMP (COMPONENTS) - JABSCO
Item | Part number | Description |
---|---|---|
1 | 4914943 | RUBBER GASKET |
2 | 8032539 | O-RING |
3 | 4914941 | WASHER |
4 | 8112168 | GASKET |
5 | 8112171 | WASHER |
6 | 8044280 | SEA WATER PUMP IMPELL. |
7 | 4914953 | CIRCLIP |
8 | 8018002 | KEY |
9 | 8097579 | RETAINING CAM |
10 | 8097587 | COVER |
11 | 8097586 | HEXAGON BOLT |
12 | 8097588 | SCREW |
