GMNEF60M.A511

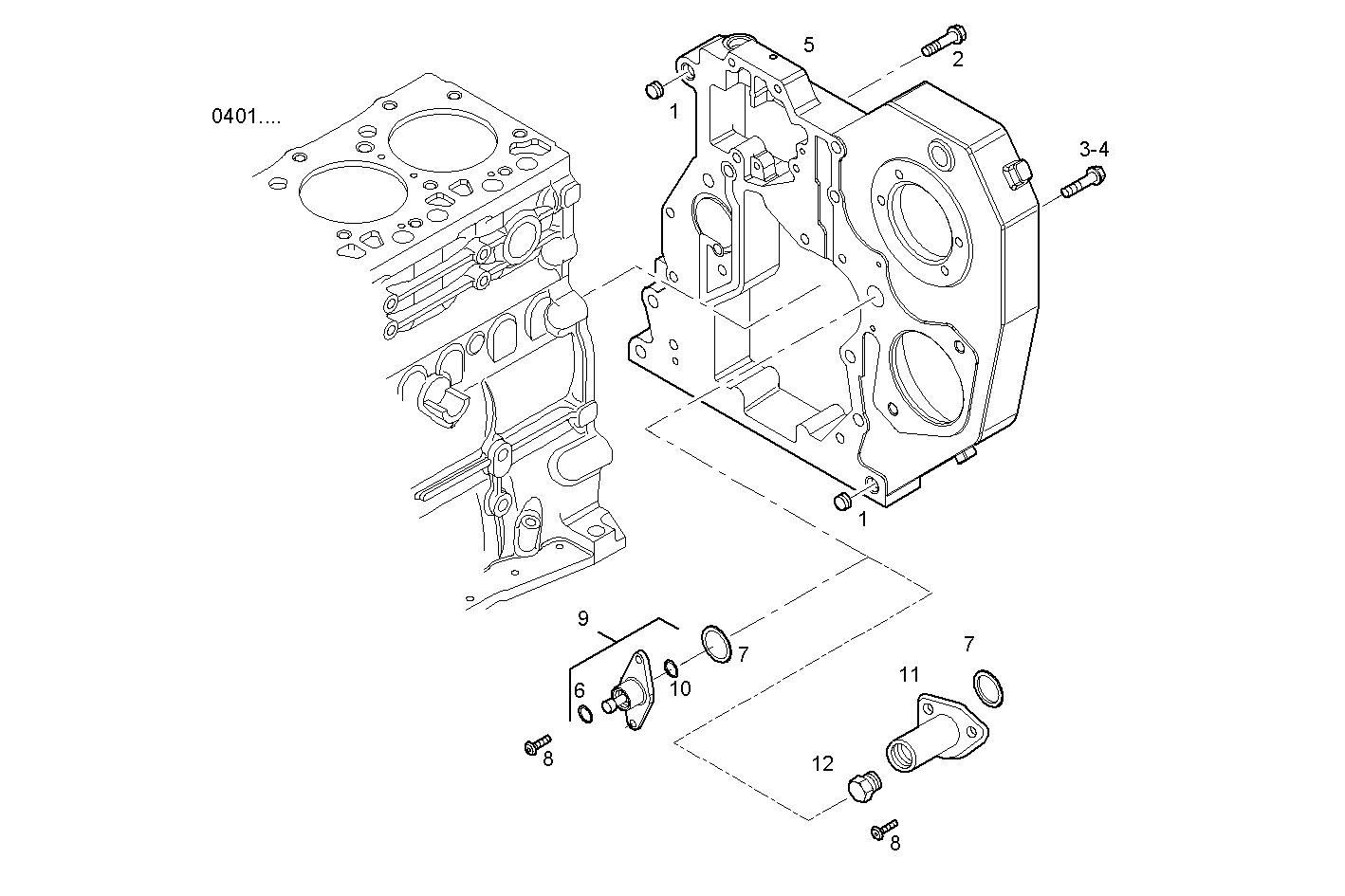

0432.019 REAR C.CASE COVER
Item | Part number | Description |
---|---|---|
1 | 4899026 | DOWEL PIN |
2 | 4899091 | HEXAGON BOLT |
3 | 4899093 | HEXAGON BOLT |
4 | 4899073 | HEXAGON BOLT |
5 | 504111048 | TIMINGGEAR HOUSIN |
6 | 504079852 | SPRING LOCKWASHER [FROM # 161405] |
7 | 17278780 | O-RING [FROM # 161405] |
8 | 4895355 | SHEAR SCREW M5X17 MM |
9 | 504074001 | LOCKING PLATE ASSY [FROM # 161405] |
10 | 17278090 | O-RING [FROM # 161405] |
11 | 504170787 | LOCKING PLATE [FROM # 295152] |
12 | 16882515 | PLUG [FROM # 295152] |
