GMNEF60M.A511

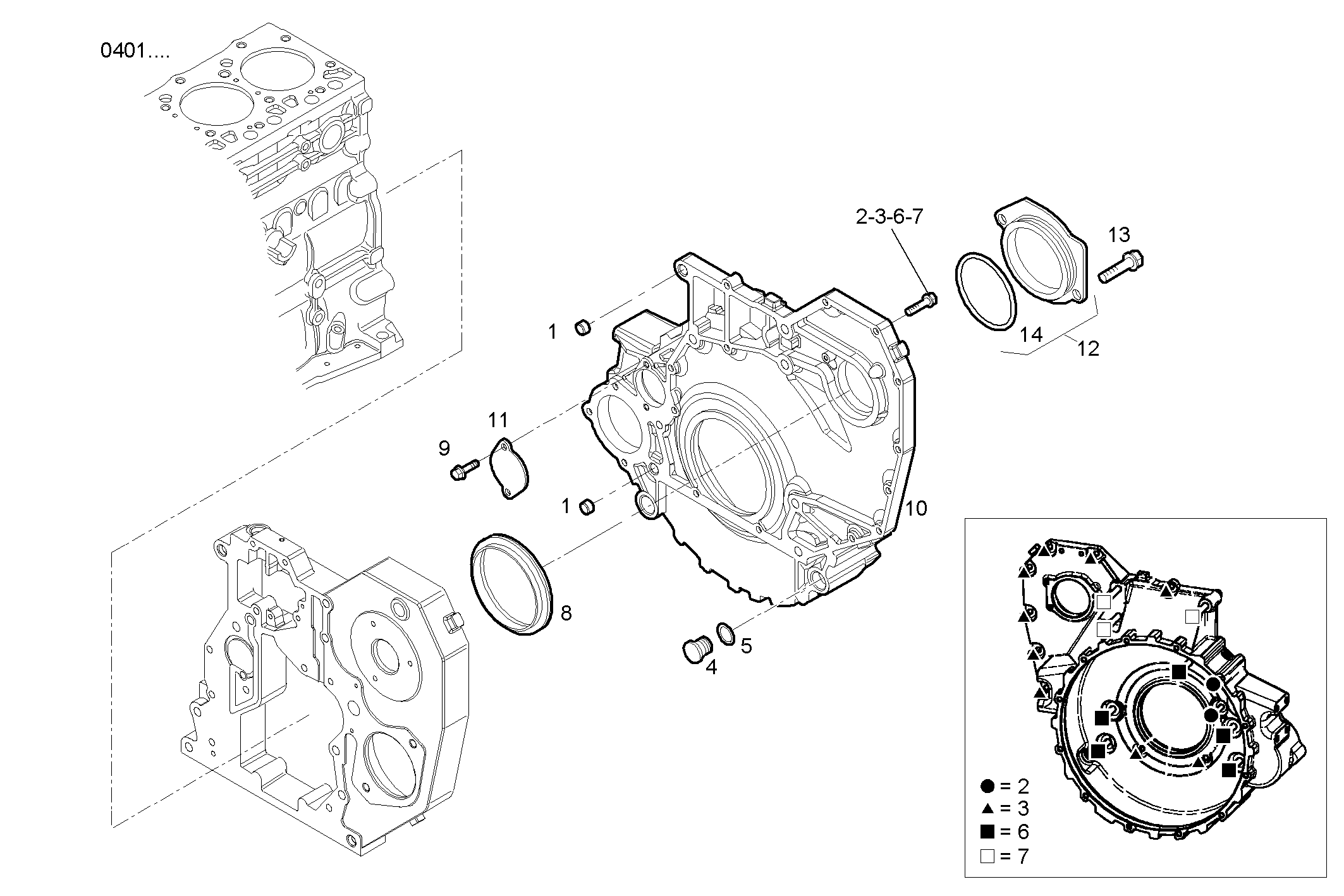

0435.043 FLYWHEEL HOUSING
| Item | Part number | Description |
|---|---|---|
| 1 | 4899026 | DOWEL PIN |
| 2 | 4899109 | HEXAGON BOLT M10X1,5X80 MM |
| 3 | 4892915 | HEXAGON BOLT M10X1,5X40 MM |
| 4 | 4895378 | PLUG Ø29 MM |
| 5 | 4895379 | O-RING |
| 6 | 4899076 | HEXAGON BOLT M12X80 MM |
| 7 | 4899074 | HEXAGON BOLT |
| 8 | 4890833 | SHAFT SEAL |
| 9 | 4899068 | HEXAGON BOLT M8X17 MM |
| 10 | 503115411 | FLYWHEEL HOUSING |
| 11 | 4895155 | COVER |
| 12 | 504115364 | COVER ASSY |
| 13 | 16673635 | HEXAGON BOLT M8X1.25X20 |
| 14 | 17285481 | O-RING Ø75,87 MM SP=2,62 MM |
