GMNEF60M.A511

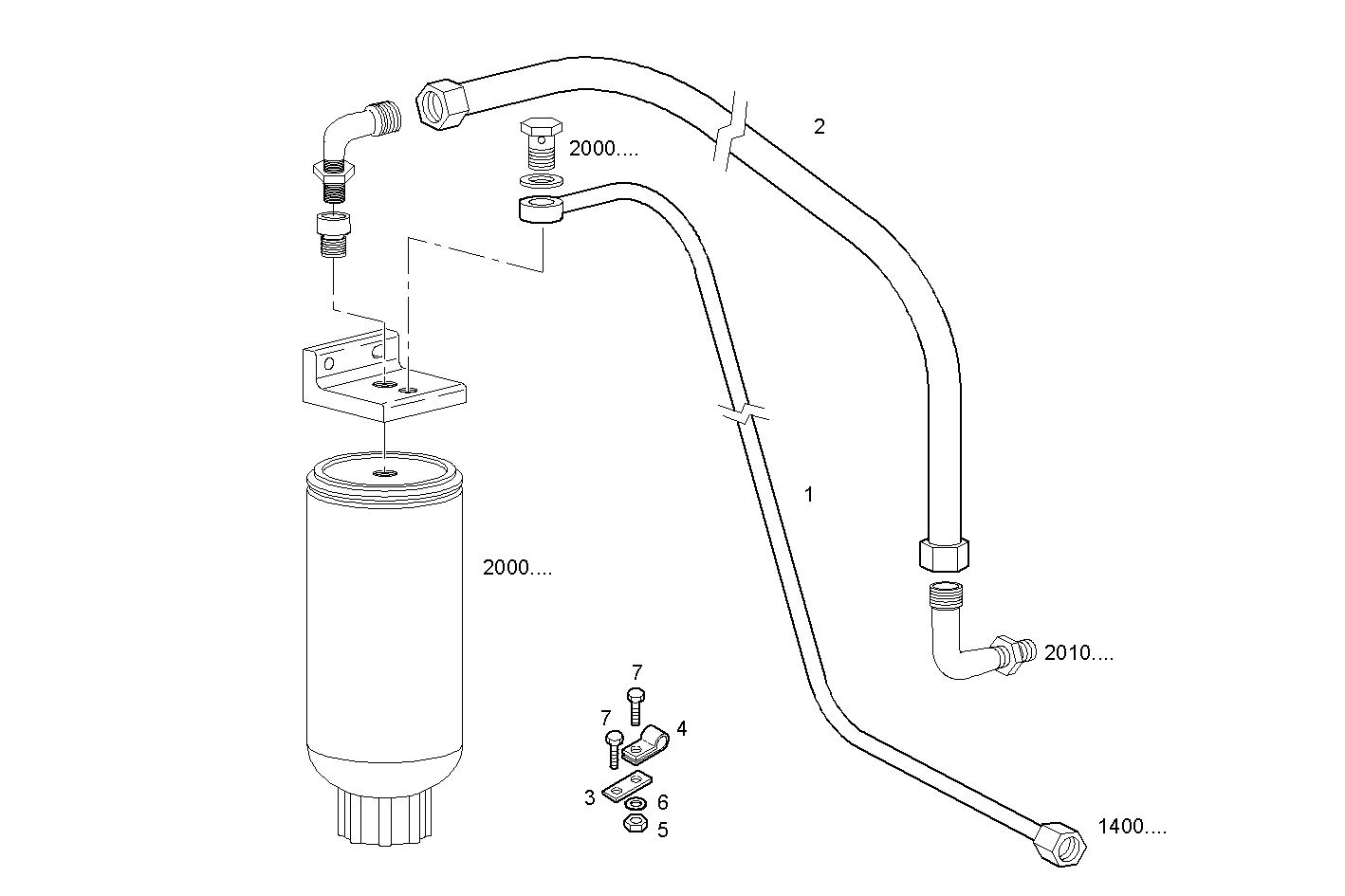

2030.251 FUEL LINES

Iveco/FPT FUEL LINES

Item Part number Description
1 8039243 FUEL LINE
2 8039242 FUEL LINE
3 4929652 RETAINER
4 10450090 PIPE CLIP Ø8 MM
5 17037925 HEXAGON NUT M8X1,25
6 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
7 16605424 SCREW M8X16 MM (8.8)
