GMNEF60M.A511

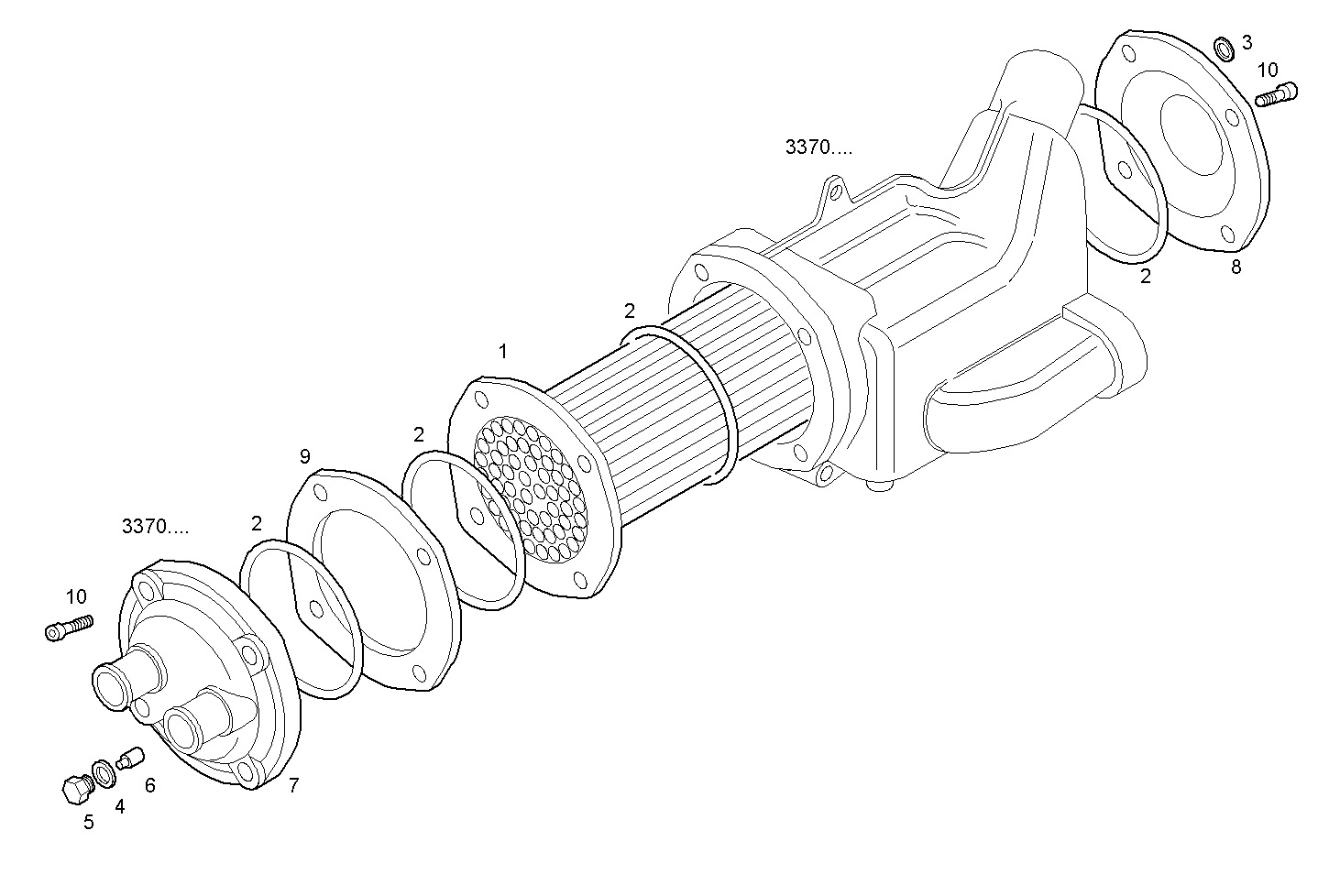

3371.002 FRESH WATER - SEA WATER HEAT EXCHANGER (COMPONENTS)
Item | Part number | Description |
---|---|---|
1 | 8036288 | TUBE STACK |
2 | 8032524 | O-RING |
3 | 10284460 | SEAL GASKET Ø10X16 MM |
4 | 4858610 | WASHER Ø18X24 MM SP=1,5 MM |
5 | 4917793 | PLUG M18 |
6 | 8105277 | SACRIFICAL ANODE Ø14 MM |
7 | 8032520 | COVER |
8 | 8032521 | COVER |
9 | 8032523 | SPACING BAR |
10 | 16690924 | CYLIND-HEAD SCREW M8X40 MM |
