GMNEF80M.A501

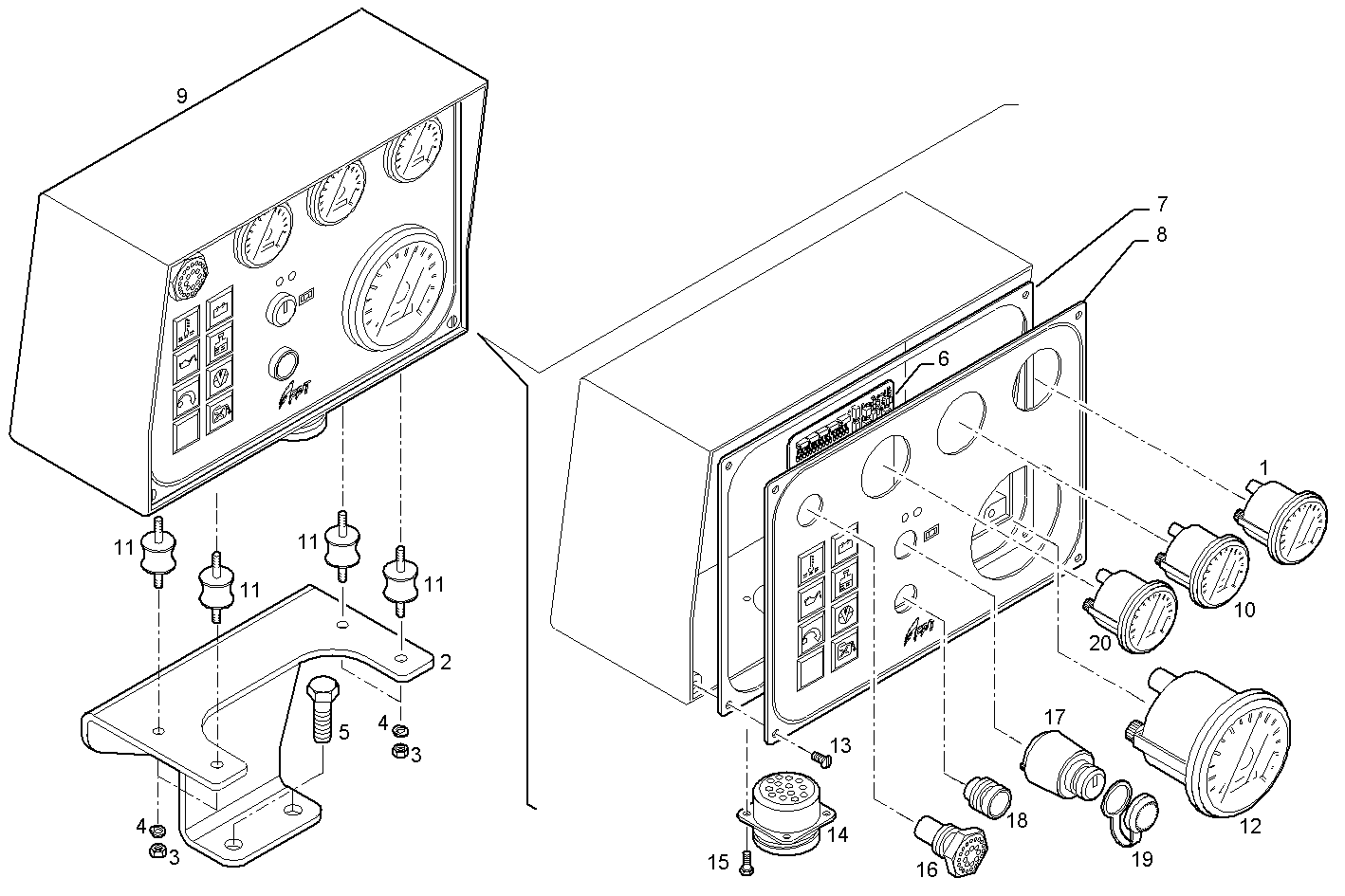

5630.003 PANEL WITH ELECTRICAL INSTRUMENTS
| Item | Part number | Description |
|---|---|---|
| 1 | 8030616 | VOLTMETER |
| 2 | 503114935 | SUPPORT |
| 3 | 17037821 | HEXAGON NUT M6X1 |
| 4 | 17088974 | SPRING WASHER Ø6X18X1,4 MM |
| 5 | 16587125 | HEXAGON BOLT M10X25 MM |
| 6 | 8029549 | ELECTRONIC CARD |
| 7 | 8100350 | GASKET |
| 8 | 8110225 | PLATE |
| 9 | 8051632 | CONTROL BOARD ASSY ASSY 24V |
| 10 | 8030614 | THERMOMETER |
| 11 | 4910949 | RUBBER LUG |
| 12 | 8030617 | REVOLUTION COUNTER |
| 13 | 8103662 | SCREW M4X10 |
| 14 | 8105629 | CONNECTION |
| 15 | 17129714 | SCREW |
| 16 | 8110230 | ACOUSTIC HORN |
| 17 | 8103708 | SWITCH |
| 18 | 8025024 | PUSH BUTTON STOP |
| 19 | 8110226 | CAP |
| 20 | 8030615 | PRESSURE GAUGE 10 BAR |
