GMNEF80M.A501

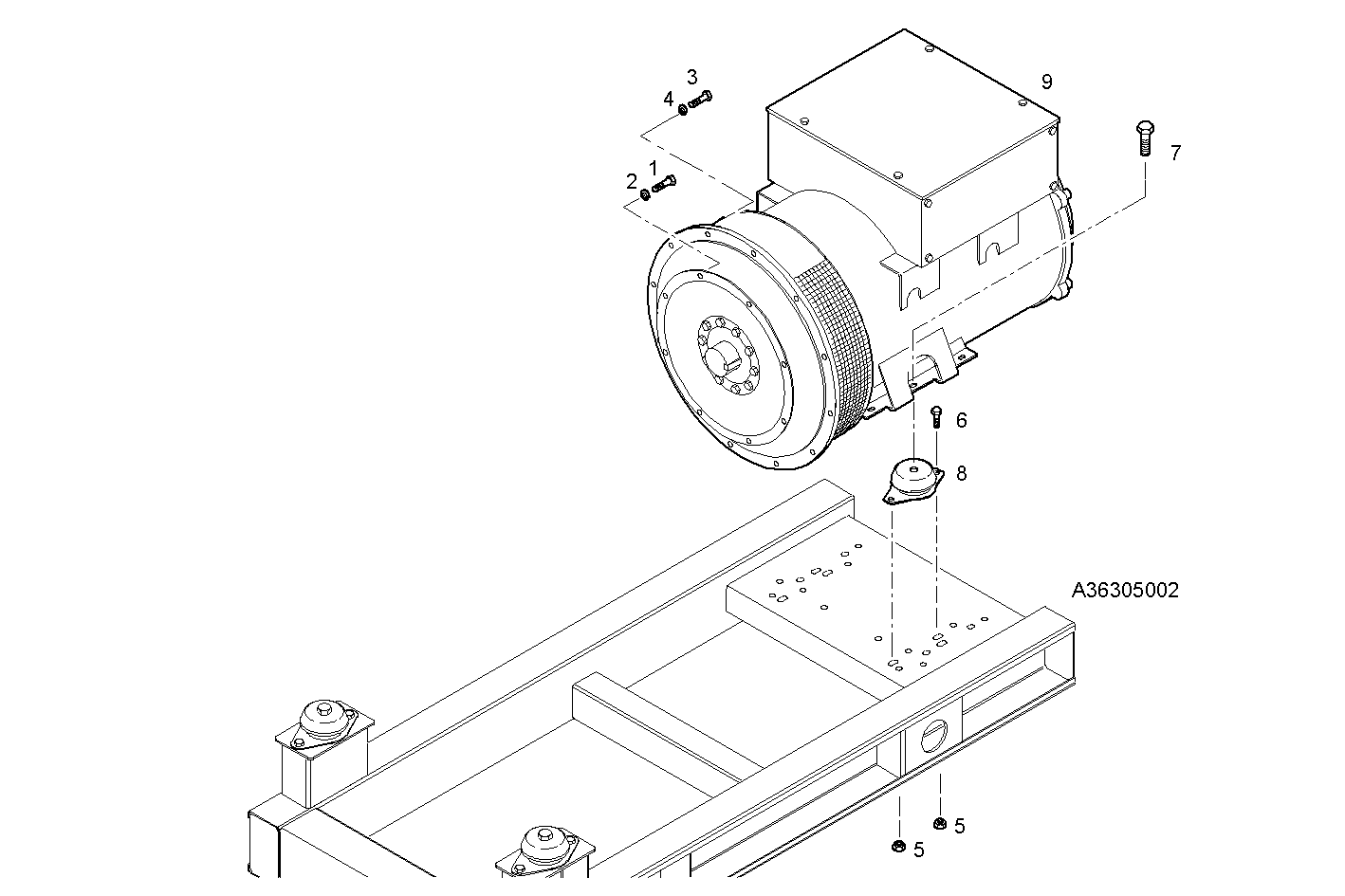

A37215037 ELECTRIC MACHINE - MARELLI
| Item | Part number | Description |
|---|---|---|
| 1 | 16619124 | SCREW M10X22 MM |
| 2 | 17494934 | WASHER Ø10X18,1X2,2 MM |
| 3 | 16607924 | HEXAGON BOLT M10X1,5X40 MM |
| 4 | 17090174 | SPRING WASHER Ø10X20 MM |
| 5 | 17044921 | HEXAGON NUT M12 |
| 6 | 16677735 | HEXAGON BOLT M12X25 MM |
| 7 | 16683535 | HEXAGON BOLT M16X90 MM |
| 8 | 503112691 | RUBBER LUG |
| 9 | 503115057 | ELECTRIC MACHINE |
