GS8031i05.05A601

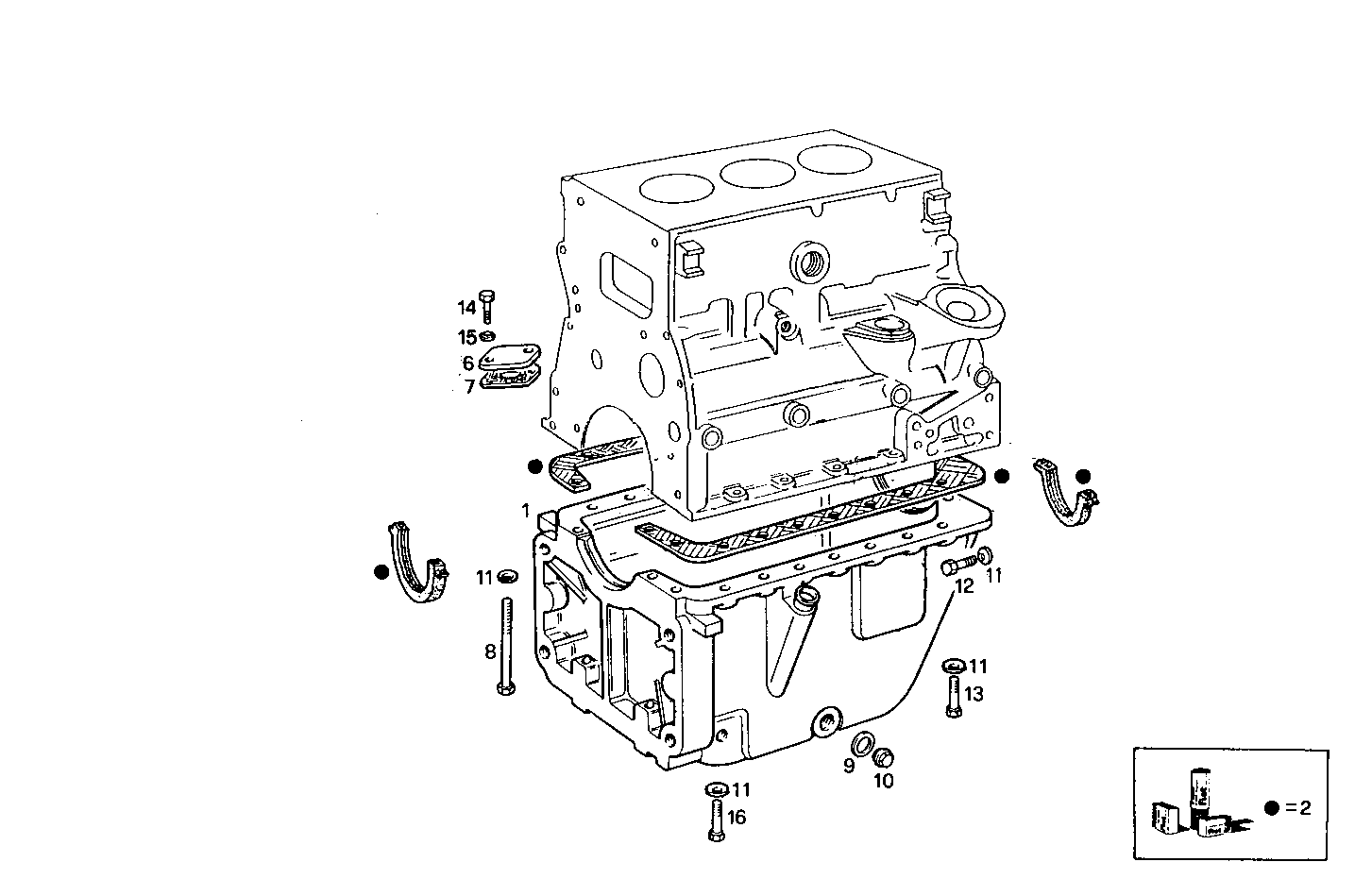

0420.033 OIL SUMP
Item | Part number | Description |
---|---|---|
1 | 4718675 | OIL SUMP ASSY |
2 | 8090692 | KIT-OILSUMP GASKET |
6 | 4793218 | COVER |
7 | 98401047 | GASKET |
8 | 4607933 | SCREW M10X1,25X262 MM |
9 | 10263460 | WASHER Ø22X28X1,5 MM |
10 | 16993411 | THREADED PLUG M22X1,5 |
11 | 17090174 | SPRING WASHER Ø10X20 MM |
12 | 11306924 | HEXAGON BOLT M10X1,25X30 MM |
13 | 11307024 | SCREW M10X1,25X40 MM |
14 | 16605524 | HEXAGON BOLT M8X20 MM |
15 | 17089574 | WASHER Ø8X16 MM |
16 | 4686762 | HEXAGON BOLT M10X1,25X30 |
