GS8031i05.05A603

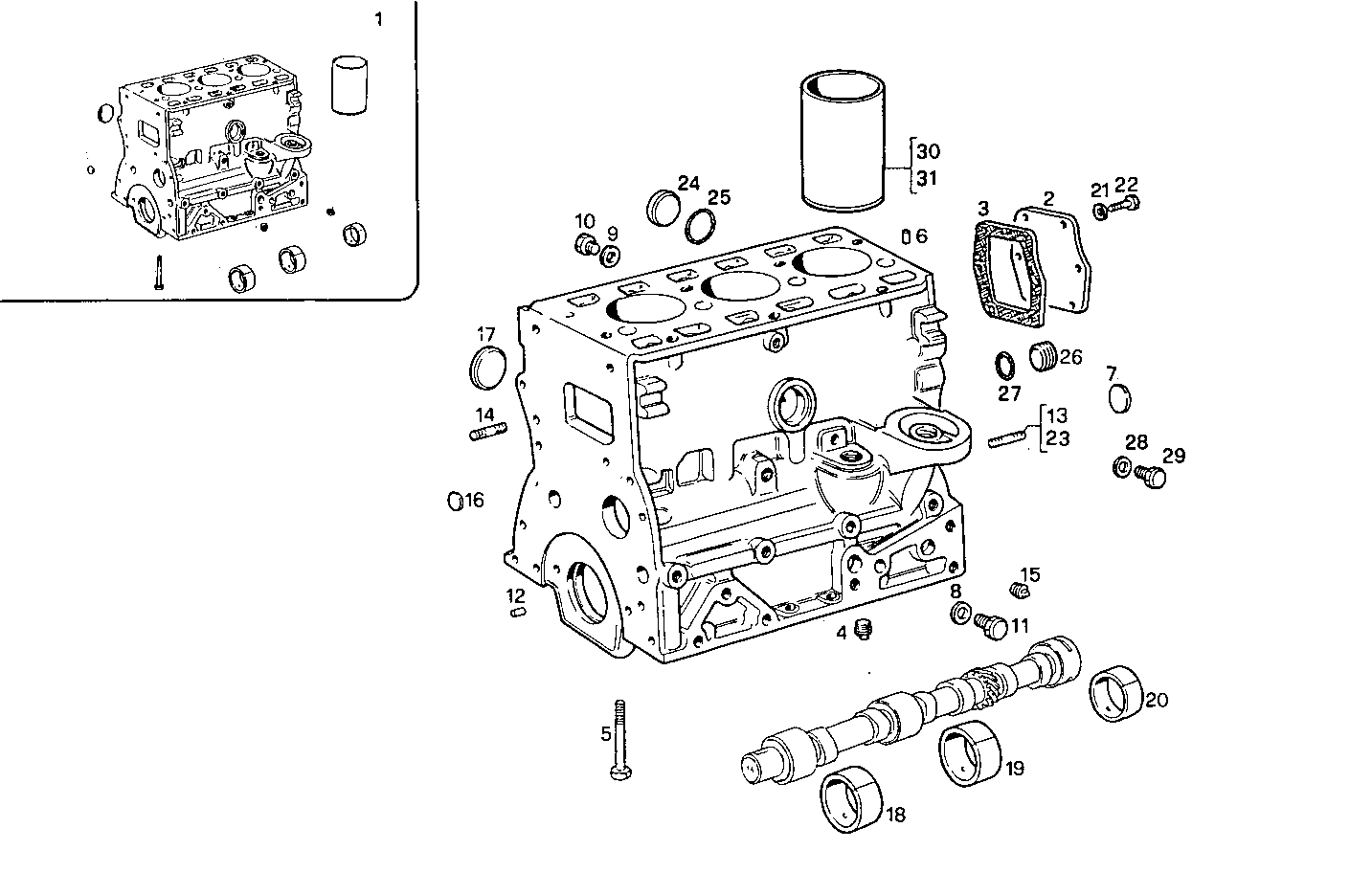

0400.001 CRANKCASE

Iveco/FPT CRANKCASE

Item Part number Description
1 98445212 CRANKCASE ASSY
2 4653282 REAR C.CASE COVER
3 4849993 FLAT ENGINE GASKET
4 4824539 THREADED PLUG M16X1,5
5 4792169 SCREW
6 4846850 DOWEL PIN
7 10160701 LOCK PLUG Ø60 MM [up to ...]
8 10257460 SEAL GASKET Ø20X26 MM SP=1,5 MM [up to ...]
9 10298460 SEAL GASKET Ø12X18 MM SP=1,5 MM
10 16992211 THREADED PLUG M12X1,5
11 10305071 LOCK PLUG M20X1,5 [up to ...]
12 10839610 DOWEL PIN Ø8 MM
13 11797821 STUD M14X20X55 [up to ...]
14 13517824 STUD M8x12x60 MM
15 14326001 THREADED PLUG M10X1,25
16 14328501 LOCK PLUG Ø16 MM
17 16991170 LOCK PLUG Ø36 MM
18 4603449 CAMSHAFT BEARING MOGUL
19 4603450 CAMSHAFT BEARING CLEVITE
20 4603451 CAMSHAFT BEARING MOGUL
21 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
22 16043324 HEXAGON BOLT M8X18 MM
23 16735724 STUD M14X20X55 [from ...]
24 4665029 LOCK PLUG M42X1,5
25 10265460 SEAL GASKET Ø42X49 MM SP=1,5 MM
26 98412737 LOCK PLUG [from ...]
27 17284481 O-RING Ø58,4 MM SP=2,6 MM [from ...]
28 16508460 WASHER 22x27x1,5
29 98415314 THREADED PLUG M22X1,5
30 4770623 CYLINDER LINER
31 4770624 CYLINDERLINER +0.2
