GS8041i05.55

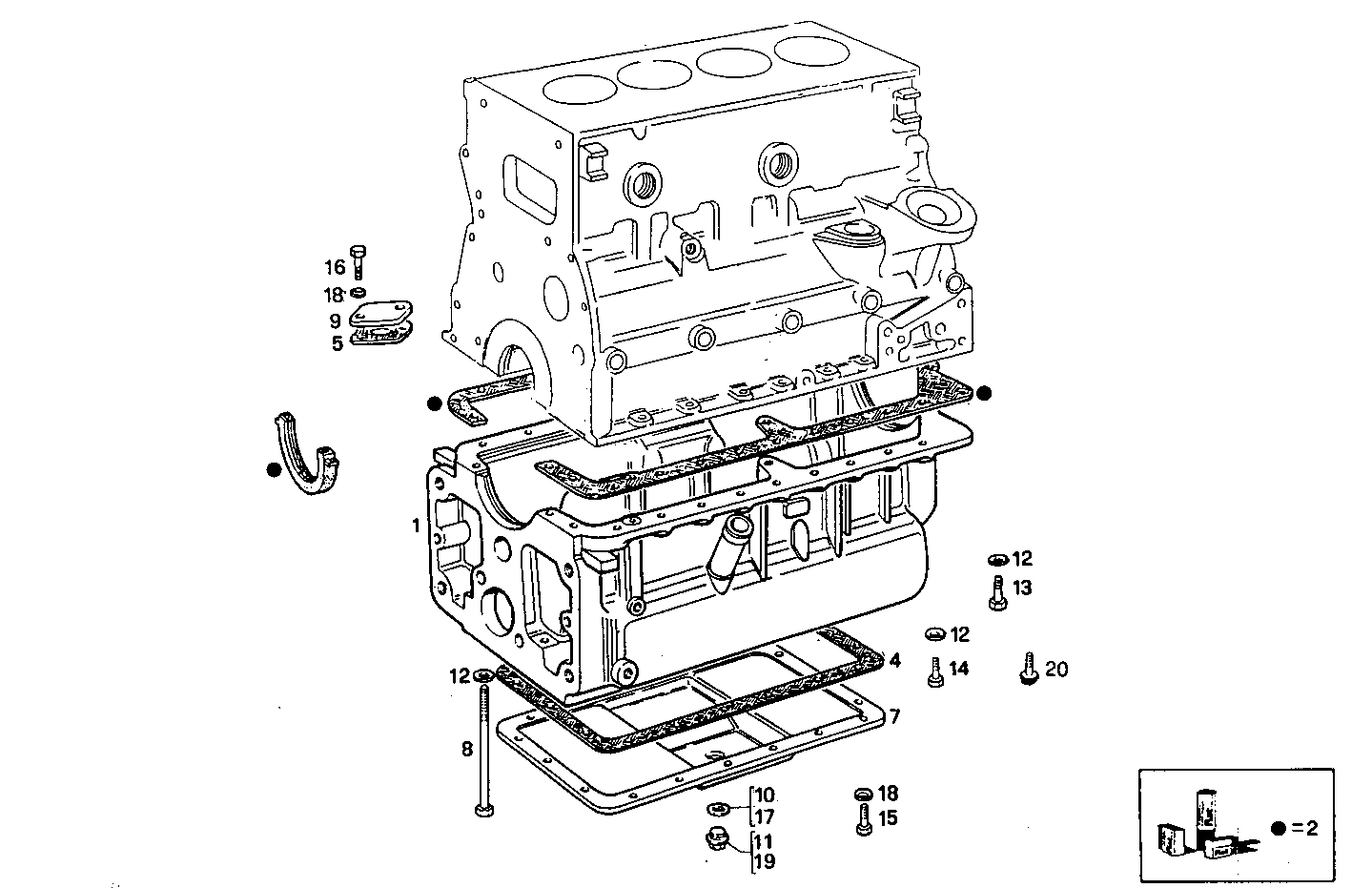

0420.035 OIL SUMP
Item | Part number | Description |
---|---|---|
1 | 4838535 | OIL SUMP ASSY |
2 | 1940012 | KIT-OILSUMP GASKET |
4 | 98427452 | FLAT ENGINE GASKET |
5 | 98401047 | GASKET |
7 | 98413424 | COVER |
8 | 4607933 | SCREW M10X1,25X262 MM |
9 | 4793218 | COVER |
10 | 10263460 | WASHER Ø22X28X1,5 MM |
11 | 4847102 | THREADED PLUG |
12 | 10516879 | WASHER Ø10X18X2 MM |
13 | 11306924 | HEXAGON BOLT M10X1,25X30 MM |
14 | 11307024 | SCREW M10X1,25X40 MM |
15 | 16043324 | HEXAGON BOLT M8X18 MM |
16 | 16605524 | HEXAGON BOLT M8X20 MM |
17 | 17282181 | O-RING Ø21,8 MM SP=2,6 MM |
18 | 11193874 | WASHER Ø8X16 MM |
19 | 10305171 | PLUG M22X1,5 |
20 | 4686762 | HEXAGON BOLT M10X1,25X30 |
