GS8041i05.55

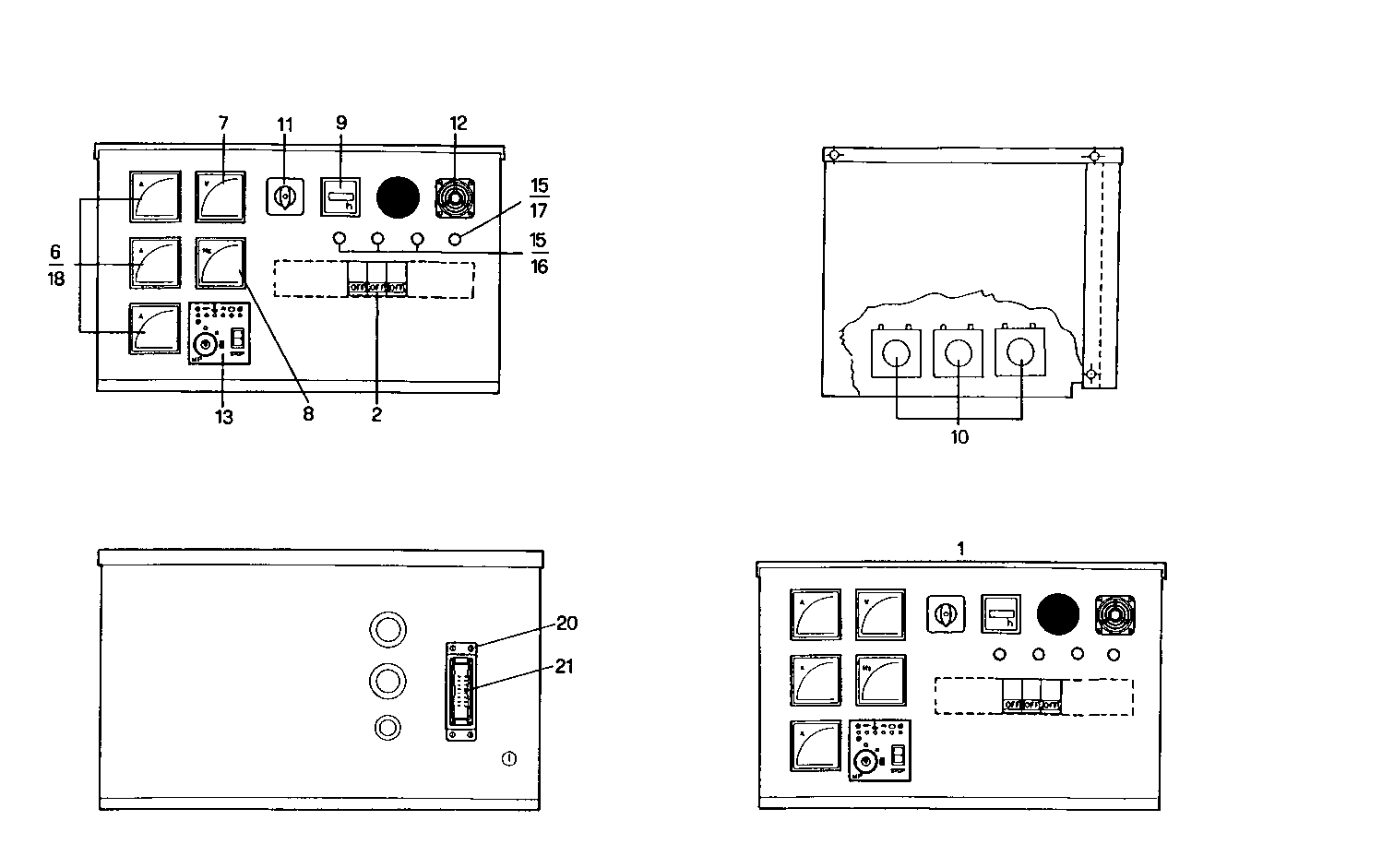

A60000930 MANUAL CONTROL BOARD [D 12-1996] [from12-1996]
Item | Part number | Description |
---|---|---|
1 | 8093153 | CONTROL BOARD ASSY ASSY |
2 | 8093261 | SWITCH |
6 | 8093259 | AMMETER |
7 | 8100665 | VOLTMETER |
8 | 8100632 | FREQUENCYMETER |
9 | 8090251 | HOURMETER |
10 | 8093262 | TRANSFORMATOR |
11 | 8104624 | SWITCH |
12 | 8107950 | ACOUSTIC HORN |
13 | 8092808 | ELECTR.CONTR.UNIT |
15 | 8105267 | FUSE BOX 2A |
16 | 8105268 | FUSE 2A |
17 | 8092812 | FUSE 20 A |
18 | 8093260 | STOP PLATE |
20 | 8092799 | CONNECTION |
21 | 8092809 | CONNECTION |
