GS8041i05.55A602

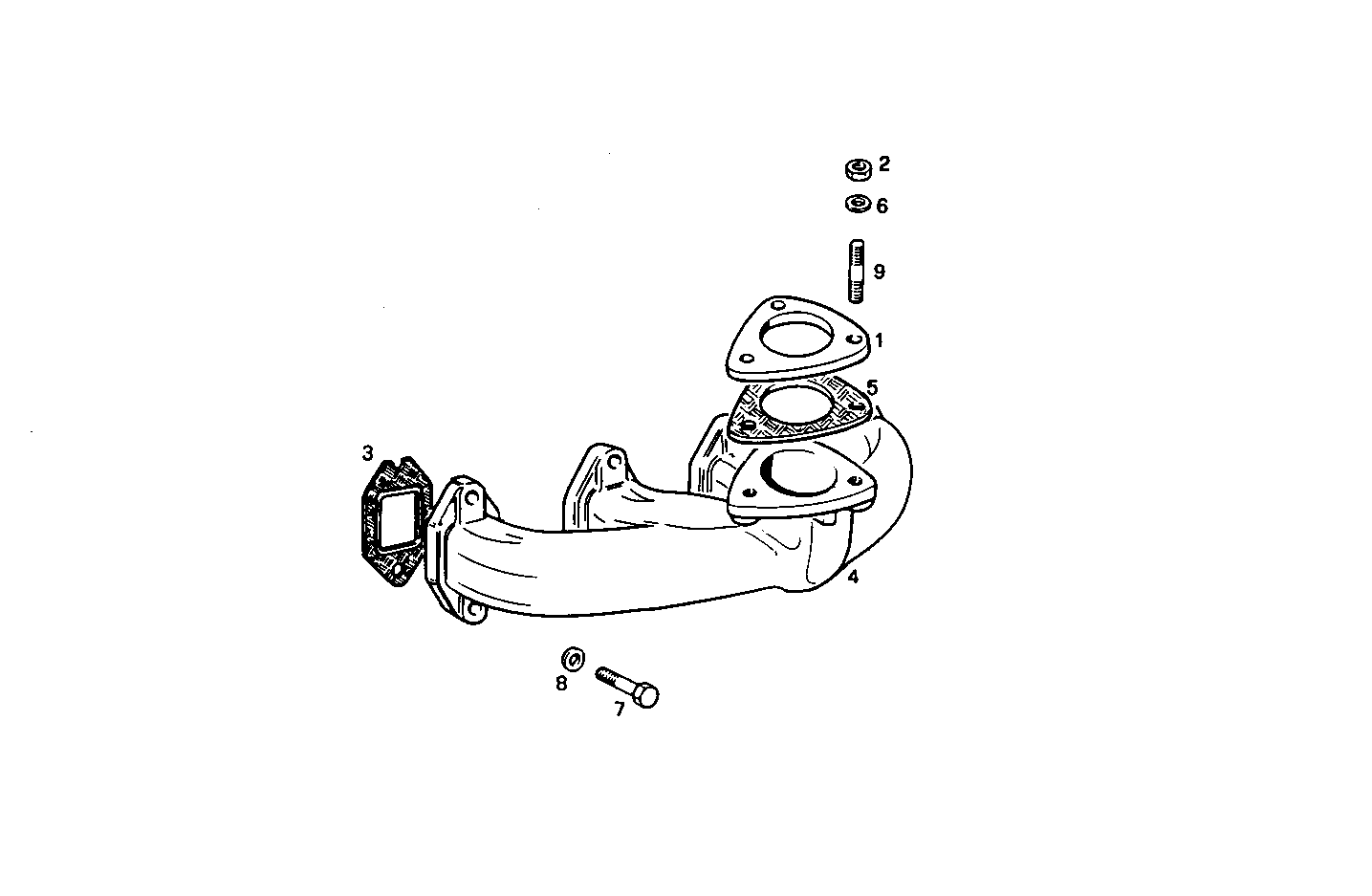

A06010002 EXHAUST MANIFOLD UPWARD OUTLET
Item | Part number | Description |
---|---|---|
1 | 596647 | FLANGE |
2 | 8010537 | NUT |
3 | 98489690 | EXH. MANIFOLD GKT |
4 | 4606570 | EXHAUST MANIFOLD |
5 | 8013210 | GASKET |
6 | 17494834 | WASHER Ø8 MM |
7 | 98488122 | SCREW M8X1,25X40 MM |
8 | 98488128 | WASHER Ø9 MM [up to ...] |
9 | 13543711 | STUD |
